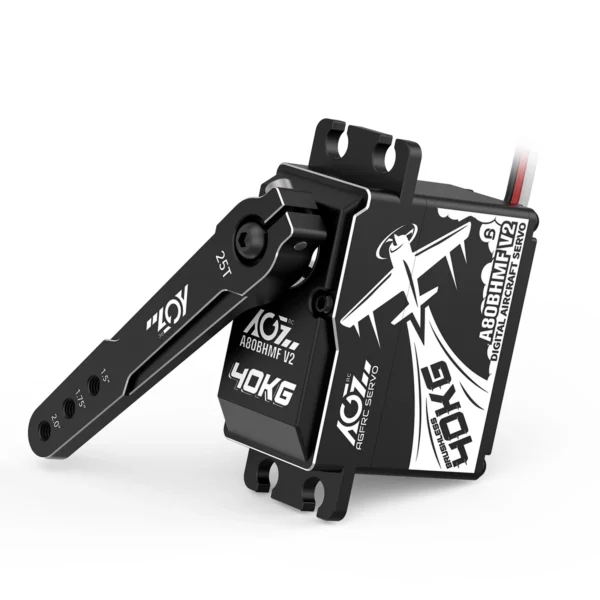

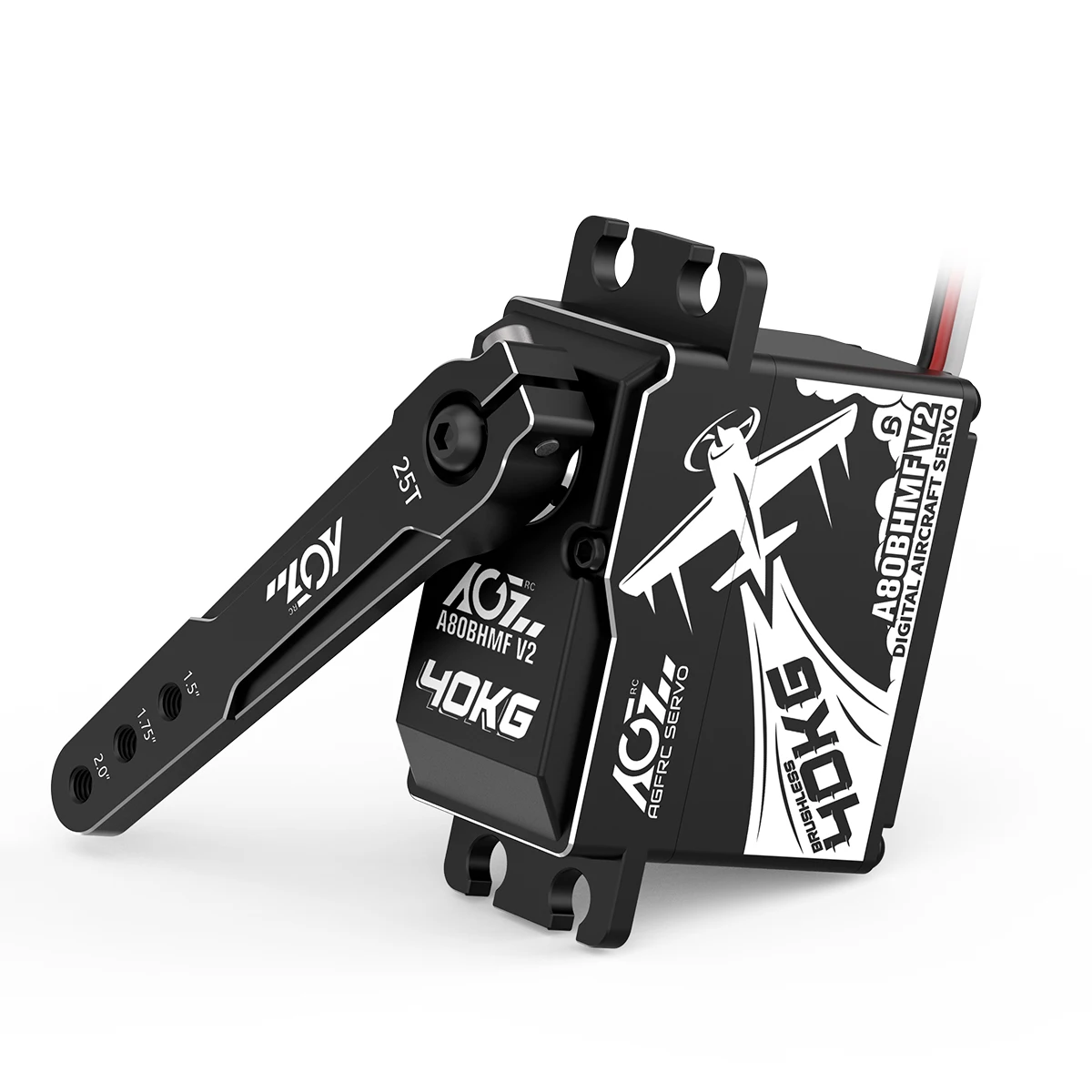

[A80BHMF V2 40kg Set1] AGFRC Aircraft Servo A80BHMF V2 40kg Programmable Steel Titanium Gear Digital Brushless Standard Servo For 30 200CC RC Airplane

AGFrc Aircraft Servo A80BHMF V2 40kg 0.085sec Speed Titanium Gear Programmable Brushless RC Servo For 30-200cc Airplane

AGFrc A80BHMF V2 is the fully new design 25T standard digital servo perfectly to fit the use of RC Aircraft and Planes applications. This servo uses our reliable patented steel gear and titanium gear train technology metal three ball bearings and brushless motor for super durability against heavy use. The all aluminum CNC solid housing structure enhances heat dissipation. Capable of 8.4V HV operation voltage and can output 40kg-cm ultra powerful torque and 0.085sec speed when it reach this voltage. The programmable function is available for parameter adjusting soft start and inversion optional setting to fit the higher flight requirements.

Feature:

Fully CNC Aluminium Housing

Quick Response Brushless Motor

Strength Metal Three Ball Bearings

Programmable 25T Spline Digital Servo

More Steadily Potentiometer Angle Sensor

High Precision Steel Gear And Titanium Gear

Ideal For 30-200cc Airplane fixed-wind Aircrafts etc.

Specification:

A80BHMF V2

Operating Voltage: 4.8-8.4V

Operating speed: 0.140 sec/ 60° @ 4.8V

Operating speed: 0.120 sec/60° @ 6.0V

Operating speed: 0.100 sec/60° @ 7.4V

Operating speed: 0.085 sec/60° @ 8.4V

Stall Torque: 27 kg-cm (375 oz-in) @ 4.8V

Stall Torque: 31 kg-cm (430 oz-in) @ 6.0V

Stall Torque: 36 kg-cm (500 oz-in) @ 7.4V

Stall Torque: 40 kg-cm (556 oz-in) @ 8.4V

Gear: Strength Steel + Titanium

Motor: Brushless

Size: 40*20*37.5mm (1.57 x 0.78 x 1.46 in)

Weight: 79g

Connector Wire: TYU 300mm / 22AWG
