Description

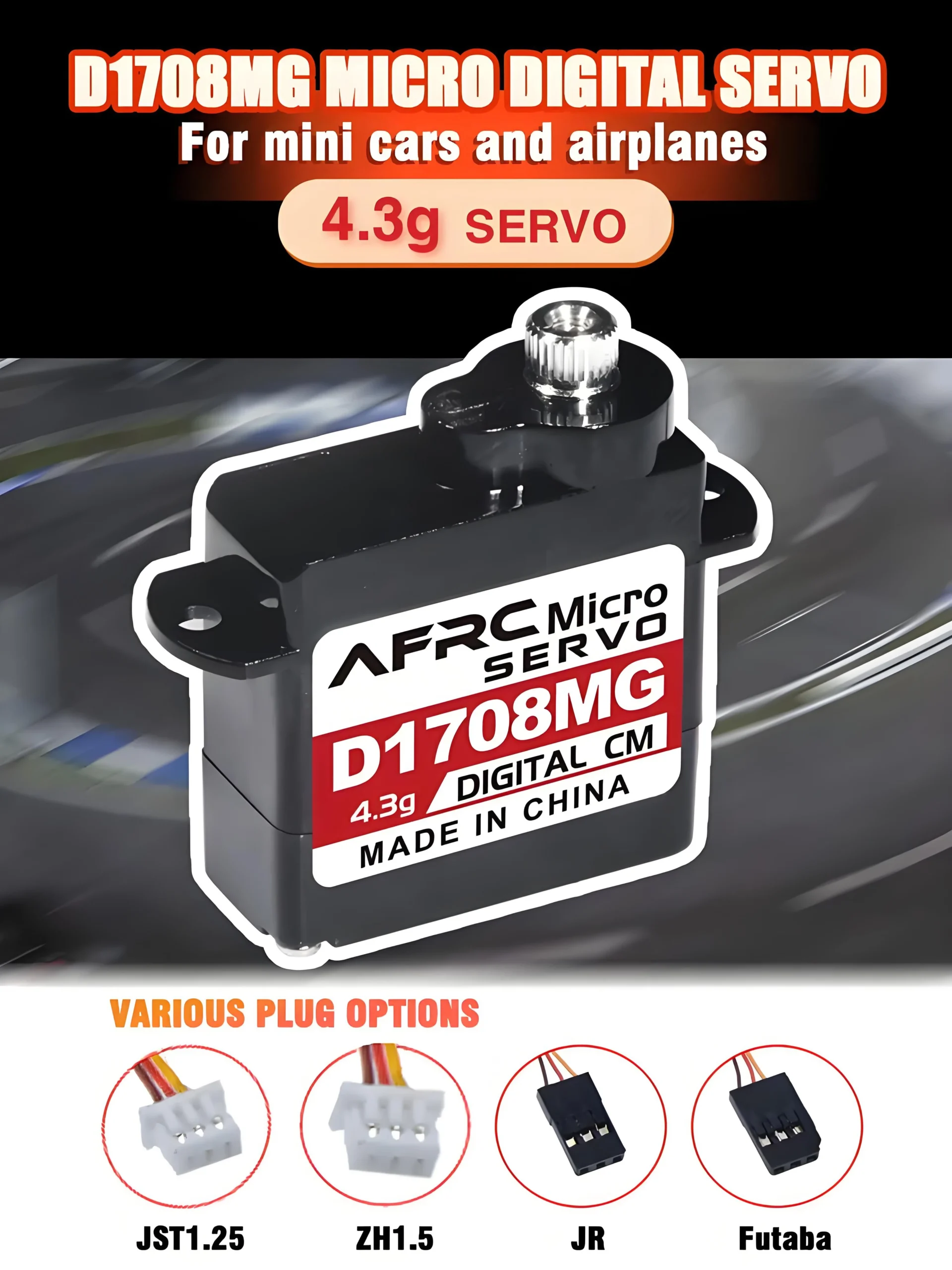

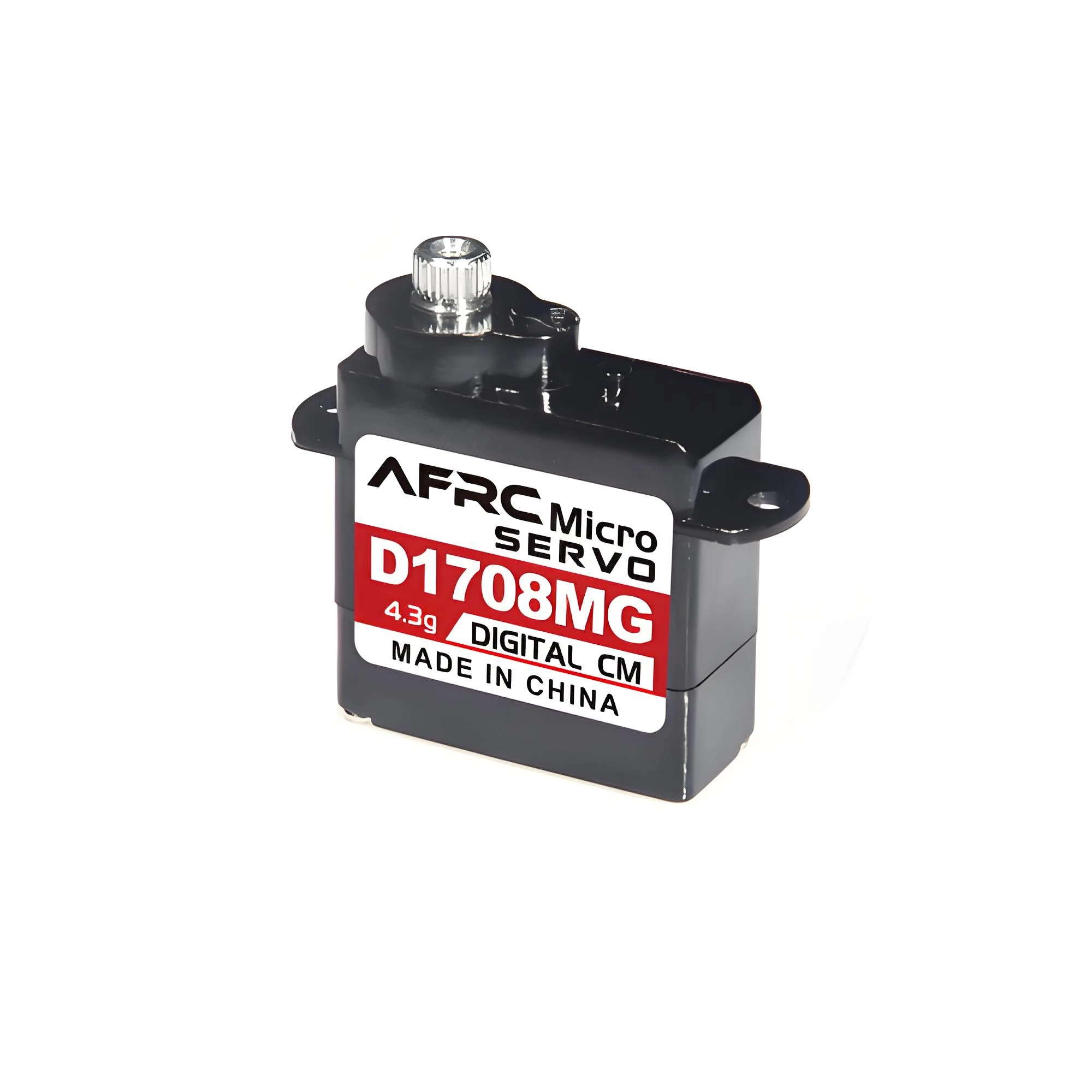

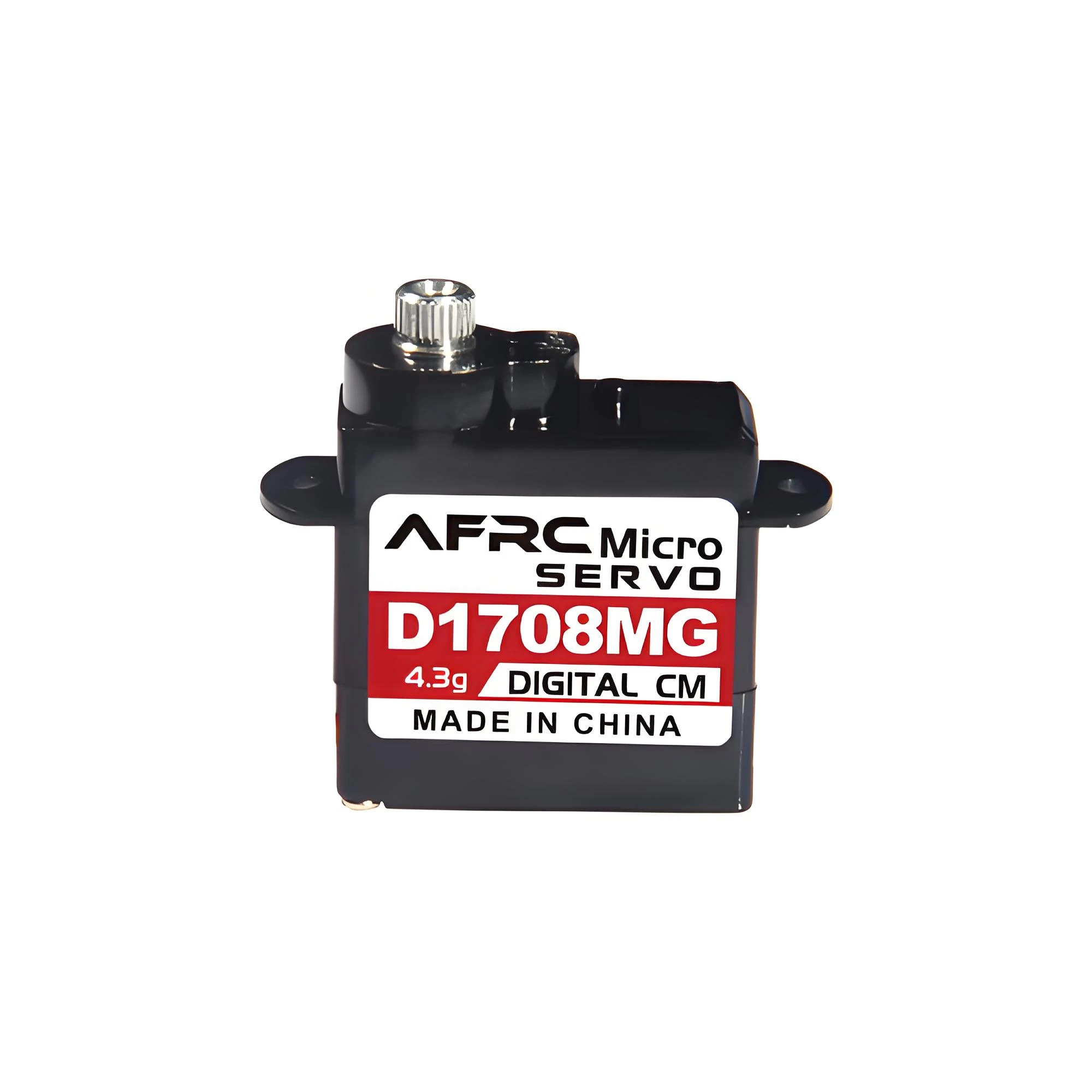

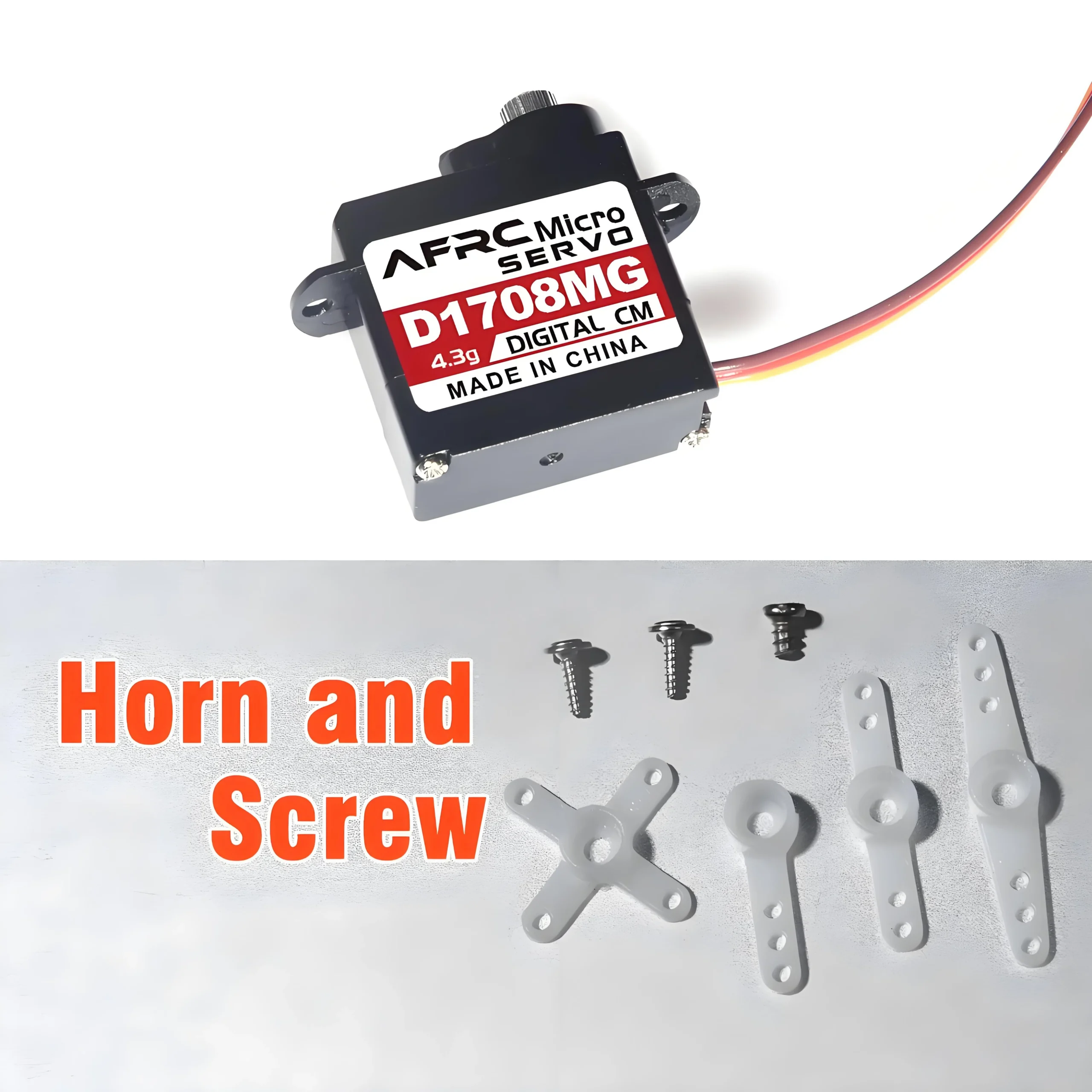

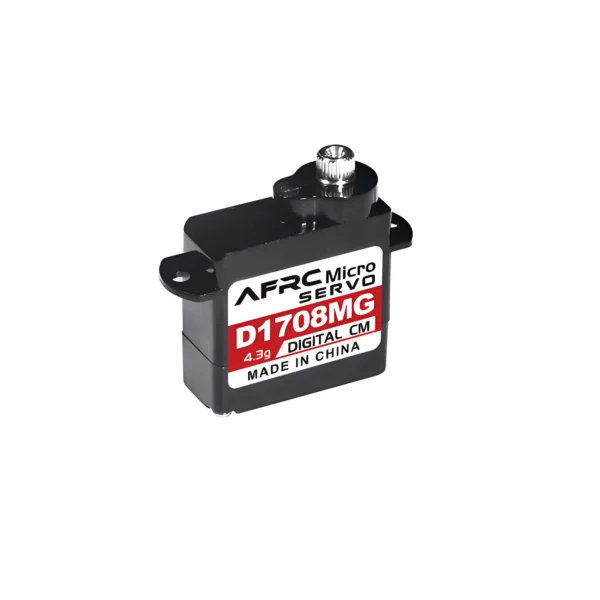

AFRC D1708MG Metal Gear 4.3g Micro Digital Servo
AFRC-D1708MG Metal Gear 4.3g 4PCS Micro Digital Servo
For RC mini cars and airplanes DIY assembly
_________________________________________________________________________________________________________________________
Features:
◆ Miniature and exquisite appearance design super light weight
◆ Adopting digital controller and coreless motor drive.
◆ Micro steering gear with large torque (0.85kg.cm); speed sensitive (0.075sec).
◆ Adopting digital controller and coreless motor drive.
◆ Micro steering gear with large torque (0.85kg.cm); speed sensitive (0.075sec).
_________________________________________________________________________________________________________________________
Description:
Model: D1708MG

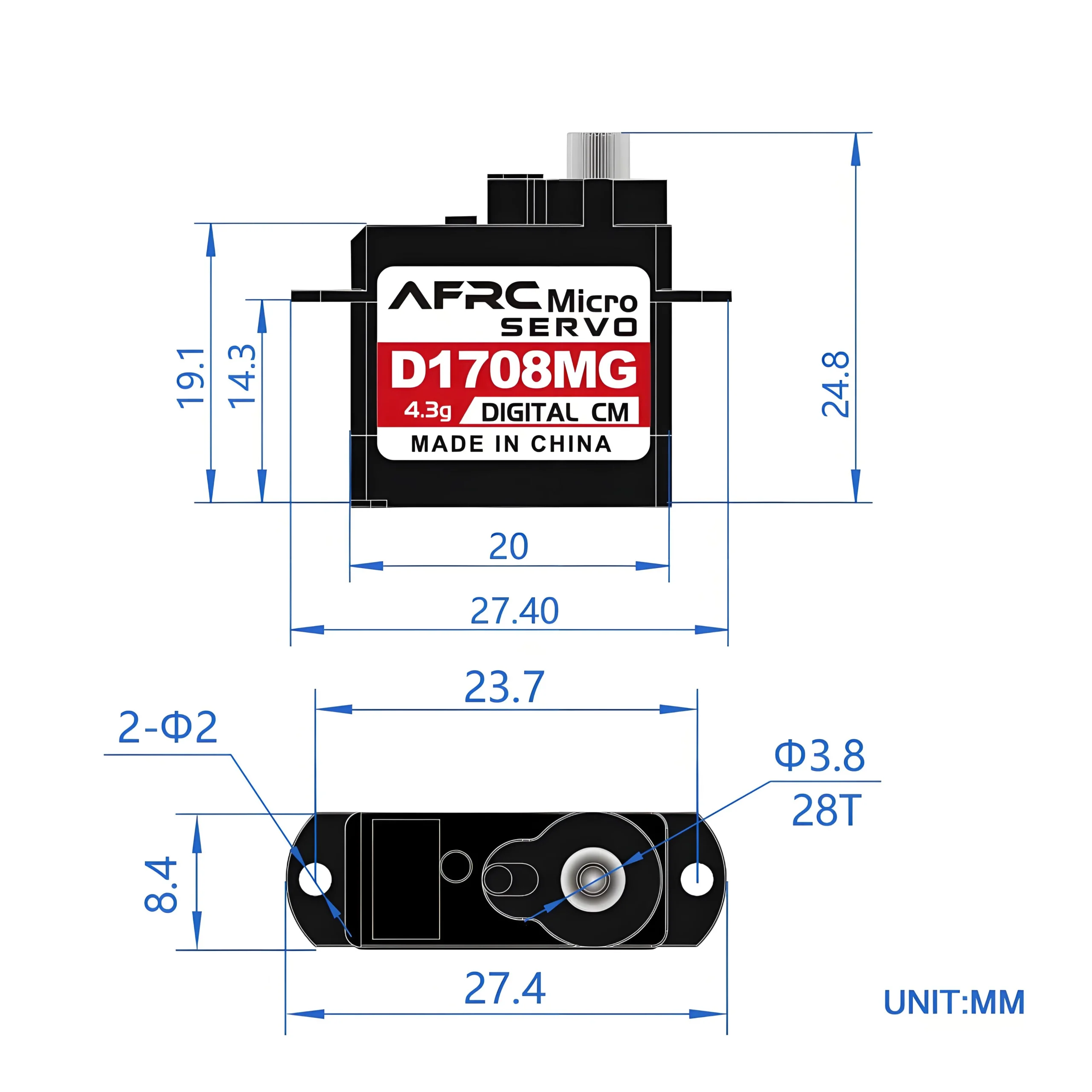

Dimensions: 27.4 x 8.4 x 19.1mm
Weight: 4.3g (No including wire)
Working Voltage: 3.7 ~ 6.0V
Torque:
3.7V: 0.60 kg-cm
4.2V: 0.70 kg-cm
5.0V: 0.80 kg-cm
6.0V: 0.85 kg-cm
Speed:
3.7V: 0.100 sec / 60 °
4.2V: 0.090 sec / 60 °
5.0V: 0.080 sec / 60 °
6.0V: 0.075 sec / 60 °
Motor type: Coreless motor
Gear type: Metal gear
Wire gauge: JR;Futaba;JST1.25 or ZH1.5 L = 150mm (brown- red + orange S) Please pay attention to distinguish before powering on!
Application: Mini cars helicopter fixed wing industrial intelligence etc.
