[Crane Kit BK] INJORA INJS2065-360 Waterproof 7KG Winch Servo & Tow Truck Crane Kit for 1/18 TRX4M

Note:

Crane kit is designed for TRX4M stock chassis INJORA Carbon Fiber Universal Chassis (4M-89) Aluminum Universal Chassis (4M-111)

Compatible with INJORA IR40 and IR60 bodies. For other body shells please ensure there is sufficient installation space before purchasing

Not compatible with the stock TRX4M transmitter and receiver.

Your receiver must have a free channel and your transmitter must have a knob-style control to operate the winch servo independently

We recommend using the INJORA T6 transmitter (Connect to CH5 or CH6)

Features:

Powerful 7KG Torque – Strong winch servo handles tough recovery jobs with ease

IP66 Waterproof Design – Built to perform in wet and muddy conditions

Overload Protection – Smart current cutoff helps prevent damage under heavy load

CNC Aluminum Construction – Precision machined crane offers durability and premium scale detail

Red Tow Hook Included – Adds functionality and a bold visual touch

Chassis Compatibility – Fits TRX4M stock chassis and INJORA LCG universal chassis

Body Compatibility – Perfect fit for INJORA IR40 and IR60 hard bodies

Enhanced Visual Appeal – Instantly boosts your rig’s realism and trail presence

Winch Servo Specifications:

Part Number: INJS2065-360

Output Spline: 25T

Dead band: 2μs

Neutral Position: 1500μs/330hz

Motor: Core Motor

Voltage Range: 4.8V-8.4V

500-2500μs Angle: 360 Continuous Rotation

Operating Speed (6.0V): 116 rpm

Operating Speed (8.4V): 163 rpm

Stall Torque(6.0V): 6.0 kg.cm

Stall Torque(8.4V): 7.0 kg.cm

Dimensions: 23*13*25.8mm

Weight: 20g

Connector Wire Length: JR 300mm

Bearing: 1BB

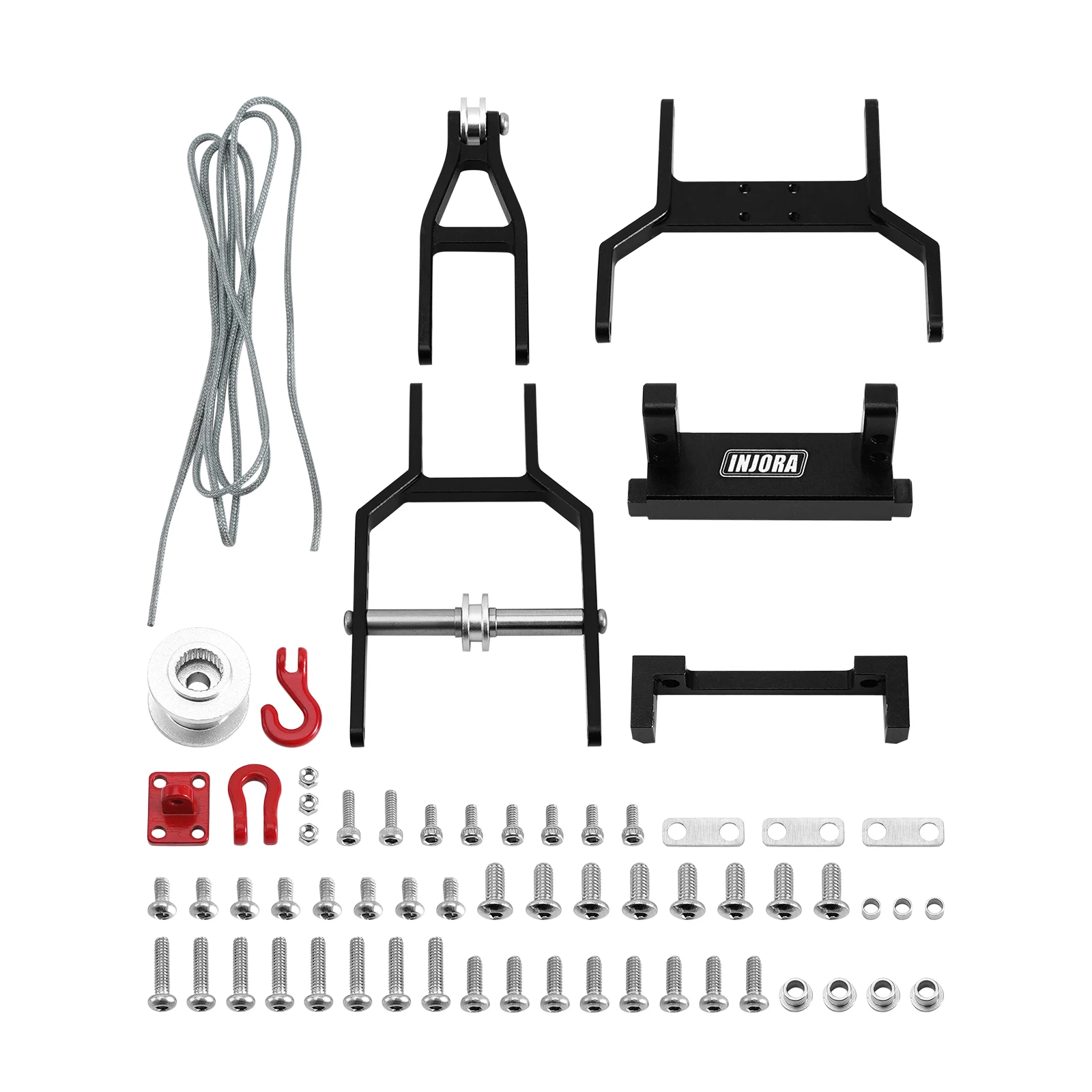

Crane Kit Specifications:

Part Number: 4M-115

Material: Aluminum

Color: Black Silver

Weight: 32g

Winch Spool: 25T

Rope Length: Approx. 53cm
