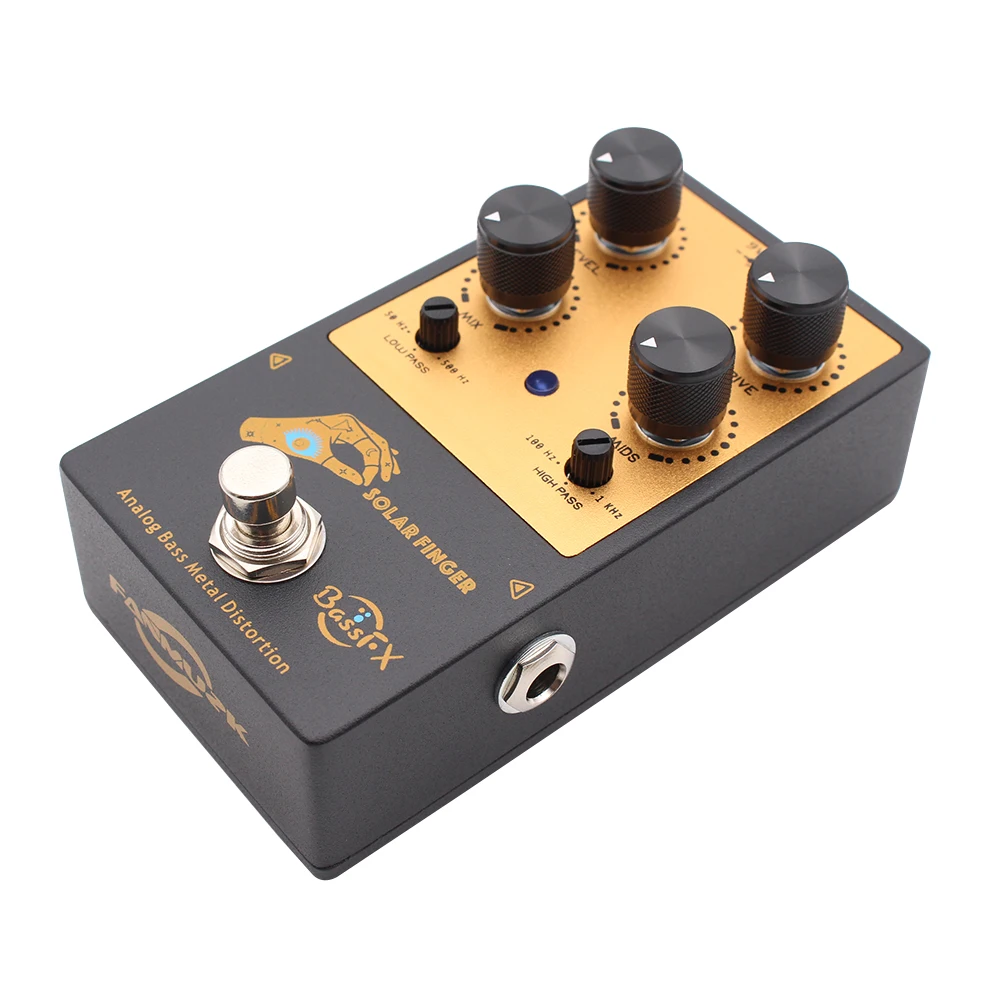

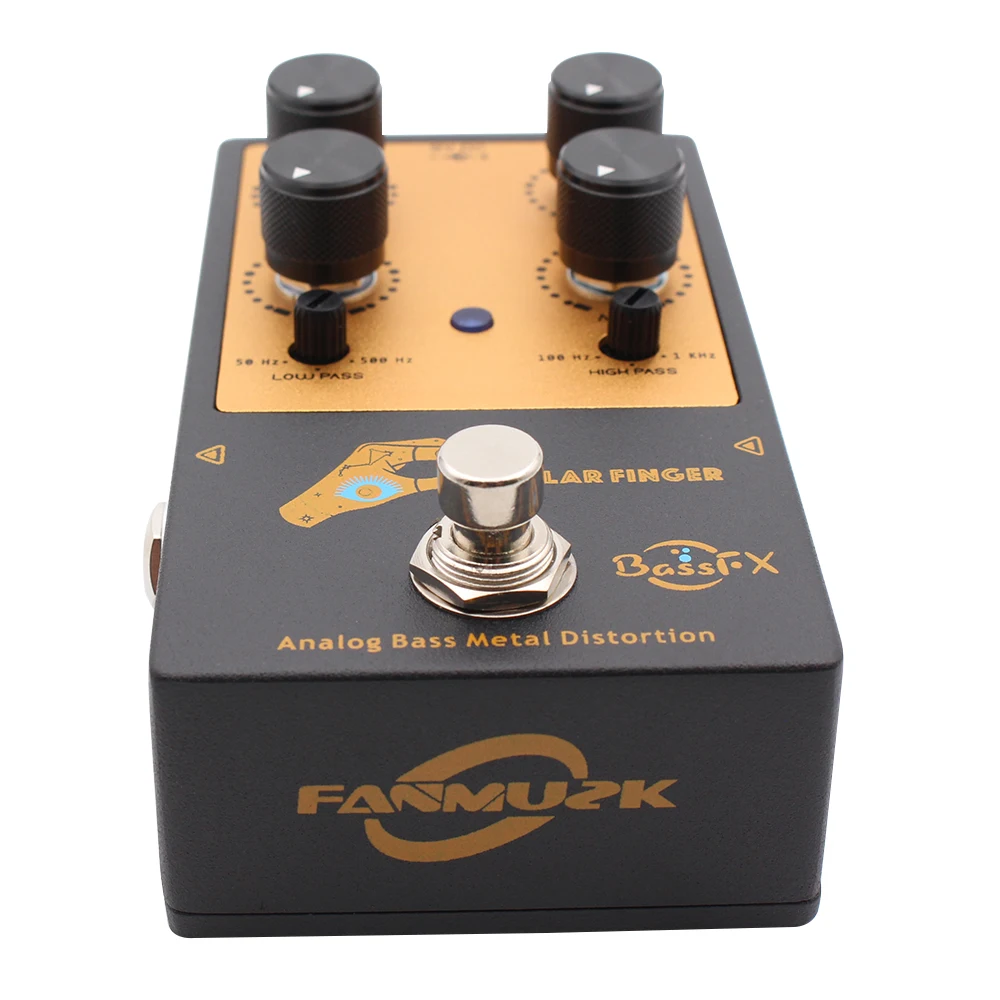

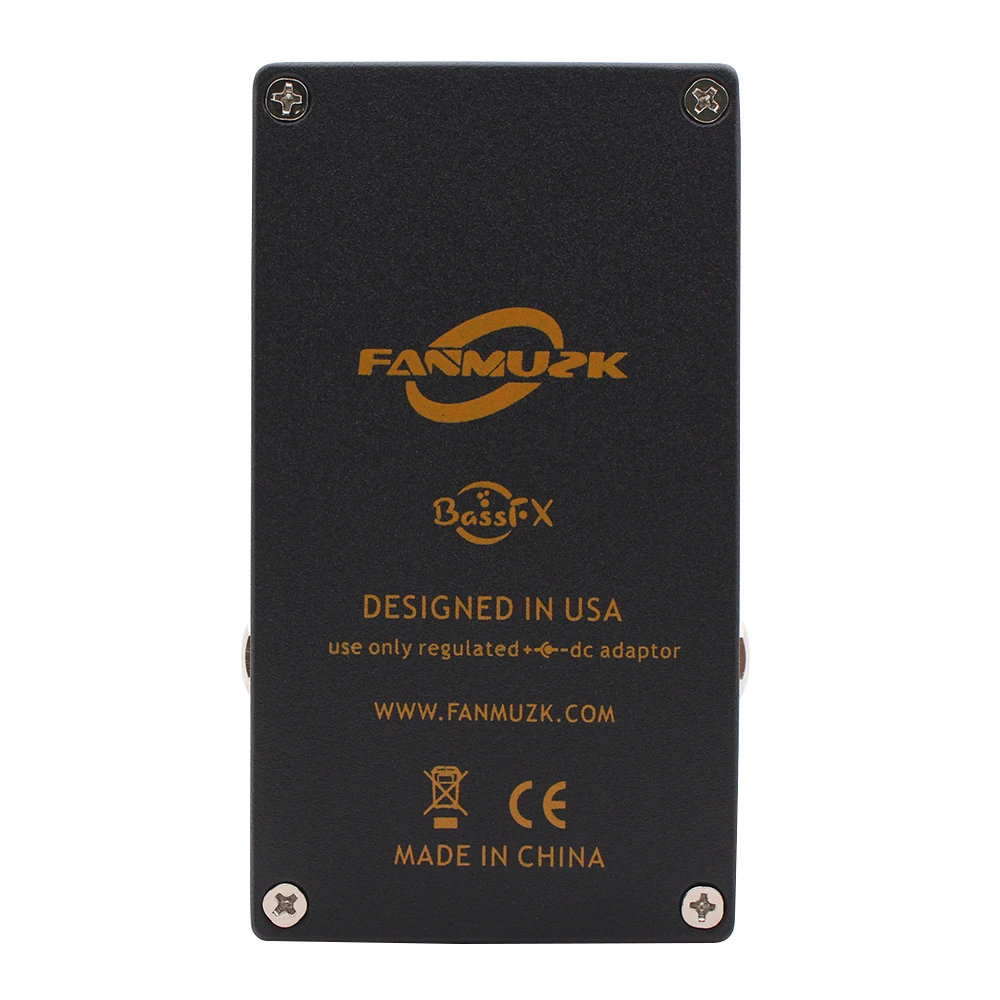

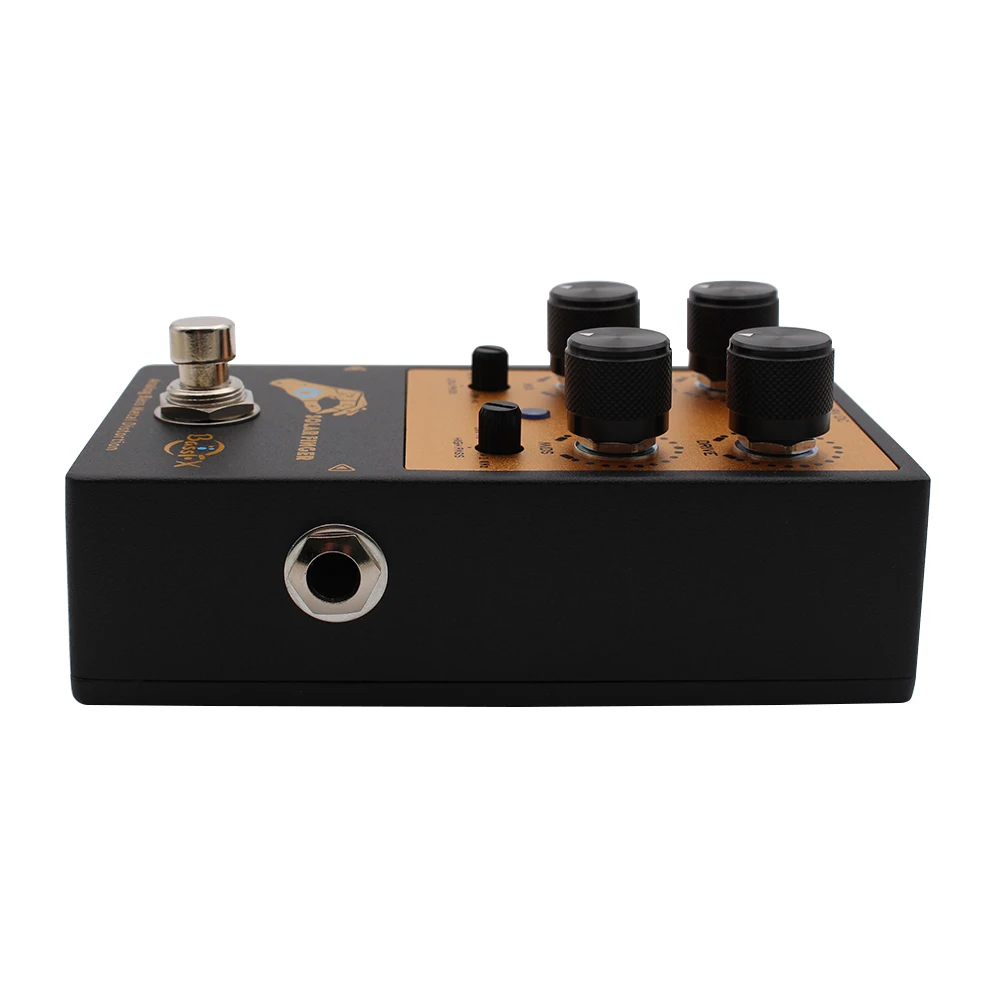

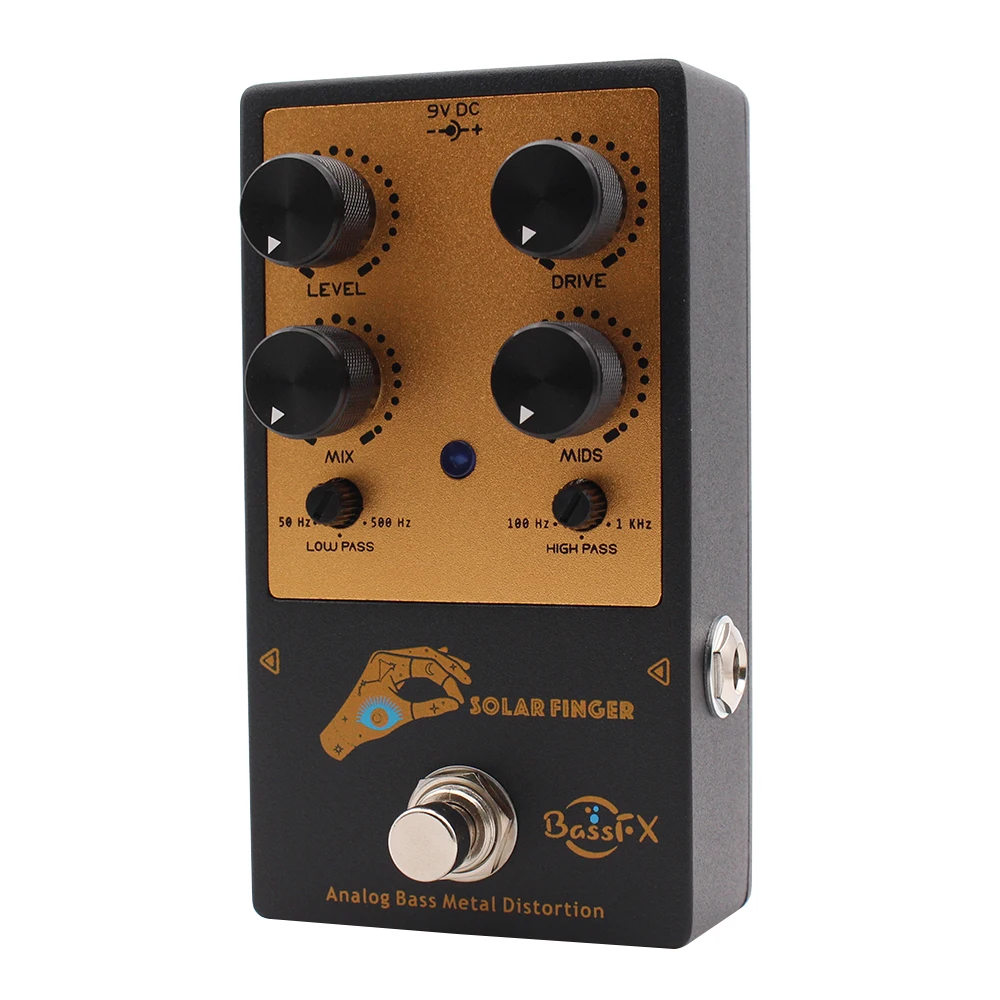

Fanmuzk Analog Bass Metal Distortion Effect Pedal for Electric Bass with Low pass and High pass Control

Specs

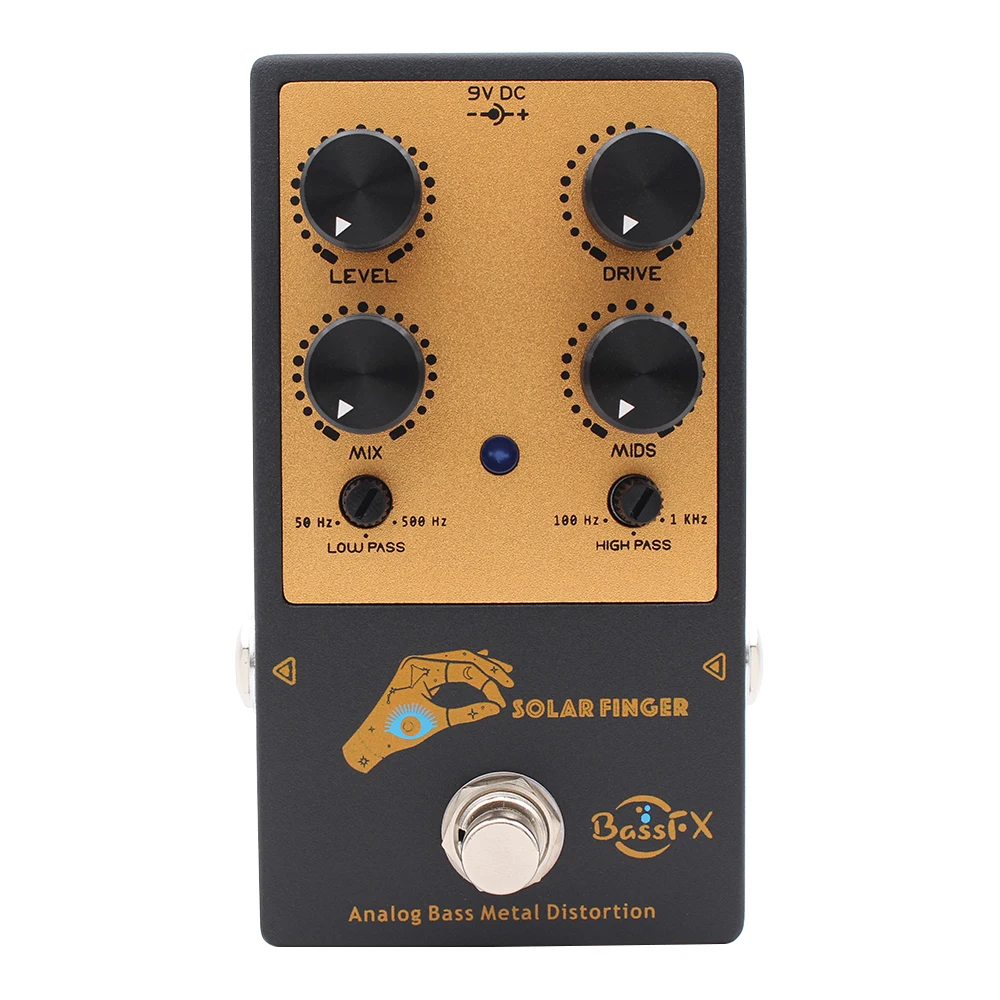

Controls

High-pass frequency: Controls the cutoff frequency to be distorted ranging from 100Hz (for thicker fuzzier saturation) or 1kHz for ultra-sharp definition.

Low-pass frequency: Controls the cutoff frequency to be mixed back to the high-pass side. Ranging from 50Hz (for only sub-bass) and 500Hz to preserve some clean mids.

Level: Sets the overall output volume of the unit.

Drive: Sets the amount of distortion for the high pass side.

Mix: Sets the blend between low-pass and high-pass signals.

Mids: Active mid control placed after the Mix control. +-12dB @ 500Hz.

Technical Specifications

Input Impedance: 1MΩ

Output Impedance: 1kΩ

Current Consumption: ~30mA

Voltage: 9V DC (Center Negative)

Dimensions

Width: 65 mm

Length: 118 mm

Height: 48 mm

Weight: 310 g

Package included: only the pedal
