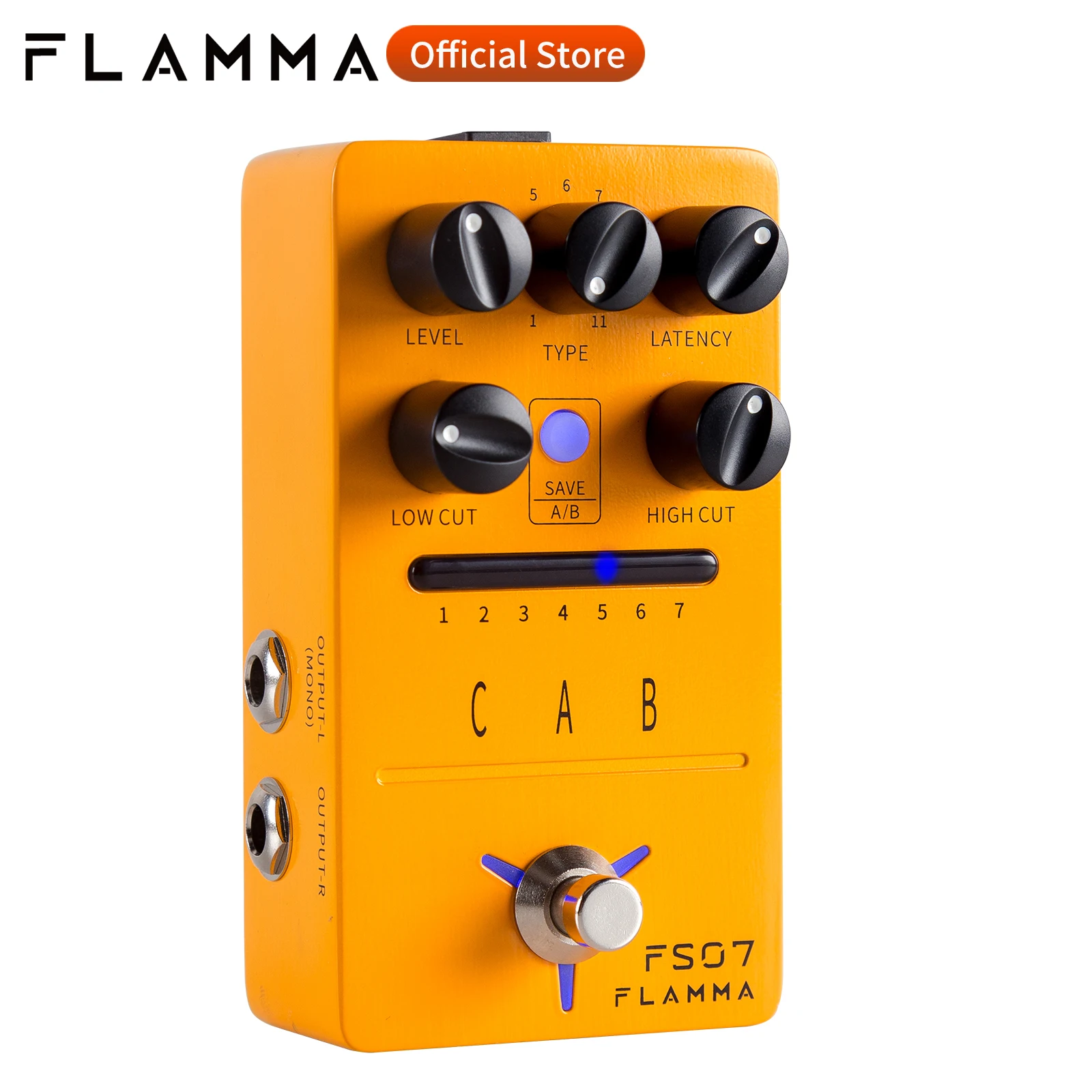

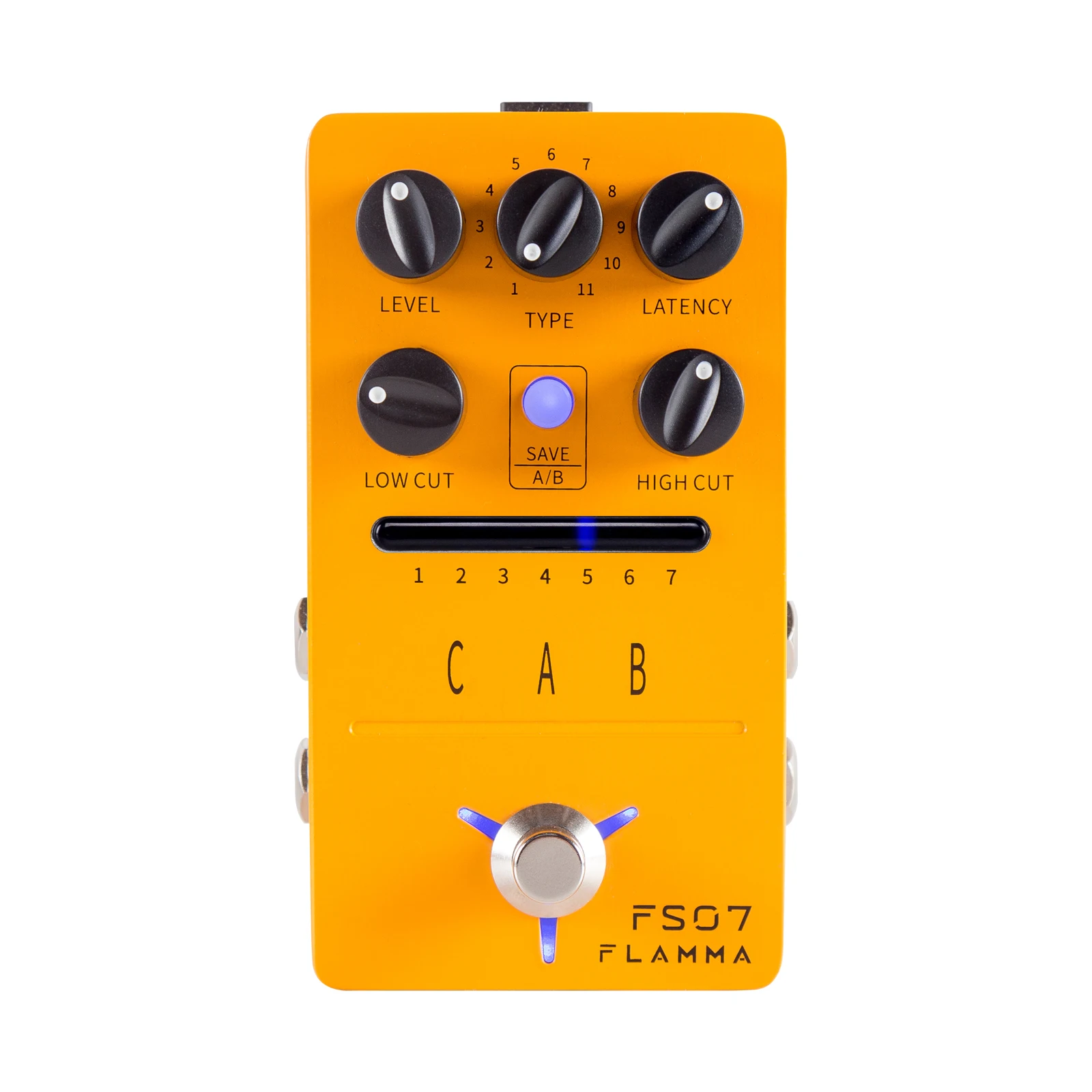

FLAMMA FS07 IR Cabinet Simulation Pedal Cab Simulation Guitar Effects Pedal Impuse Response Loader 7 Presets 11 Factory IR

Features

●High-quality stereo cabinet simulation/IR loading pedal.

●Includes 7 user preset slots that can store two different cabinet simulation setting each.

●11 factory cabinet simulation files with support for loading third-party impulse response files choose between mono or stereo setups.

●Comes with specialized editor software for quick management of your presets. Choose between mono or stereo setups.

●Footswitch can be assigned as a tradition on/off switch or to switch between presets.

●Support 9V 300mA center negative power supply(the package doesn’t included it ).

Please use power supply with ９V and at least 210mA current value for the unit. Incorrect power supply may cause short-circuit and damage.

Package Included
1xFS07 Cabinet Simulation Effects Peda

1xUSB Micro B cable

1xSafety Instruction&Warranty Card

1xSticker

High Quality Stereo Sound

FS07 offers 24 Bit Depth  44.1 KHZ Sample Rate Which can help you creating pure and high quality sound.

11 Factory Cab IRs

FLAMMA FS07 Cabinet Simulation Pedal supplys 11 Factory IR which coves Various popular Cabinets Effects. It can meets your most creative needs. you also can load your own IR files by 3nd party loader.

Cab Edit

FS07 CAB EDIT is the editor software for the FS07.Users can quickly adjust parameters manage presest load impulse response files backup users files etc.Vist the official FLAMMA website (www.flammainnovation.com/download.html ）and download the software version that matches your operating system (OS).

Two Modes-Preset Mode and Bypass Mode

●Mode switch:Press and hold the footswitch for more than 1 second while  plugging  in the power cord to power on.

●Preset mode-The blue indicator of the footswitch light

●Bypass mode-The red indicator of the footswitch light.

●When the bapass effect is activated and the indicator of the footswitch light is off.

Preset switch and save

Press the footswitch to switch the 7 different preset effects. LED indicates the currently selected effect.Press and hold the SAVE button for 1 second to save the currently edited preset. The button LED will blink to confirm saving was successful.

Tone adjustment for output

●Each preset can store the parameters the of left output and right output individually.

●Press the A/B/SAVE button to switch between the two outputs. The color of the LED button indicates the currently selected output. Blue means the left output is selected while red means the  right output is selected.

●The  storable parameters  include LEVELTYPE LATENCY LOW CUT HIGH CUT and bypass/power switch.

Support mono and Stereo set up
FLAMMA FS07 Cabinet simulation has two set up mono and stereo set up for plugging into a mixermonitoraudio interface and free system.
