GEPRC GEP-M10 Series GPS Built-in Flash Chip QMC5883L Magnetometer DPS310 Barometer Accurate and Farad Capacitor FPV Drone

Summary

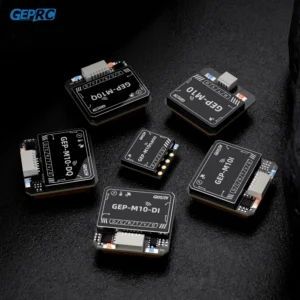

Hello all FPV enthusiasts in order to improve customer experience the GEPRC team has fully upgraded the GPS series product line and now launches GPS series products based onM10 chip: GEP-M10nano GEP-M10 GEP-M10Q GEP-M10-DQ.

GEP-M10 series GPS positioning module has the features of small size fast positioning stable connection and convenient use. Using the M10 chip solution of company it supports GPS + BDS + Galileo + QZSS + SBAS joint positioning the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones multi-rotors fixed-wing and other model products.

Specifications

• Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ

• GPS chip: M10

• Magnetometer: GEP-M10nano: No / GEP-M10: No / GEP-M10Q: QMC5883L / GEP-M10-DQ: QMC5883L

• Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10Q: No / GEP-M10-DQ:DPS310

• Input voltage: 3.3V-5V

• Receiving frequency: GPS L1 GLONASS L1 BDS B1 GALILEO E1 SBAS L1 QZSS L1

• Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning

• Channel: 72ch

• Navigation satellites: Up to 32 pieces

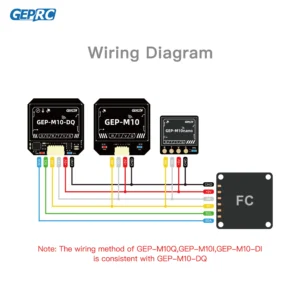

• Output protocol: GEP-M10nano: UART() / GEP-M10: UART() / GEP-M10Q: UART() I2C / GEP-M10-DQ: UART() I2C

• Baud rate: 115200bps

• Output Frequency: 10Hz

• Speed Accuracy: 0.05 m/s

• Horizontal positioning accuracy: 2D ACC1.5m(Weather)

• Timing accuracy: 30 ns

• Receiver sensitivity: Trace-162dBm Capture-160dBm

• Dynamic characteristics: Max Height: 50000m Max Speed: 500m/s

• Maximum acceleration: 4G

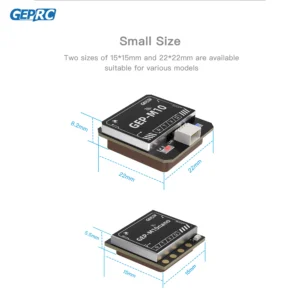

• Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10Q: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm

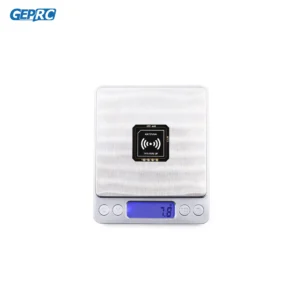

• Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g  / GEP-M10Q: 7.9g / GEP-M10-DQ: 8.0g

Features

1. M10 series chip

2. Fast positioning speed

3. GPS+BDS+Galileo+QZSS+SBAS joint positioning

4. Up to 32 satellites

5. Stable connection quality

6. Unique appearance design

7. Small size and light weight

8. Built-in Flash chip and Farad capacitor

9. Onboard indicator light easy to use

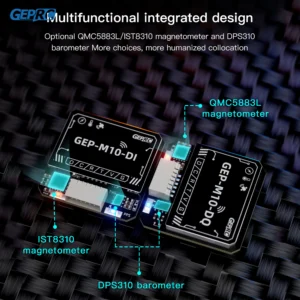

10. Integrated magnetometer+barometer integrated module (GEP-M10-DQ)

Includes

1 x GPS module

1 x Terminal wire

1 x Instruction manual

1 x GEPRC sticker

1 x Heat shrink tubing
