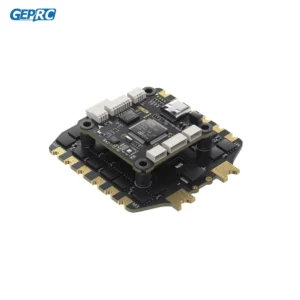

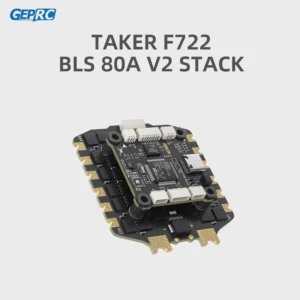

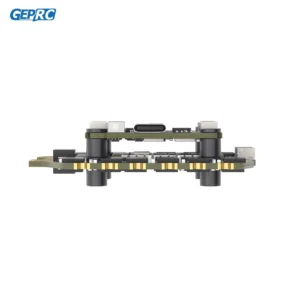

GEPRC TAKER F722 BLS 80A V2 STACK 80A 4IN1 ESC 16MB Black Box Data Analyze Record Flight Data Plug XT60 Play Racing FPV Drone

Features

1.  Use mainstream STM32F722 chip

2.  Equipped with the latest 42688-P gyroscope

3.  16M black box storage

4.  Integrated LC filter

5.  Upgrade type-C USB interface

6.  Directly plugged into the D JI Air Unit

7.  With TAKER H80_BLS 80A 4IN1 ESC Dual MOS high current silky flight

8.  Simple and reasonable installation method the shock absorber can make the gyroscope work very stably

9.  9V@2.5A + 5V@3A dual independent BEC

Specifications

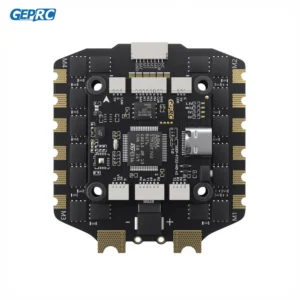

GEP-F722-HD v2 Flight Controller

•  MCU:STM32F722

•  IMU:ICM42688-P(SPI)

•  Air Unit Connection:Direct plugging into D JI Air Unit

•  Black Box:16M onboard

• USB Interface:Type-C

• Barometer: support

• OSD:BetaFlight OSD w/ AT7456E chip

• BEC:5V@3A 9V@2.5A dual BEC

• Firmware Target:GEPRCF722

• Size:36.85×36.85mm hole 30.5×30.5mm φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.

• Input Voltage:3-6S LiPo

• UART:5

• Power Filter:Integrated LC filter

• Weight:8.1g

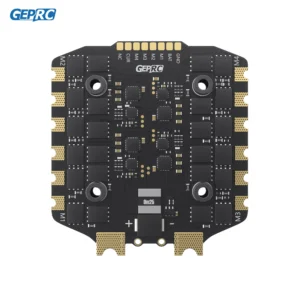

TAKER H80_BLS 80A 4IN1 ESC

•  Input Voltage: 3-6S Lipo

•  Ammeter: Support

•  Continue Current:80A

•  Burst Current:85A(5 second)

•  Support Protocol: Dshot 150/300/600

•  Size:56.3*61.1mm hole30.5×30.5mm φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.

•  Weight: 28.1g

• Target: B_X_30

Includes

1 x Flight Controller
1 x ESC
1 x Capacitor
1 x D JI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
