Description

High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane

Description:

Item Name: A3 V2 flight controller

Material: Metal

Input Voltage: 5 to 7.4V

Servo Travel: 1520 ± 500μs

Gyroscope: ± 2000dps

Accelerometer: ± 4g

Operating Temp: -40 ℃ ~ 85 ℃

Size: 43 × 27mm

Weight: 11g

Features:

– One-click Auto Hover

– 4 Flight Modes: Normal Auto-balance Auto-hover and Gyro Off modes.

– 3 Wing Types: Standard Delta-wing (Flying-wing) and V-tail.

– 3 working frequencies for servos: 50Hz 125Hz and 250Hz

– Separated gain adjustment for each flight mode.

– Automatic stick centering.

– HV (7.4) operating voltage supported.

– Futaba S.Bus / S.Bus 2 supported.

– Easy to use extremely well-suited to beginners

Video Tutorial:

http://v.youku.com/v_show/id_XNzQ2MTczNDMy.html
http://v.youku.com/v_show/id_XNzQ2MTc3MjYw.html
http://v.youku.com/v_show/id_XNzQ3MDY4ODc2.html
http://v.youku.com/v_show/id_XNzQ3MDU5ODk2.html

Package Included:

1x A3 V2 Flight Controller

One-click Hover and Auto-hover:

A new flight mode which we call Auto-hover was added in new A3 V2. When operating in this mode the self-balance ability will be applied to both elevator and rudder. The plane can hold its hover attitude without any control except the throttle.

High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane

After switching to auto-hover flight mode you only need to control the throttle to maintain enough pulling force for the plane. This mode can be used to reduce the difficulty of hover practice.

High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane

Auto-balance Level Flight:

The auto-balance mode is designed especially for the beginners or FPV applications. When operating it in this mode the controller will help the plane achieve level flight automatically. It can be also used to recover the plane from any other attitudes or help to get a stable takeoff and landing.

High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane

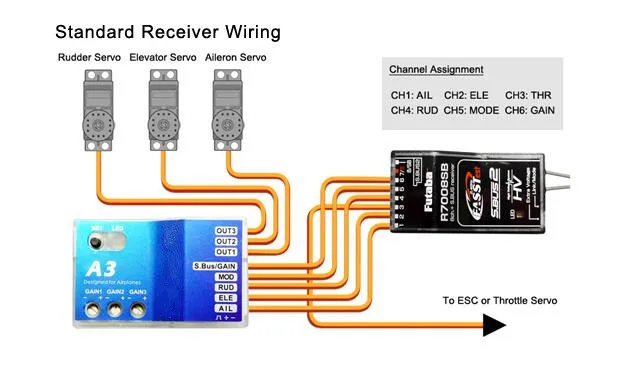

connection method:

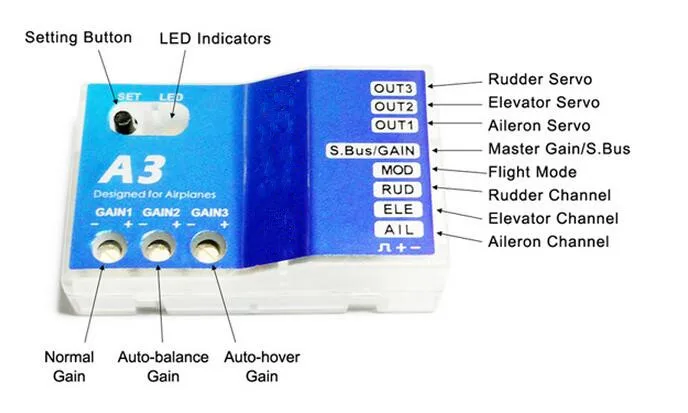

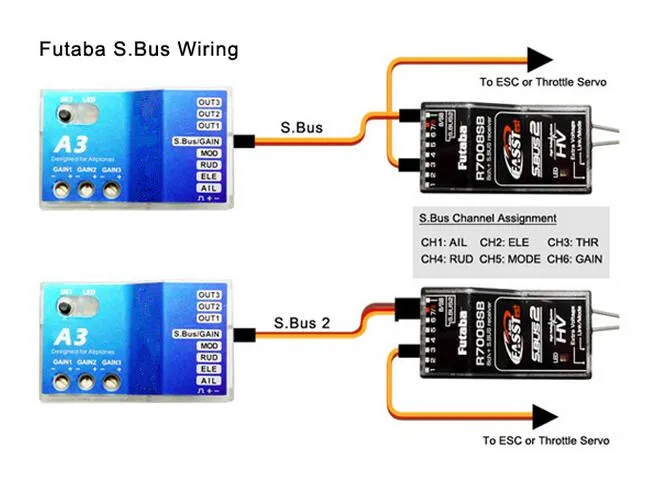

The new A3 V2 series provides 5-channel inputs and 3-channel outputs. You only need to connect the receiver and servos to the corresponding pins on the side of the controller. The knobs are used to adjust the gain for each flight mode clockwise for increase anticlockwise for decrease. Futaba’s S.Bus and S.Bus 2 are supported by new A3 series now.

High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane
High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane
High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane

A3 V2 settings menu:

High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane

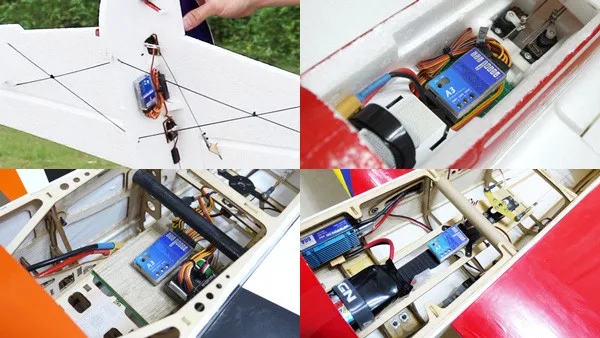

Installation Cases:

The new A3 V2 series can be attached flat or upright to maximize the use of space for your plane.

High Quality 3 Axis Gyro A3 V2 Flight Controller Stabilizer for RC Fixed-Wing Airplane
