Holybro H-RTK F9P Rover lite/Helical/Base Differential multi-channel GNSS positioning system UBLOX F9P module

H-RTK F9P is the latest differential high-precision GNSS positioning system series from Holybro. This system provides multi-band RTK with fast convergence times and reliable performance concurrent reception of GPS GLONASS Galileo and BeiDou and fast update rate for highly dynamic and high volume applications with centimeter-accuracy. It uses a UBLOX F9P module a IST8310 compass and a tri-colored LED indicator. It also has a integrated safety switch for a simple and convenient operation.

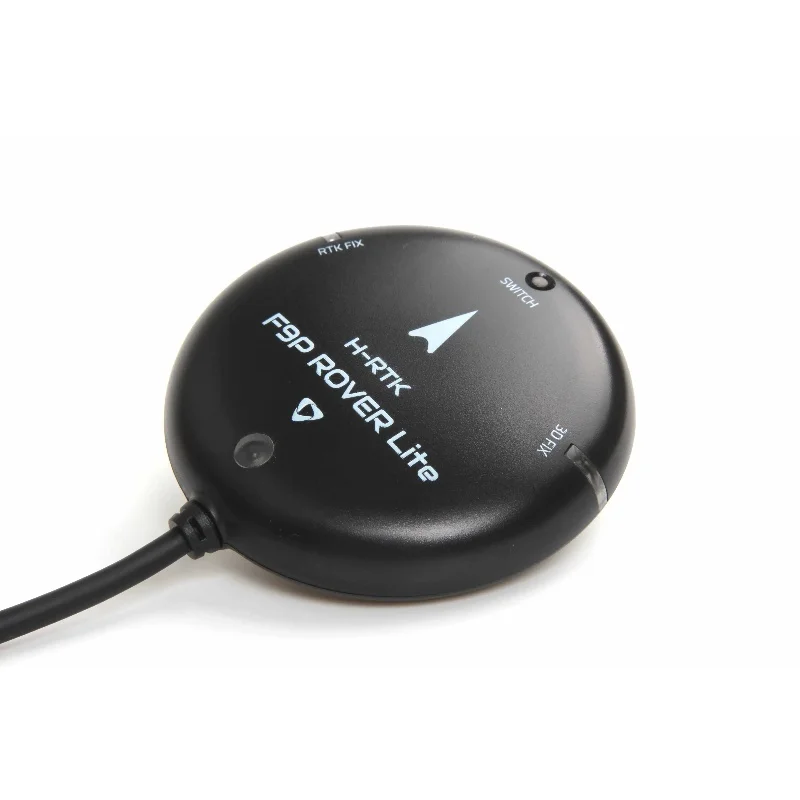

H-RTK F9P Rover lite (SKU12017)

This model is lower cost light weight and has high performance It can meet the needs of general DIY users. Due to the lower cost this model can also greatly minimize the cost of large swarm drone projects such as swarm light shows. It has a integrated safety switch and a tri-colored LED indicator and it is compatible with the open source Pixhawk series flight controller.

Package Included:
– H-RTK F9P Rover Lite *1
– Fixed Carbon Fiber GPS mount(40mm) *1
– Upgrade Toolboard *1
– USB (type-c)cable *1

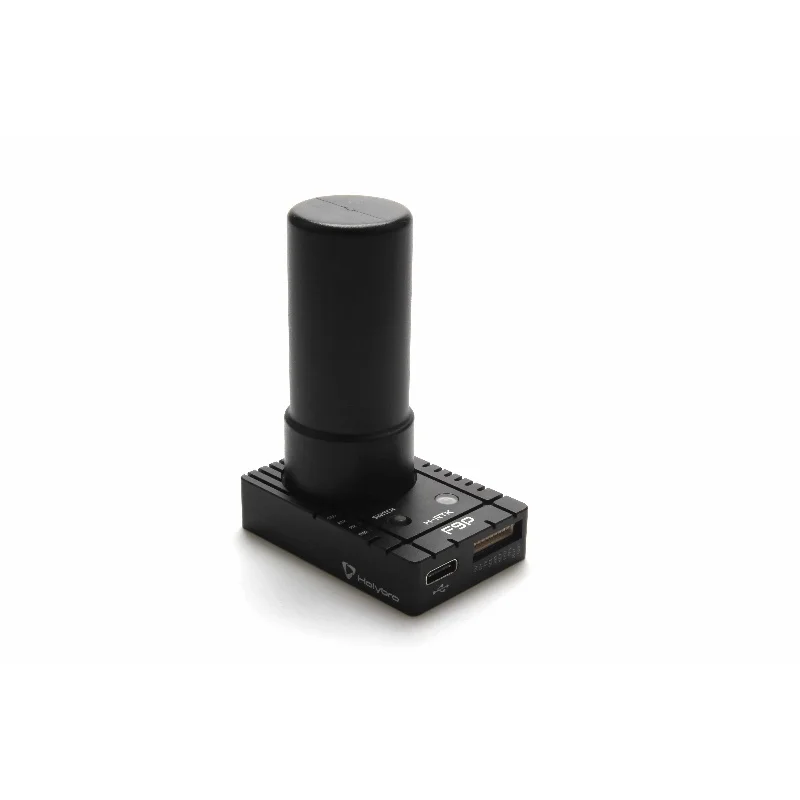

H-RTK F9P Helical (SKU12018)

This model uses a helical antenna which has better performance than the lite version. This model can be used both on rover (aircraft) or as base station. The aluminum alloy shell design also has a integrated safety switch and a tri-colored LED indicator and it is compatible with the open source Pixhawk series flight controller.

Package Included:
– H-RTK F9P *1
– High Precision GNSS Antenna(CH7604A) *1
– Fixed Carbon Fiber GPS mount(29mm) *1
– GH 10P cable 150mm *1
– GH 10P cable 400mm *1
– USB type-c cable *1

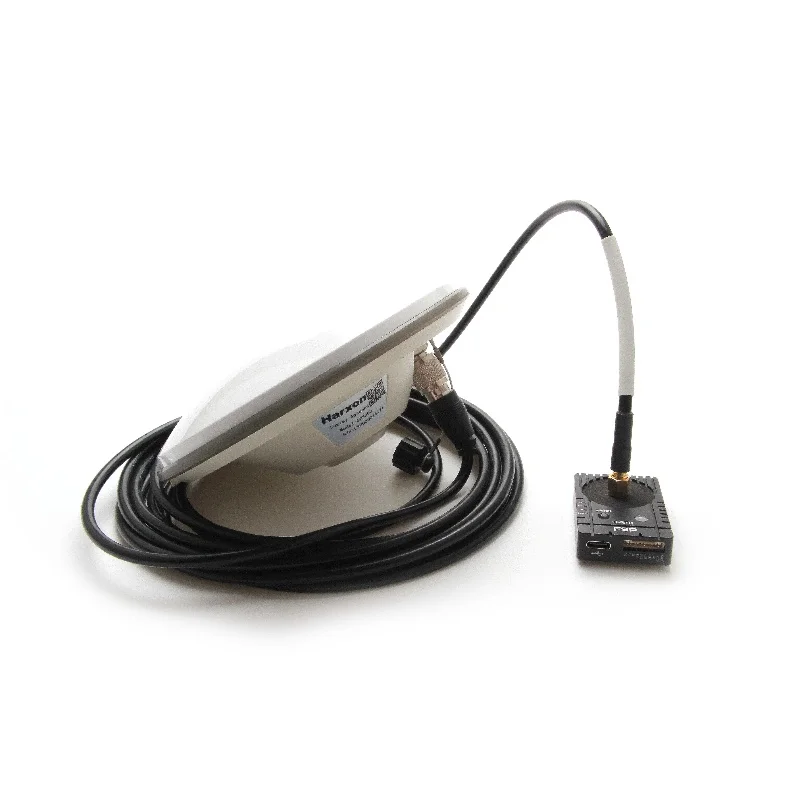

H-RTK F9P Base (SKU12022)

The board is the same as number 2 above but it is equipped with a high-gain antenna. This model is best suited to use as base station. The search speed and positioning accuracy are the highest among the three models.

Package Included:
– H-RTK F9P *1
– High Precision GNSS Antenna(GPS500) *1
– Male-male SMA-TNC cable(length: 5m) *1
– USB type-c cable *1
