Description

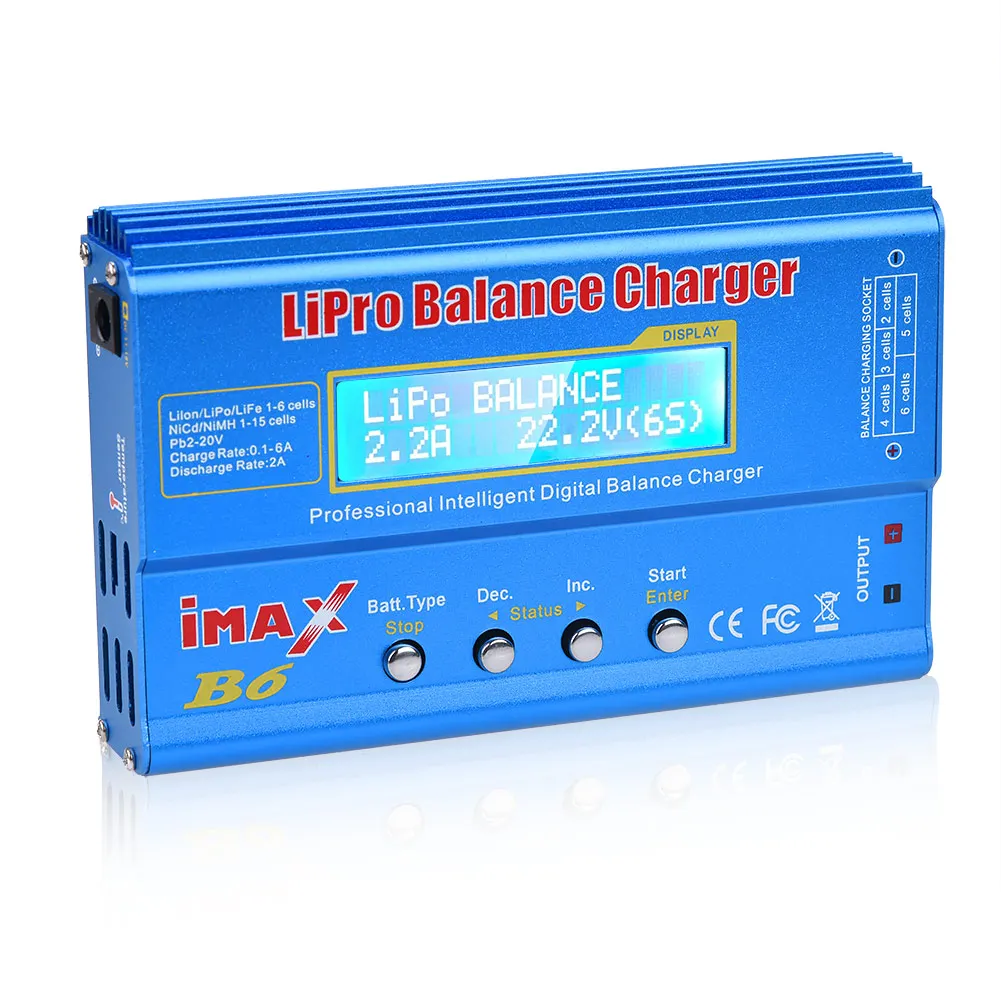

HTRC IMAX B6 80W Lipo Charger For NiMh Li-ion Ni-Cd Battery Balance Discharger No-AC
Please Frist choices from Ru warehouse ship out.(More Cheaper more Faster)
From Spain and Portual Customers:
We have Local Spain warehouse Can Deilvery Within 48-72hours
Q:What Difference of B6 between Hb6 ？
A:The HB6 and B6 is just the color and brand differ same Function In order to satisfy to color preferences of more customer Please don’t worry.
Q:Does The IMAX B6 Original?
A:Yes.Our imax b6 is “HTRC “Brand And produced by Our HTRC factory which focus on the high quality chargers.not Skyrc no fake and don’t need Security Code if you mind please don’t buy thanks!
Q:How to charge correctly when received the goods?
A:after you received the goods please follow those using turn
(if you plug the machine firstly that will caused the machine can not open or work unnormally)
Q:How to use?

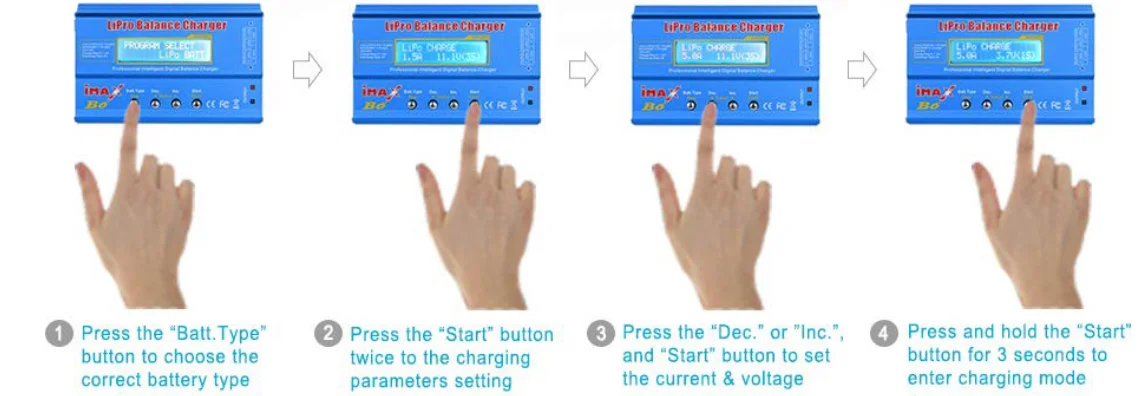

A:Do as below the picture show:
1.Press the “battery type”button to choose the correct battery type
2.Press the “start”button twice to the charging parameters setting
3.Press the “dec.”or “inc” and “start”button to set the current & voltage .
4.Press and hold the “start”button for 3 seconds to enter charging mode .
1.About the connectors you need to connect correctly otherwise it will fail to charger.
2.About the positive electrode and negative electrode interfaces you need to connect correctly otherwise it will fail to charger.
3.If you choose the balance mode about the balance ports you need to connect correctly otherwise it will fail to charger
4.After setting press the “ENTER”button for 3 seconds then you can charge the battery .
Features:
1. Microprocessor controlled Delta-peak sensitivity

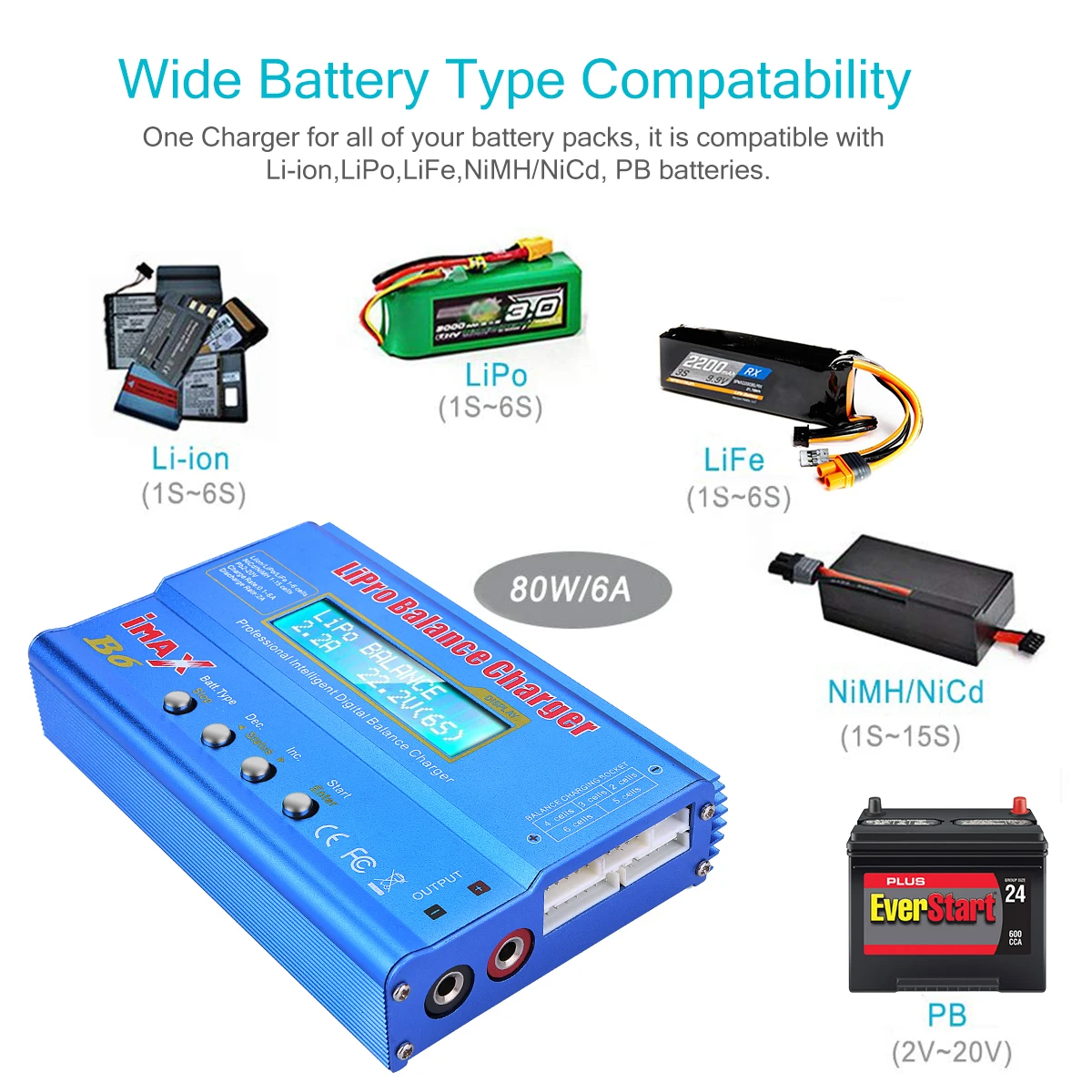

2. Individual cell balancing Li-ion LiPo and LiFe capable Ni-Cd and NiMH capable
3. Large range of charge currents Store function allows safe storage current
4. Time limit function
5. Input voltage monitoring. (Protects car batteries at the field)
6. Data storage (Store up to 5 packs in memory)
7. Battery break in and cycling.
8. Support new generation system (LiFe) battery
Specifications:
* Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/ 6A/5A)
* Circuit power: Max.charge power80W / Max.discharge power 5W
* Charge Current Range: 80W :0.1-6.0A
* Discharge current range: 80W:0.1-2.0A
* Current drain for balancing Li-po: 300mAH/cell
* LiIon/LiPo/LiFe cells : 1-6 cells
* NiCd/NiMH cells : 1-15
* Pb battery voltage: 2~20v
* Dimensions: 133x87x33mm
* Chip :ATMEGA32L

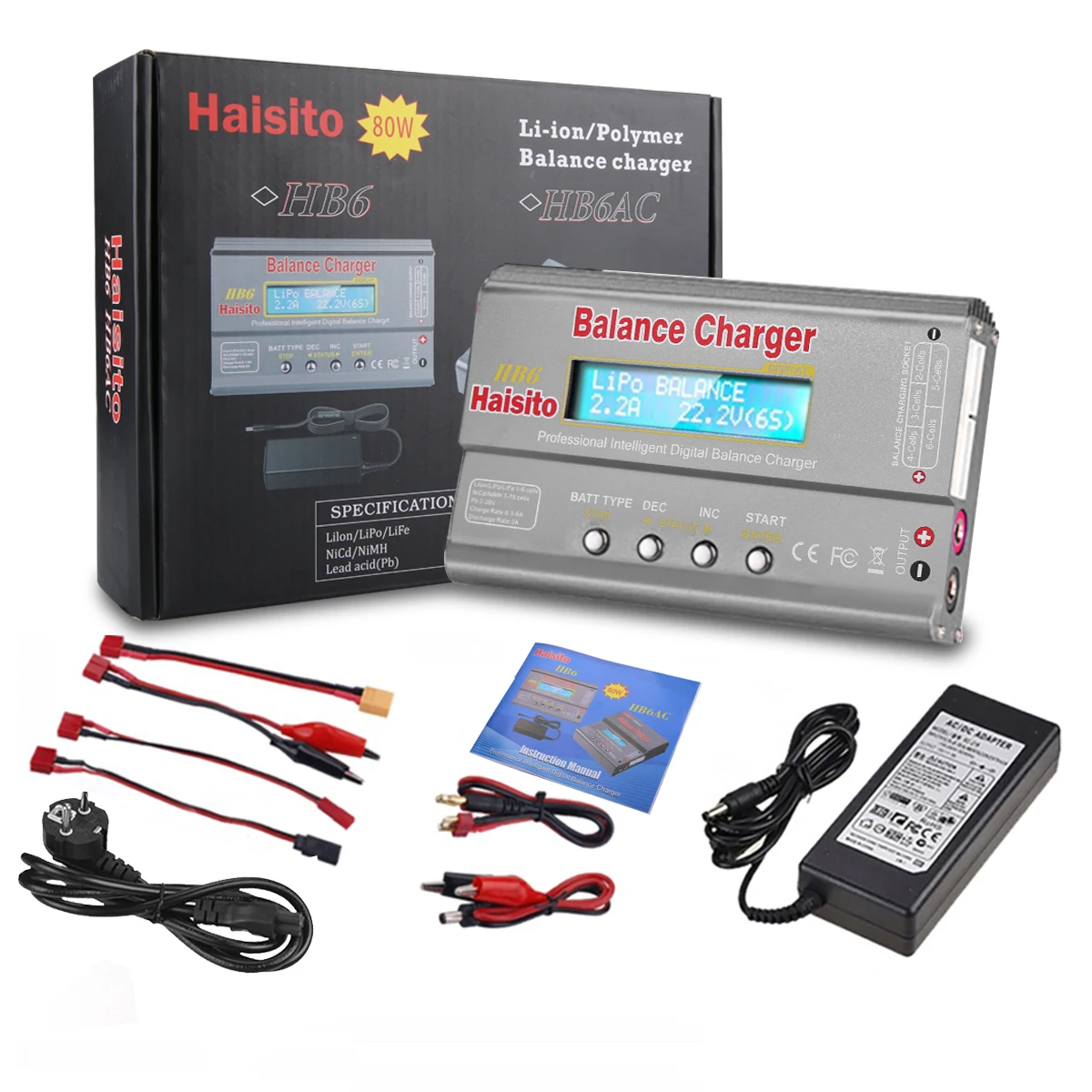

Package include:
1 x imax b6 balance charger
1 x 15V 6A adapter
1 x Banana to T plug charging cable
1 x DC crocodile clip charging cable
1 x T to crocodile clip charging cable
1 x T to XT60 charging cable
1 x T to JST charging cable
1 x T to Dupont charging cable
1 x Manual
Please Note:
1.There are two types for choose: b6 no adapter and b6 with adapter you can choose as you want.
2.Our machine can’t support to measure the 1s battery ‘s voltage and Resistance .
1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries
2.USER SET PROGRAM: to set the parameter of charge batteries which you need .
3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries
4.PROGRAM SELECT SAVE DATA : save setting data
5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid ）batteries .
“
