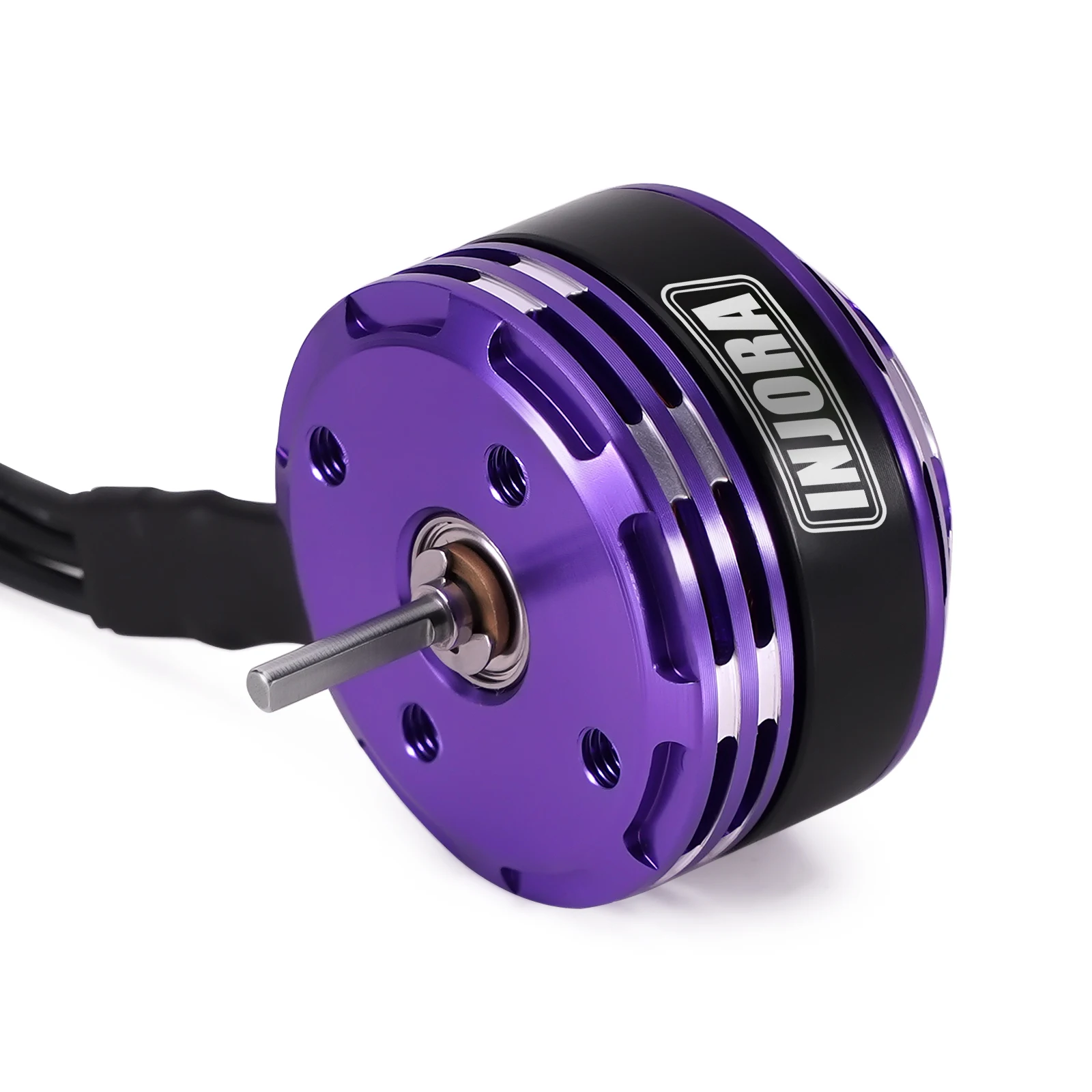

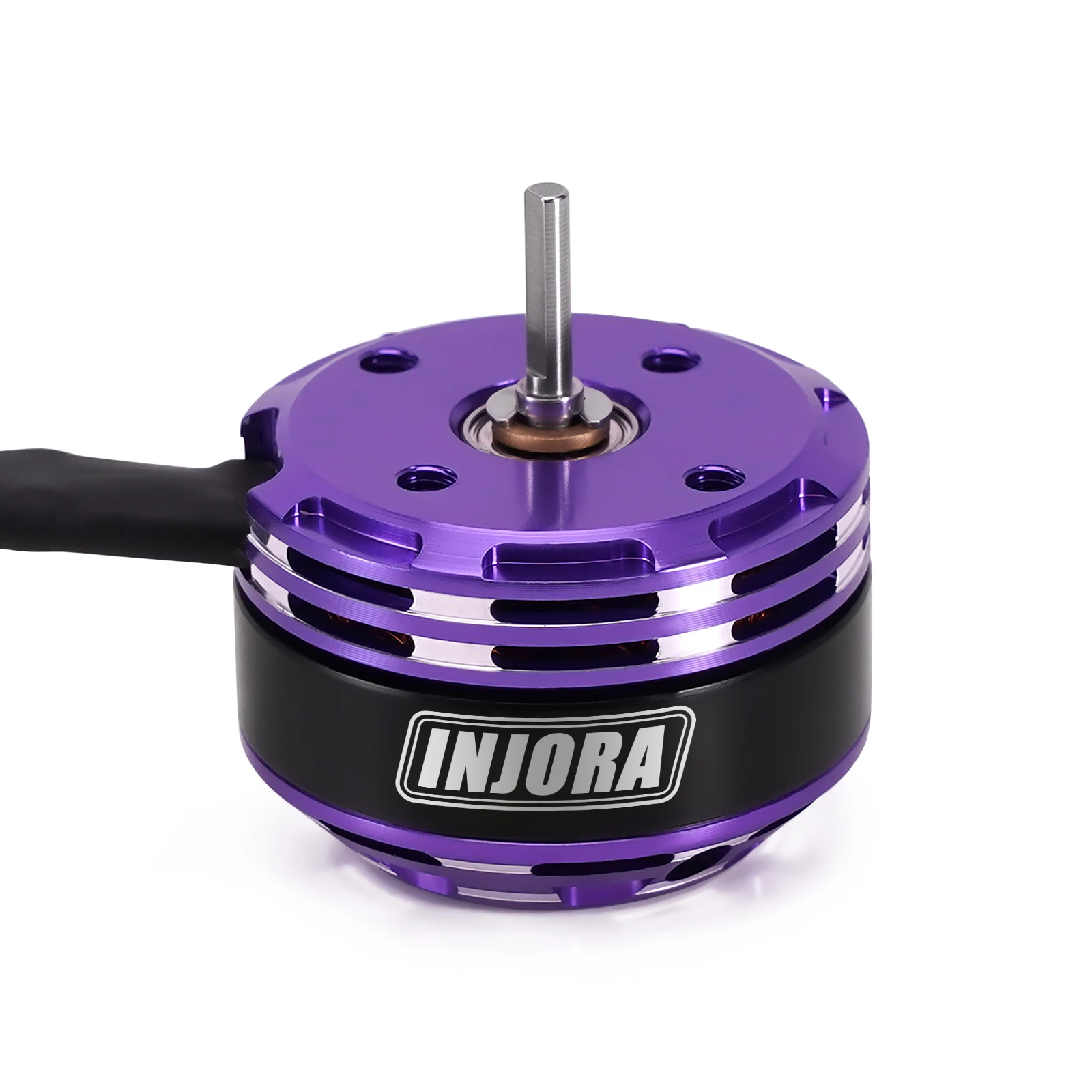

INJORA Fat Viper 2204 Brushless Outrunner Motor & Transmission for 1/18 RC Crawler TRX4M

Note:
Compatible with INJORA 370 transmissiom. Not compatible with stock transmission!
Compatible with INJORA MBL32 brushless ESC. Not compatible with stock ESC!
3S batteries are highly recommended for high torque.
Please be sure to adjust the MBL32 ESC settings according to the parameters of the 2204 motor as detailed in our Programming Tutorial.

Features:
Smooth and linear at low speeds powerful and aggressive at high speeds.
Runs more quietly than brushed systems producing virtually no noise.
2204 Fat Viper Outrunner Motor will give your car a better driving performance.

2400KV Motor Specifications:
Model Number: 2204
Motor Type: Sensorless Brushless Outrunner
RPM/Volt: 2400KV
Motor Poles: 14
Sine Mode Power: 7
Max Power: 2500W
No-Load Current: 0.7A
Max Peak Current: 50A
Motor Connectors: PH2.0 3Pin

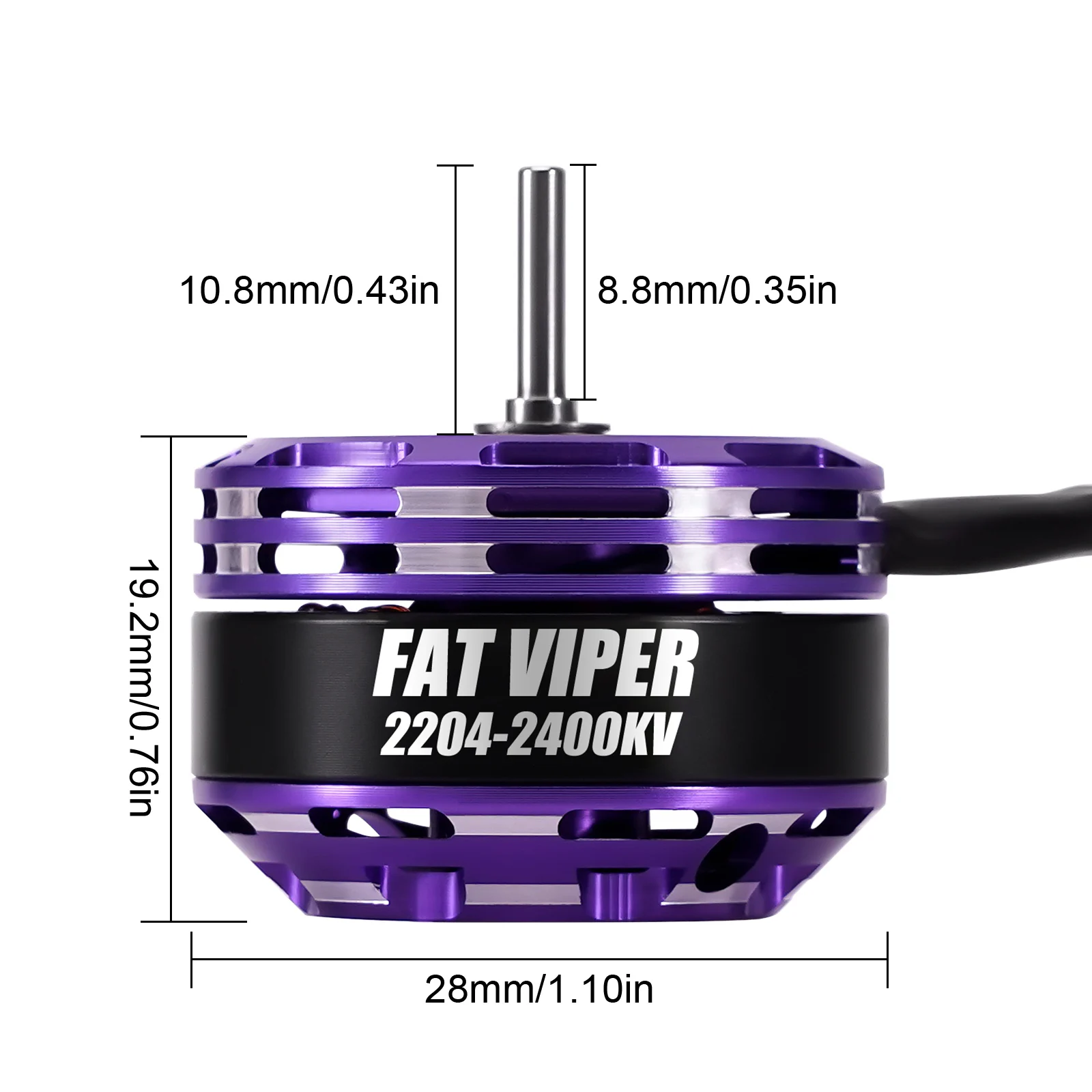

Dimensions: Φ28*19.2mm
Motor Qutput Shaft: Φ2mm
Motor Pinion: 0.4mod 11T
Weight: 28g

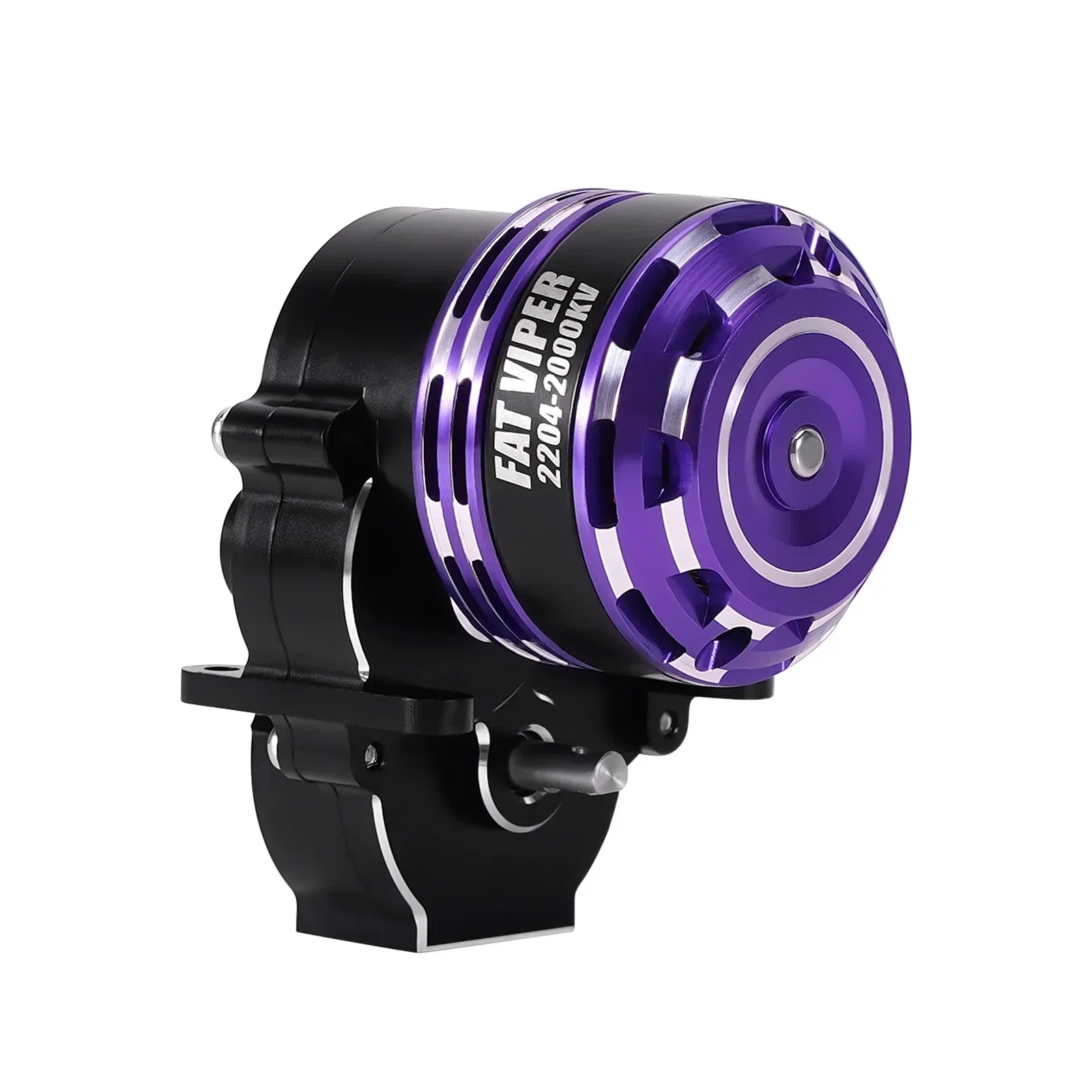

Transmission Specifications:
Housing Material: Aluminum
Gears Material: Stainless Steel
Internal Gears: 24.4:1 gear set underdrive 32%

Package List:
1 * Fat Viper 2204 Brushless Motor
1 * Motor Pinion 11T
