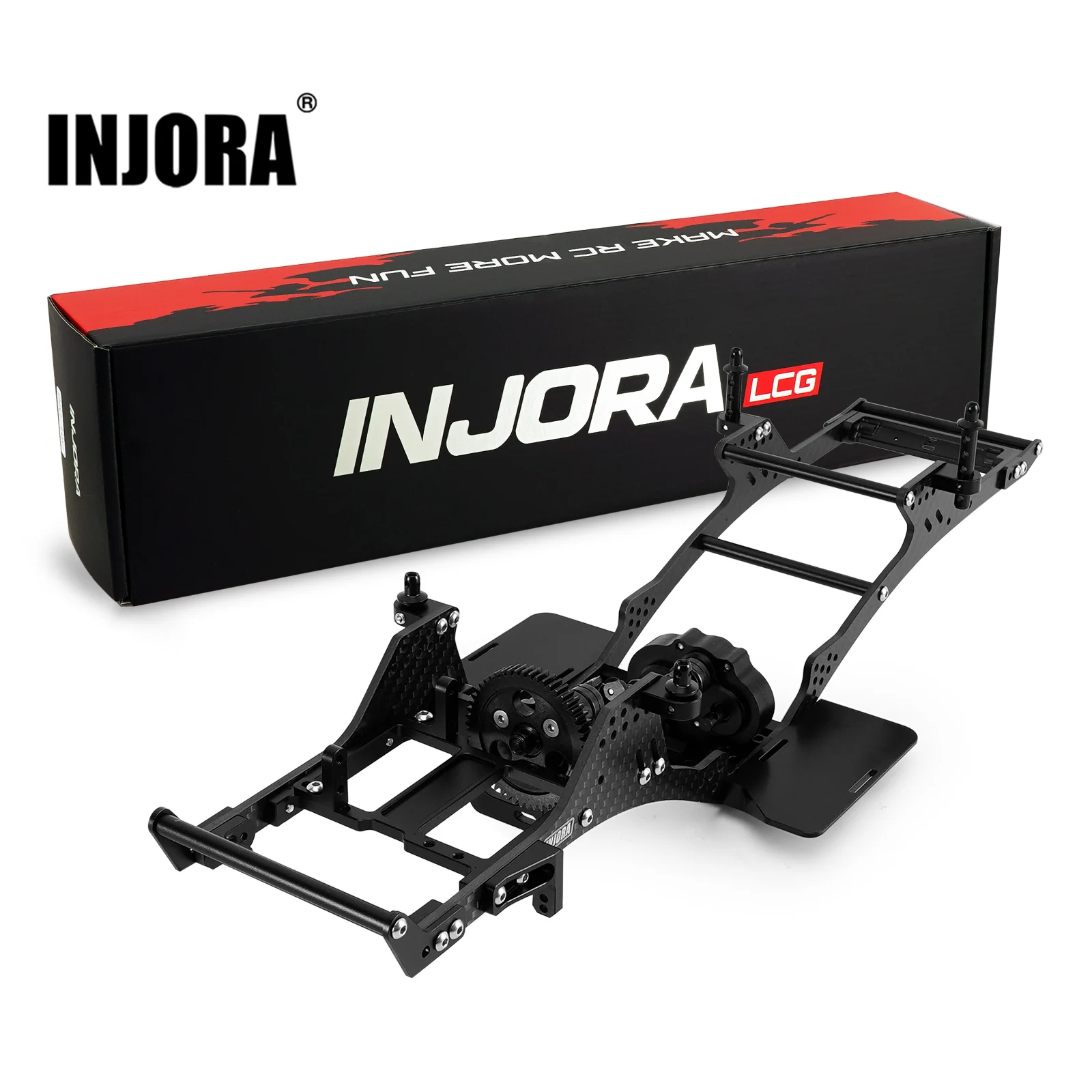

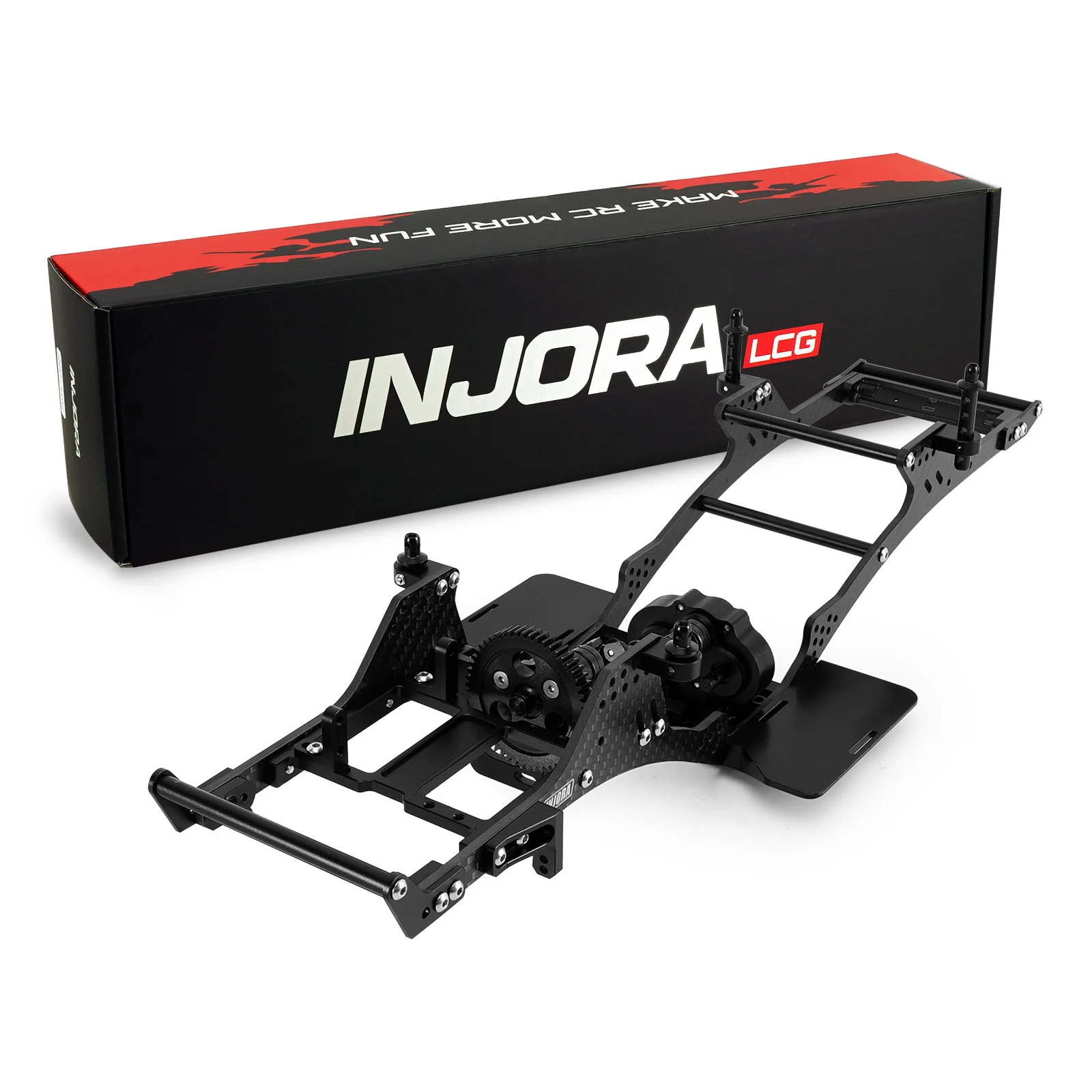

INJORA Front Mounted Transmission LCG Carbon Fiber Chassis Kit for 1/10 RC Crawlers (INC-10F)
INJORA Front Mounted Transmission LCG Carbon Fiber Chassis Kit for 1/10 RC Crawlers (INC-10F)

Features:
Premium Carbon Fiber Construction: High-strength lightweight carbon fiber ensures durability without adding weight
Low Center of Gravity Design: Optimized chassis layout enhances stability and improves crawling performance

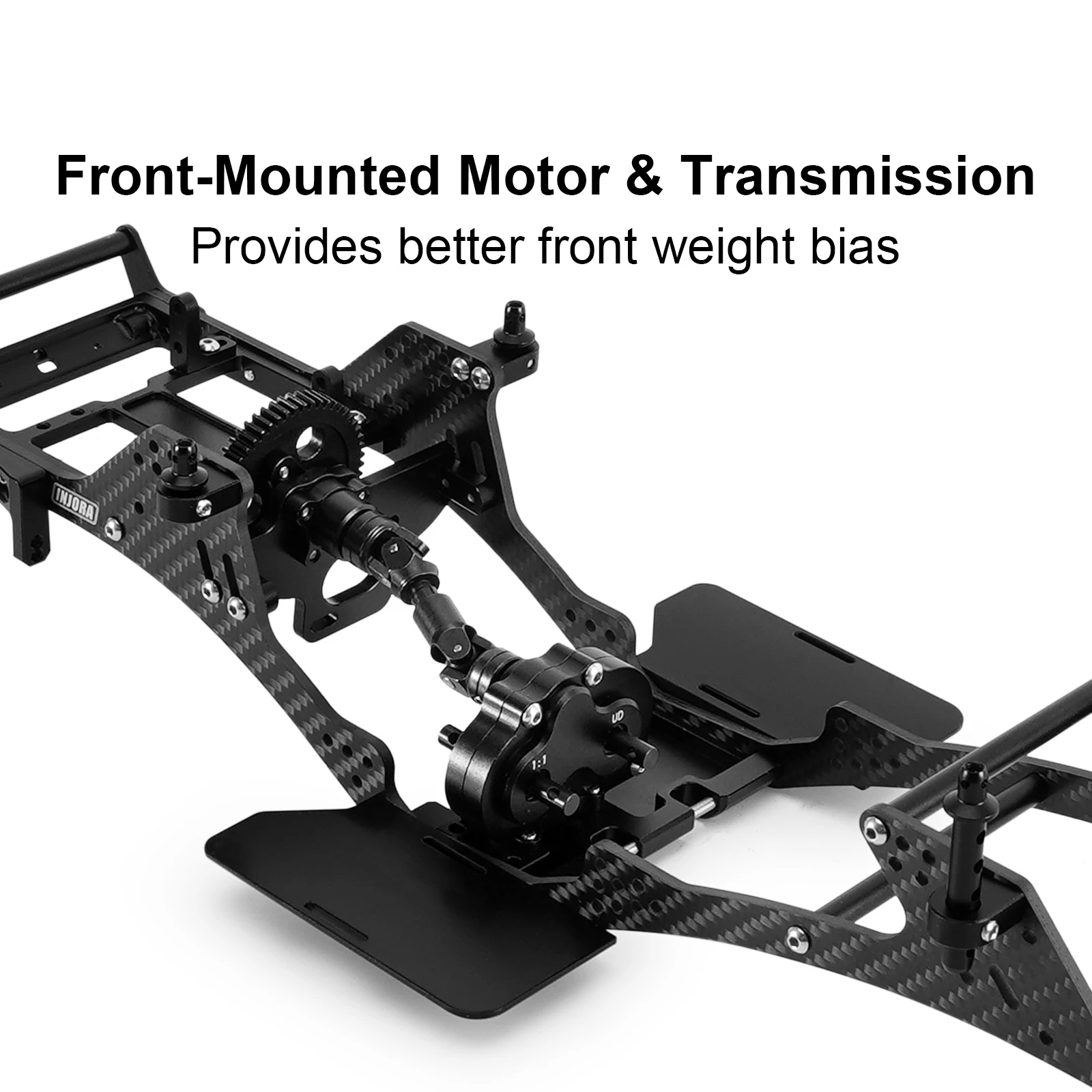

Front-Mounted Motor & Transmission: Forward-positioned motor and transmission setup provides better front weight bias

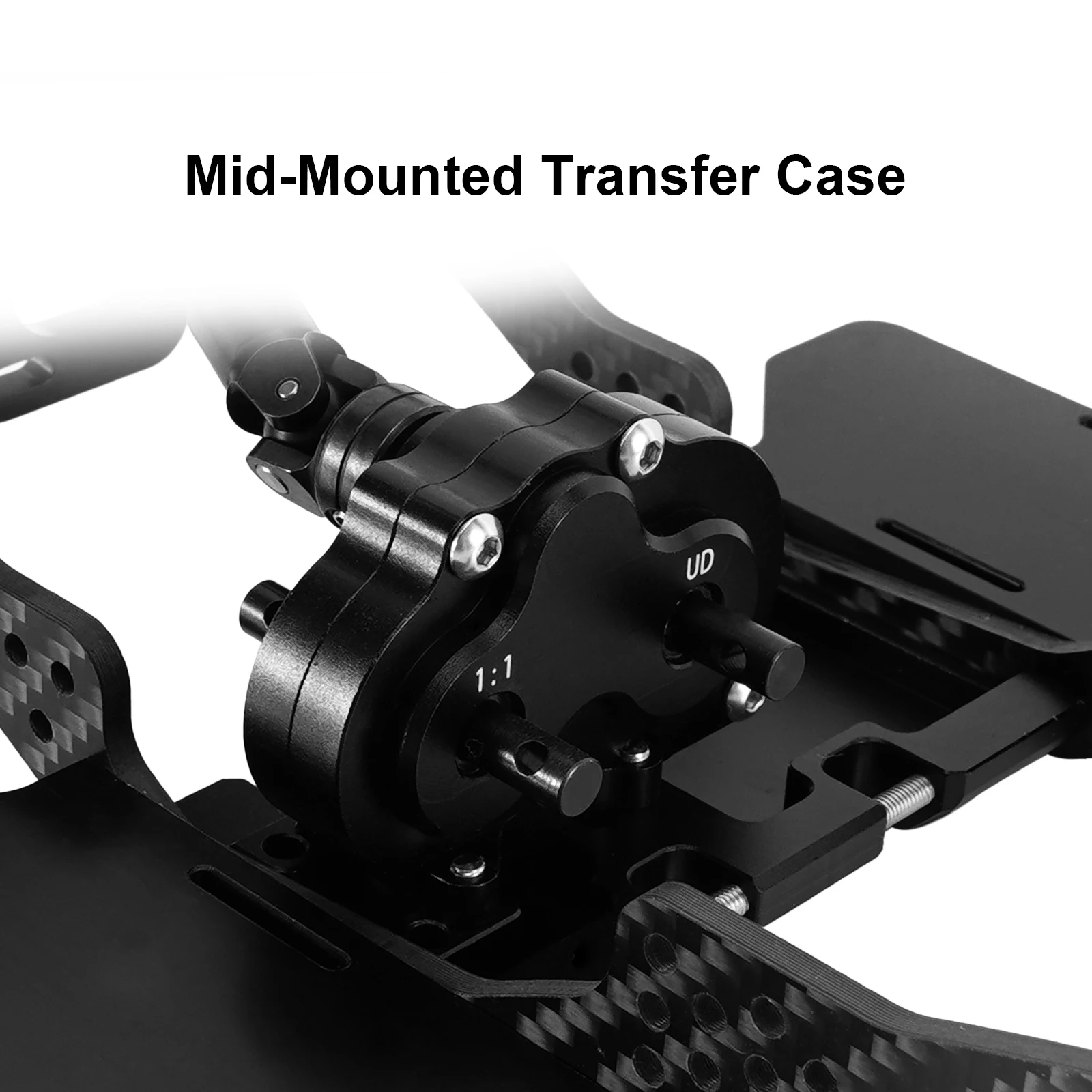

Selectable Transfer Case Output: Central transfer case offers 1:1 and 16.7% front overdrive options to improve crawling performance
Designed to fit TRX4 VP F9 SCX10 III AR45 and other axles—perfect for DIY builds

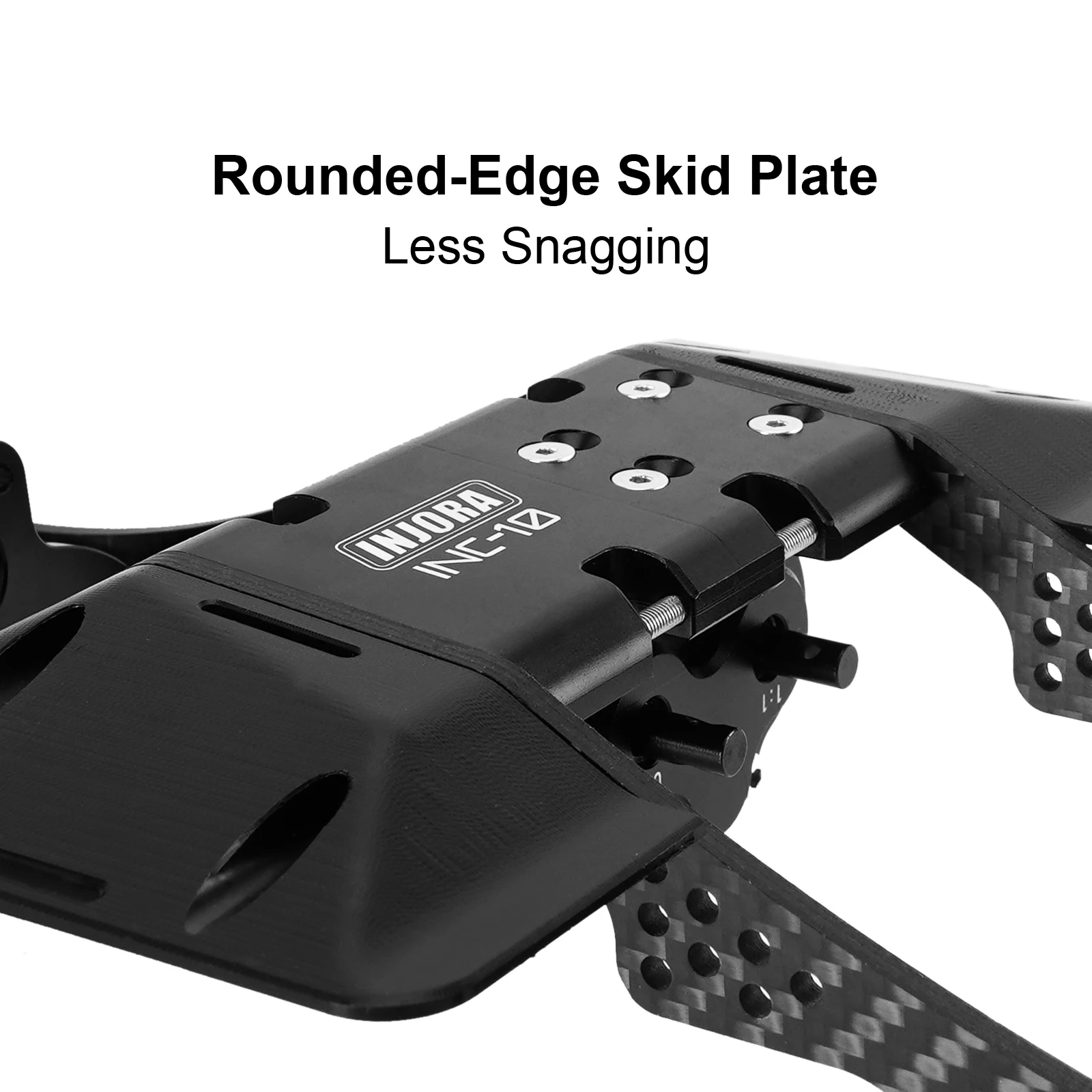

Durable POM Rock Sliders: Lightweight POM rock sliders protect the chassis sides and provide convenient mounting space for ESC receiver
CMS with Panhard Support: Supports chassis-mounted servo (CMS) setups with Panhard bar compatibility
Servo Winch Ready: Designed to accommodate standard-size servo winches for enhanced recovery capabilities
Chassis Specifications:
Part Number: INC-10F

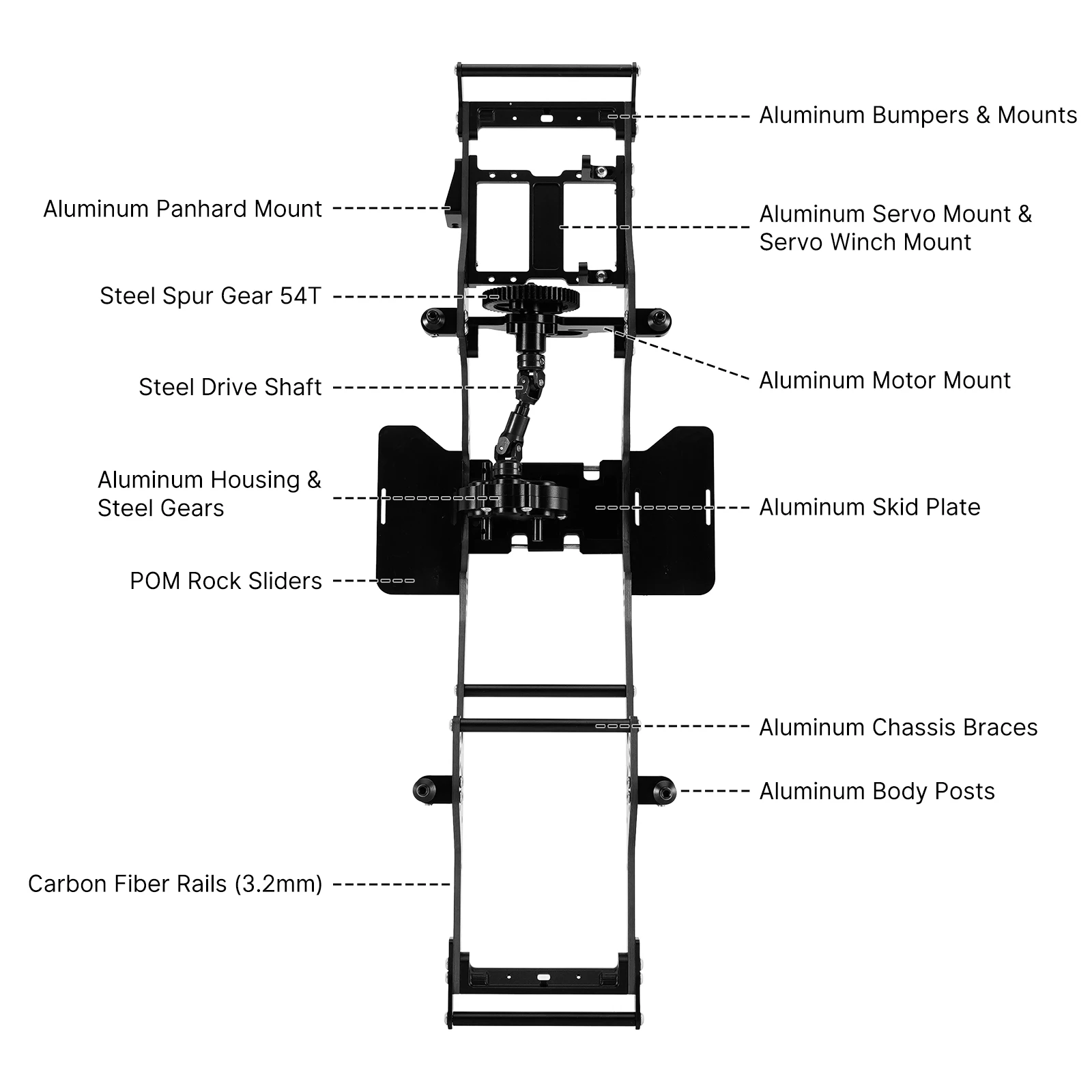

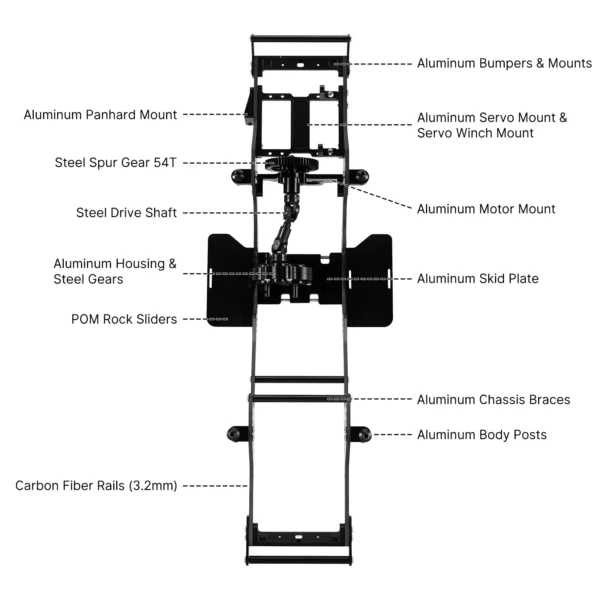

Material: Carbon Fiber Aluminum (see pictures for details)

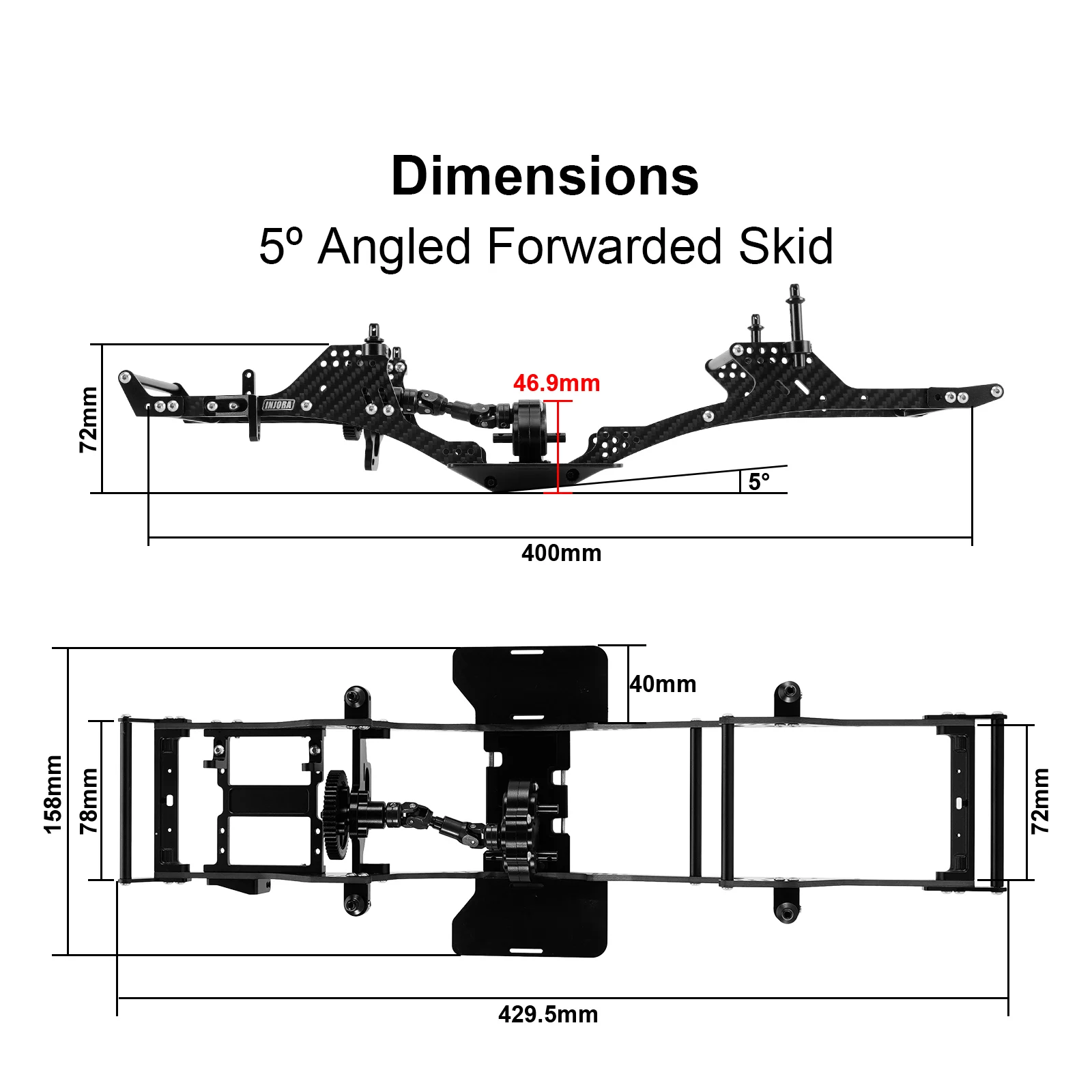

Skid Angle: 5°
Rails Thickness: 3.2mm
Dimensions: 429.5*78mm
Total Weight: Approx.463g
Servo Mounting Method: CMS (Chassis Mounted Servo)
Spur Gear: 0.8mod 54T (Hardened Steel)
Motor Pinion: 0.8mod 11T (Fit 3.17mm shaft motors)
Transfer Case Specifications:
Housing Material: Aluminum
Gears Material: Hardened Steel
Input Gear: 20T
Front Output Gear (OD): 40T
Rear Output Gear: 48T
Pacakge List:
1 * Set INC-10F Chassis Kit
