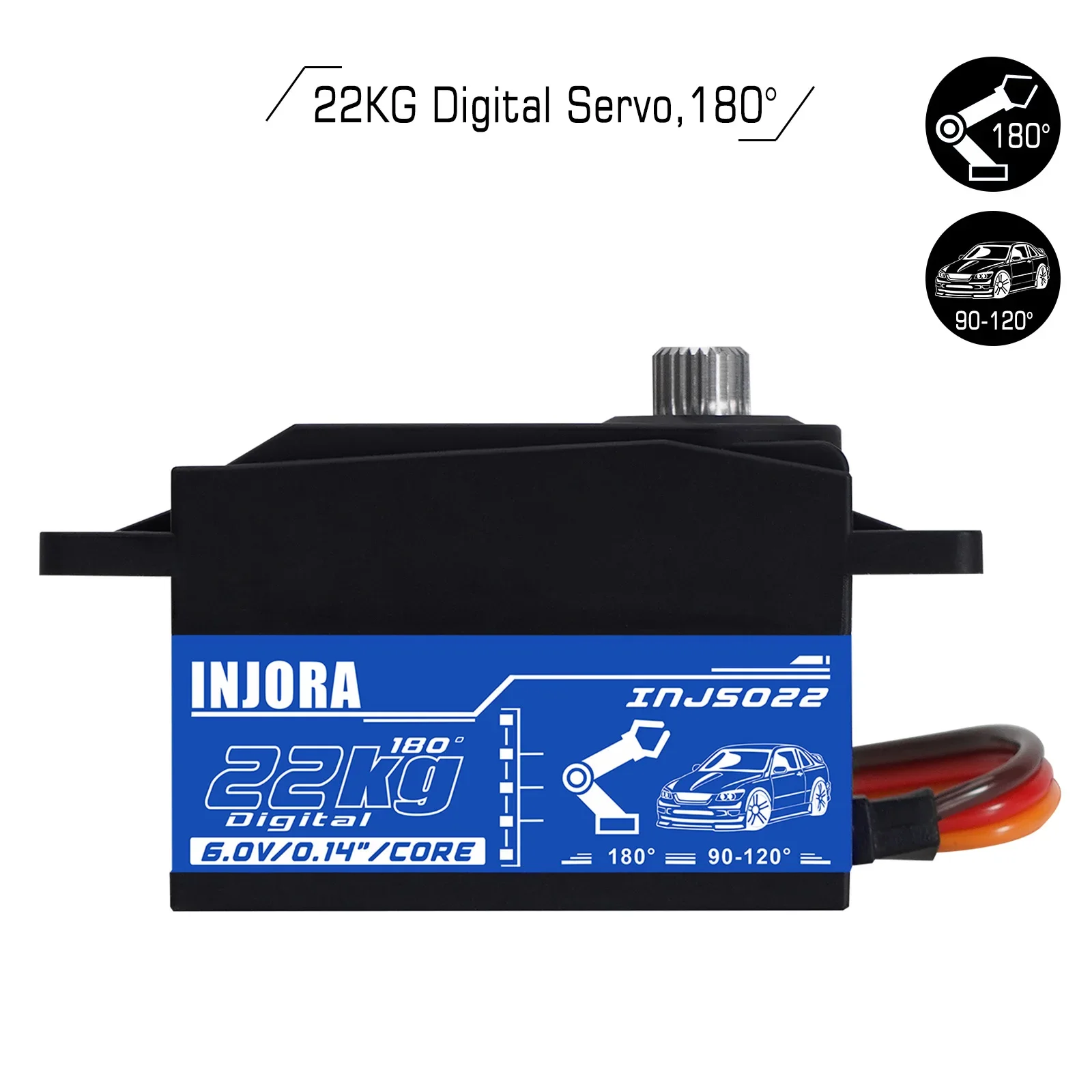

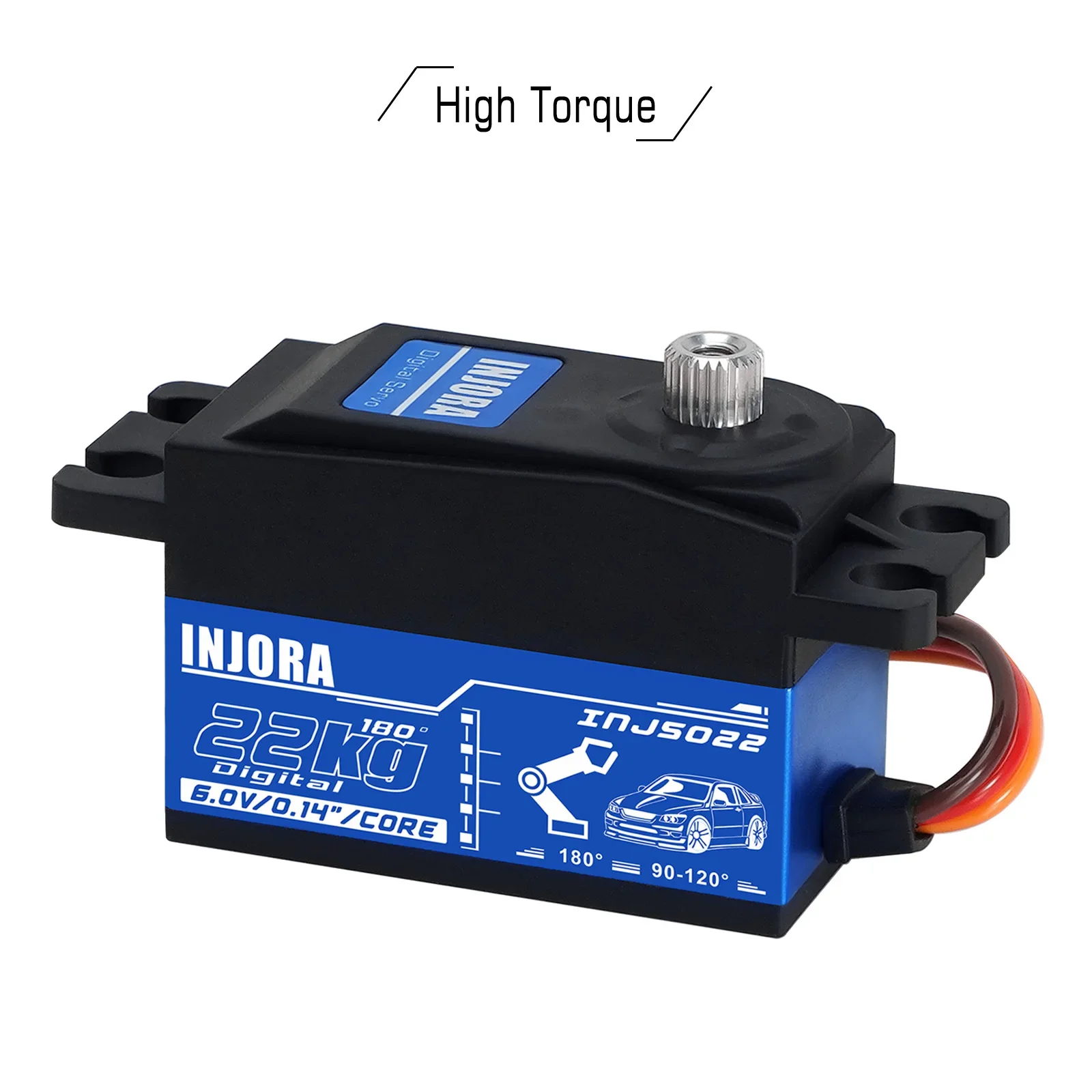

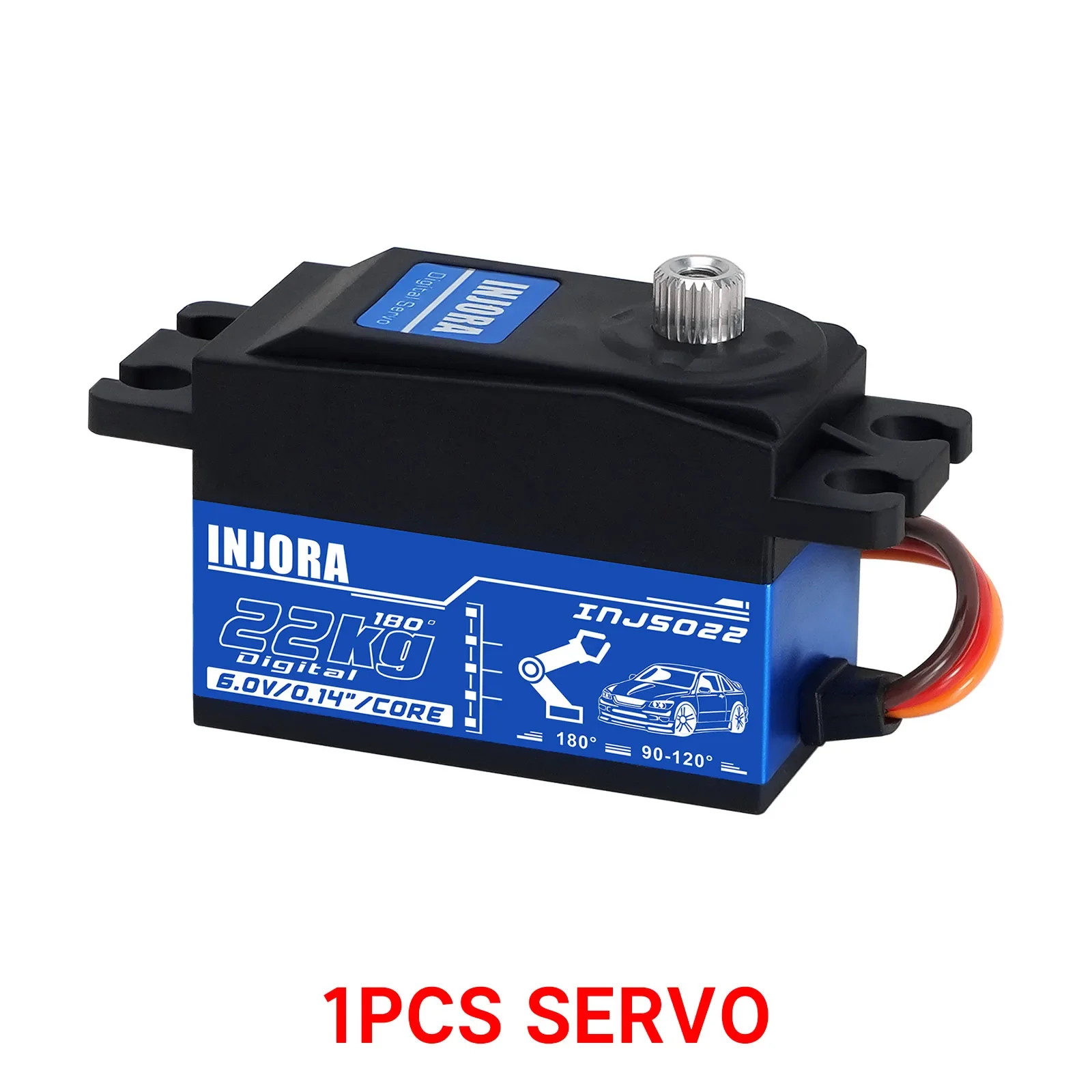

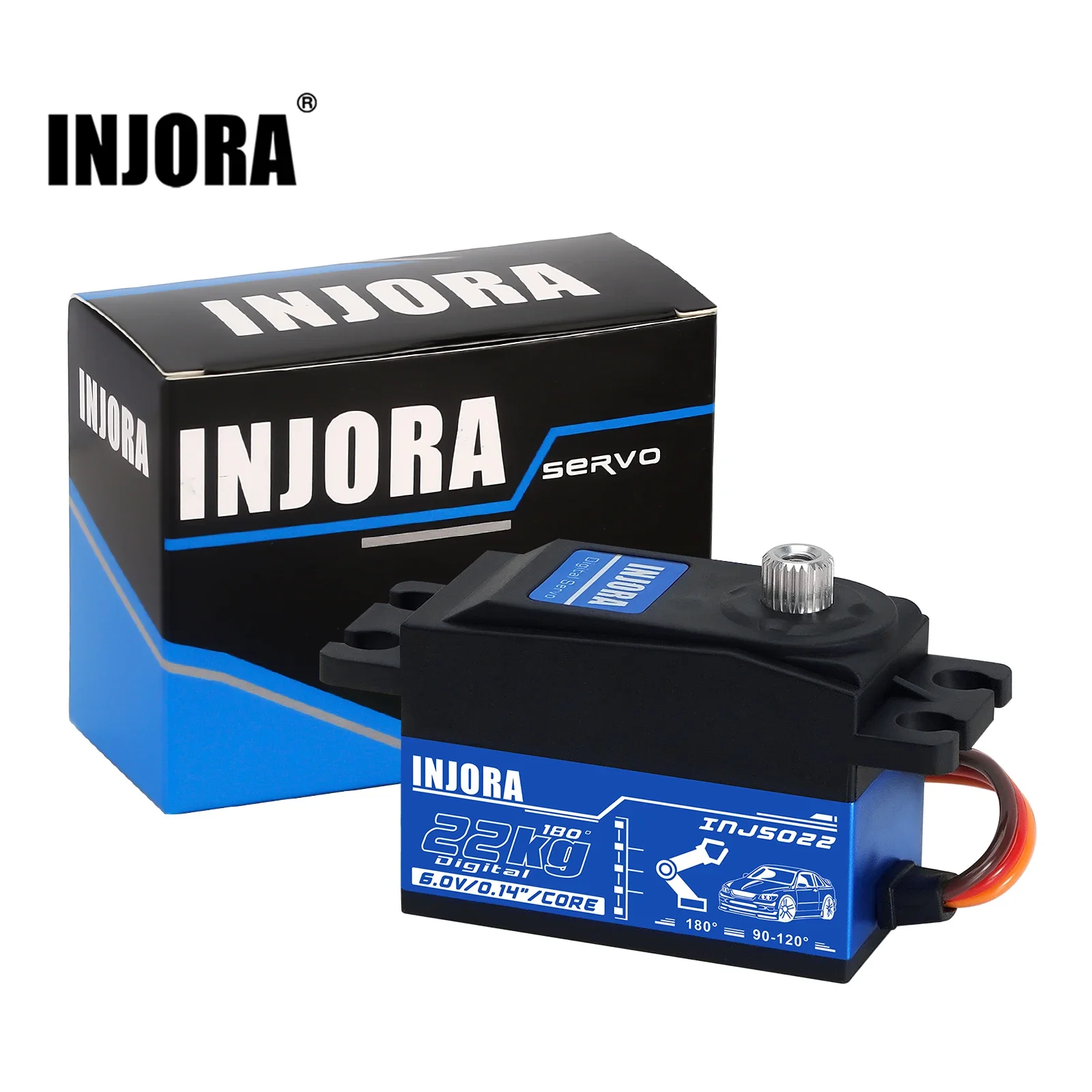

INJORA INJS022 22KG Low Profile Digital Servo for 1/10 RC Car Robot Model

Features:

Low Profile case saves space and weight

Full metal gears and dual ball bearings

Plastic case with aluminum center band

0.17 transit speed and 17.6kg of torque @ 4.8V

0.14 transit speed and 22kg of torque @ 6.0V

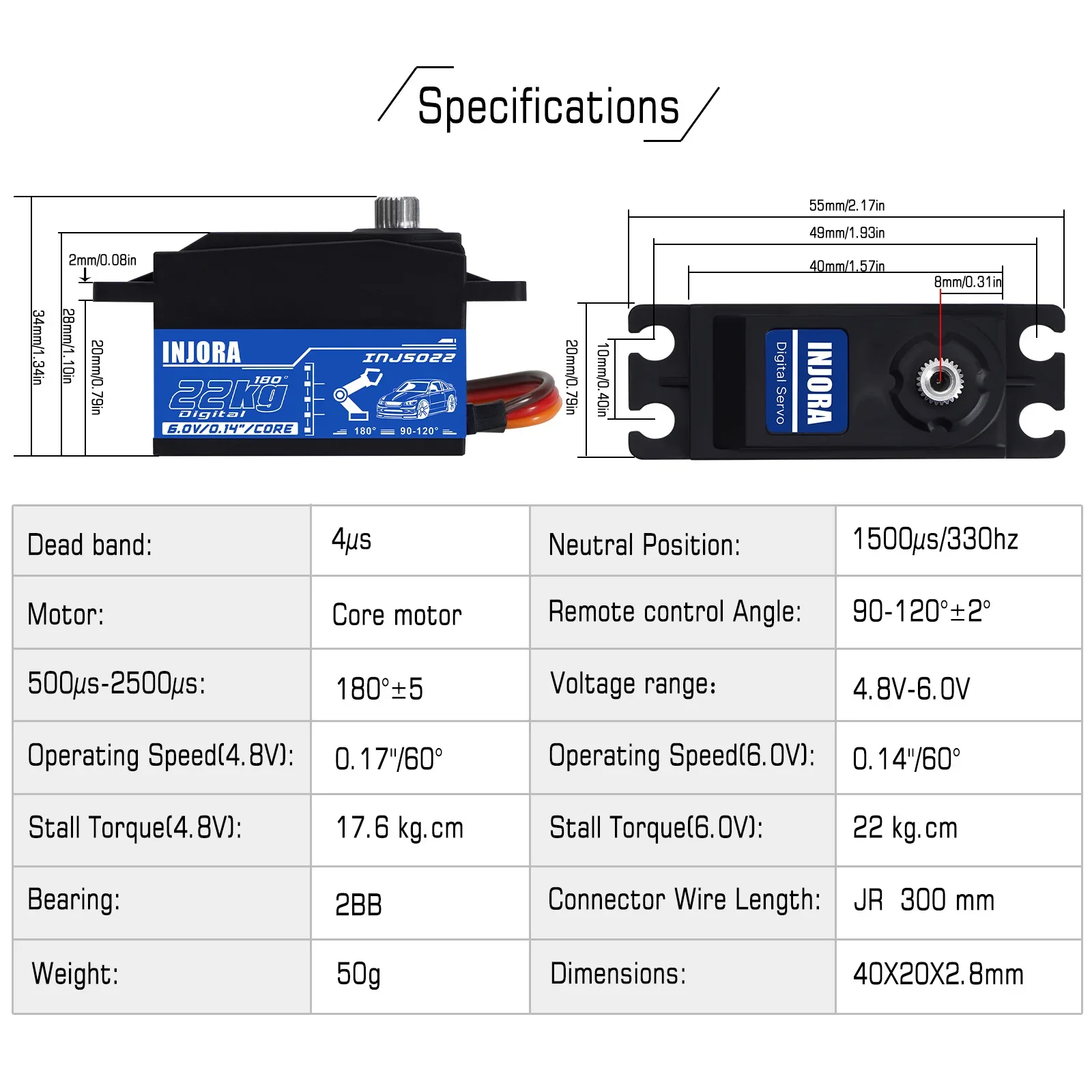

Servo Specifications:

Item Number: INJS022

Waterproof: NO

Dead band: 4ﾎｼs

Neutral Position: 1500ﾎｼs/330hz

Bearing: 2BB

Motor: Core motor

Remote control Angle: 90-120ﾂｰﾂｱ2ﾂｰ

500-2500ﾎｼs Angle: 180ﾂｰﾂｱ2ﾂｰ

Voltage range:4.8V-6.0V

Operating Speed(4.8V): 0.17”/60ﾂｰ

Operating Speed(6.0V): 0.14”/60ﾂｰ

Stall Torque(4.8V): 17.6 kg.cm

Stall Torque(6.0V): 22 kg.cm

Weight: 50g

Spline: ﾎｦ5.9 25T

Dimensions: 40X20X28.8mm

Connector Wire Length: JR 300mm

Servo Arm Specifications:

Material: Aluminum

Color: Red

Weight: 4g

Teeth: 25T
