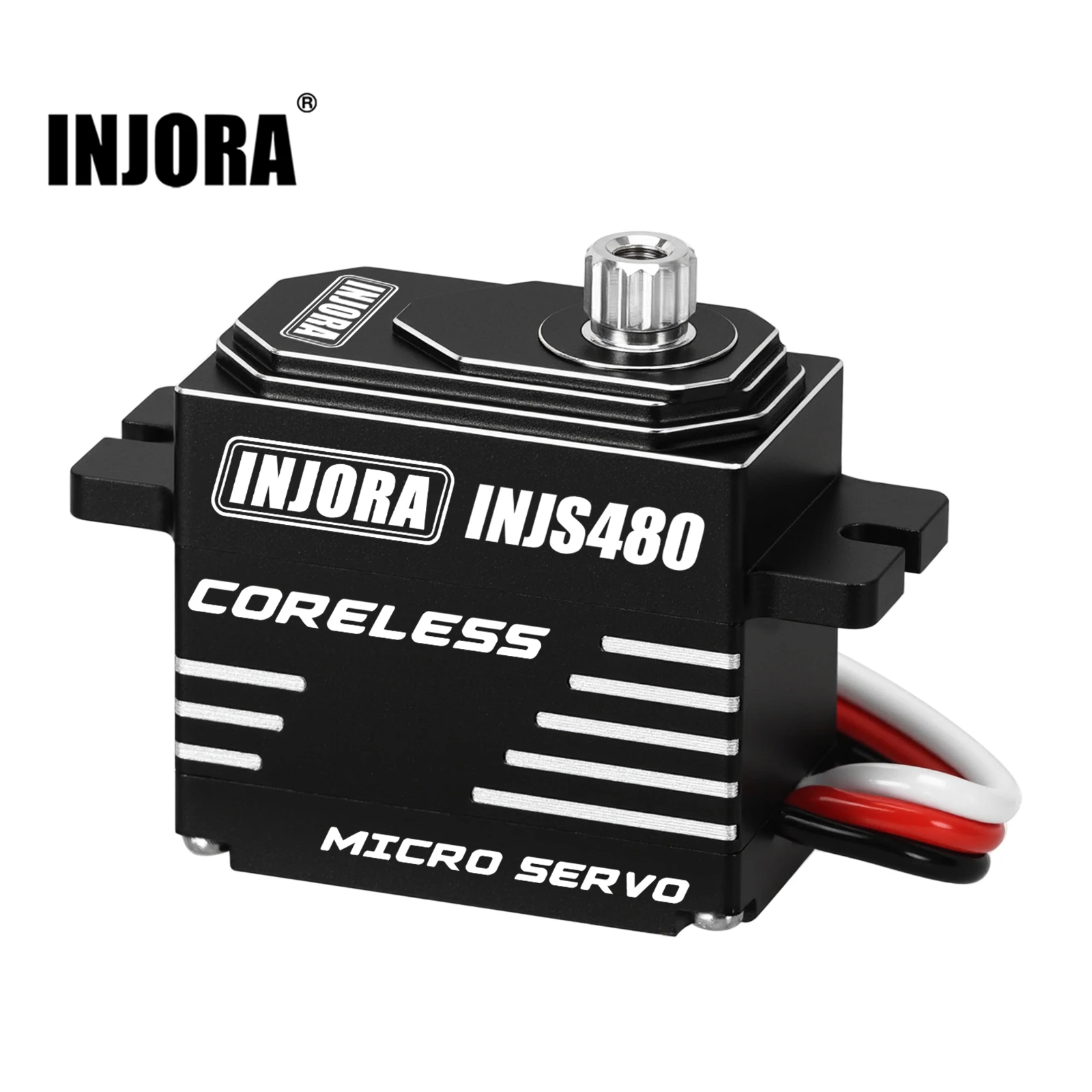

INJORA INJS480 Coreless Micro Servo with Servo Saver for Losi Micro B Micro T

Features:

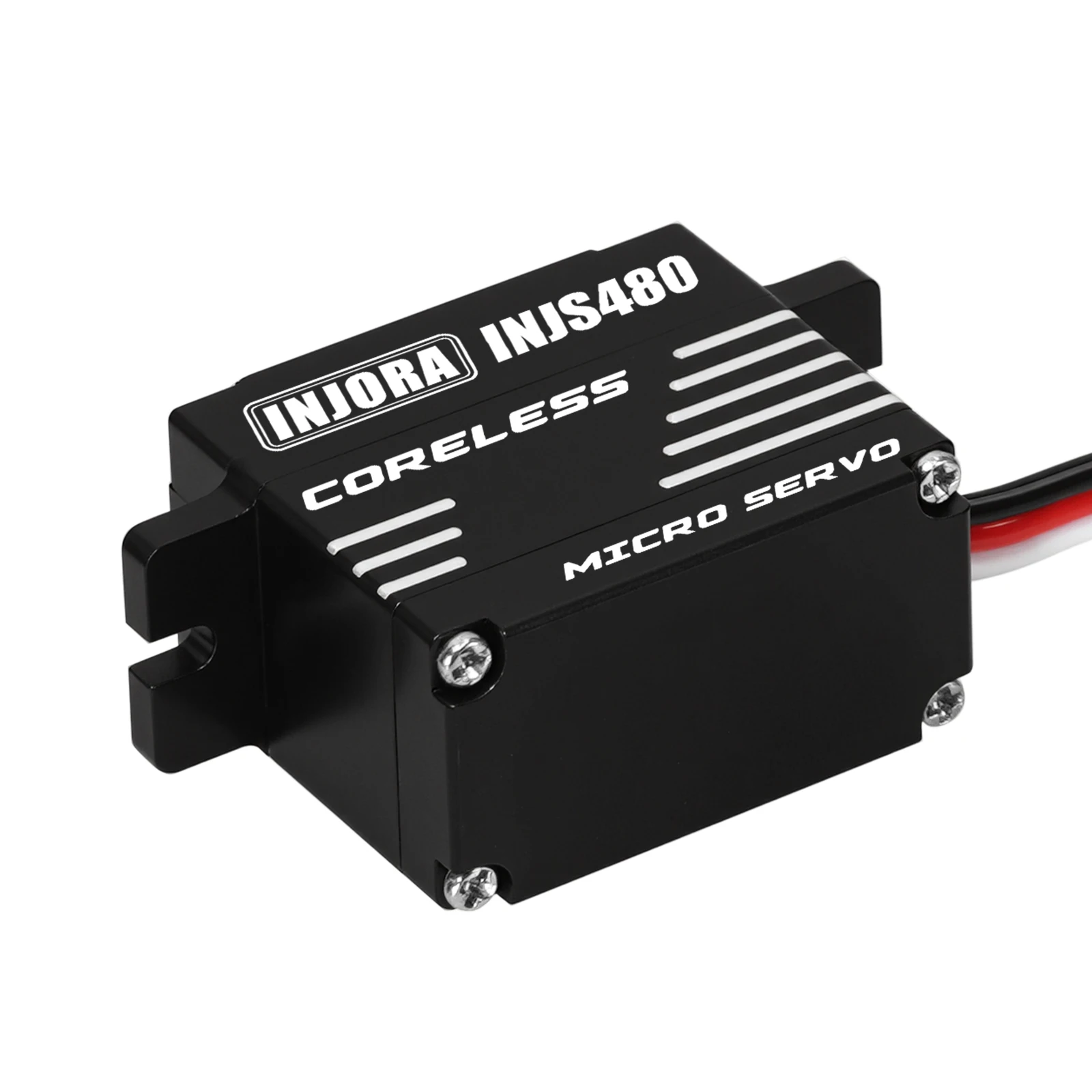

All-Aluminum Case – Strong durable housing with excellent heat dissipation

Coreless Motor – Delivers faster response smoother operation and long-lasting reliability

Aluminum Servo Saver – Protects gears from impacts and extends servo life

High Performance – Higher speed and torque for stronger more precise steering

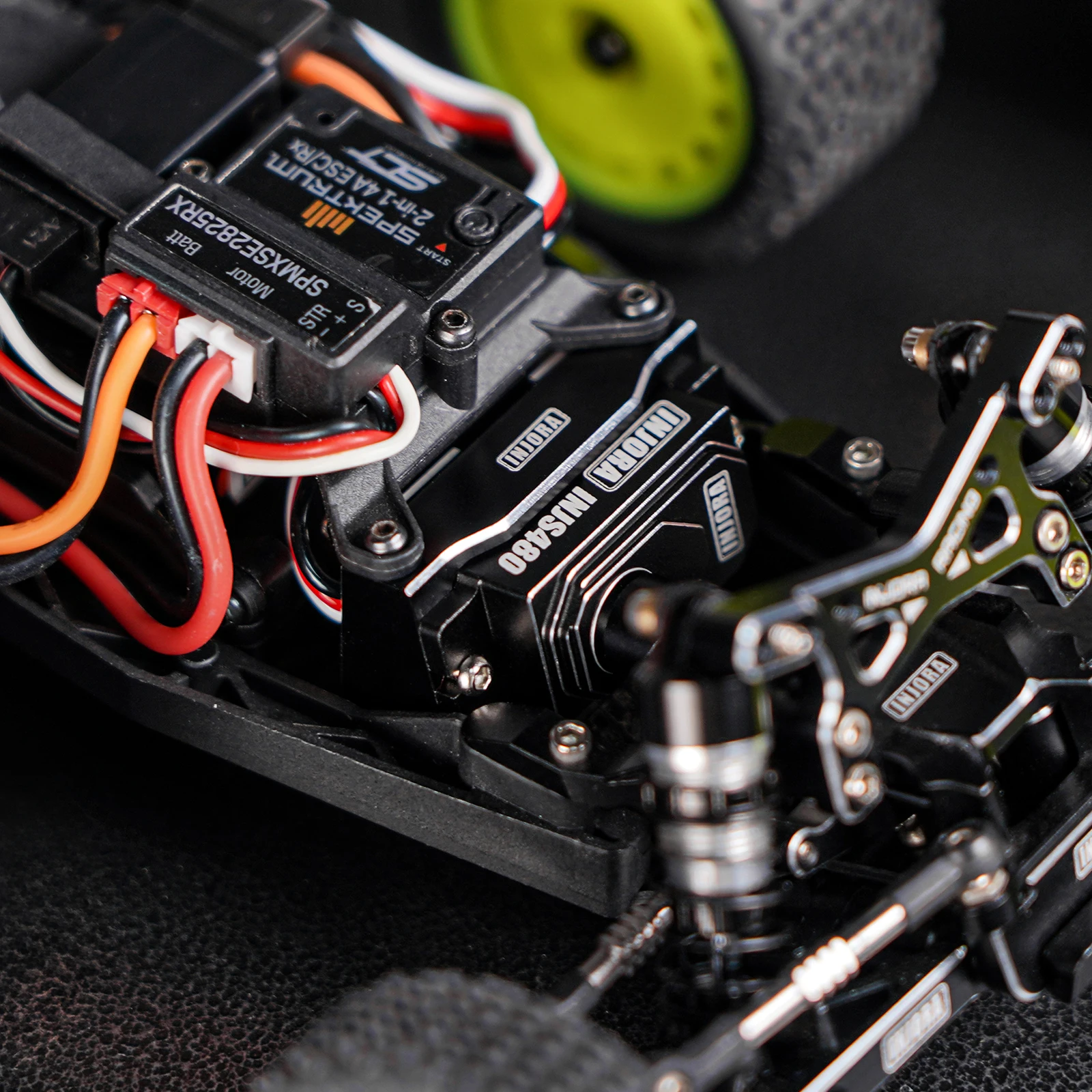

Matches Stock AS-1 Dimensions – Perfect fit and easy upgrade for Losi Micro-B and Micro-T

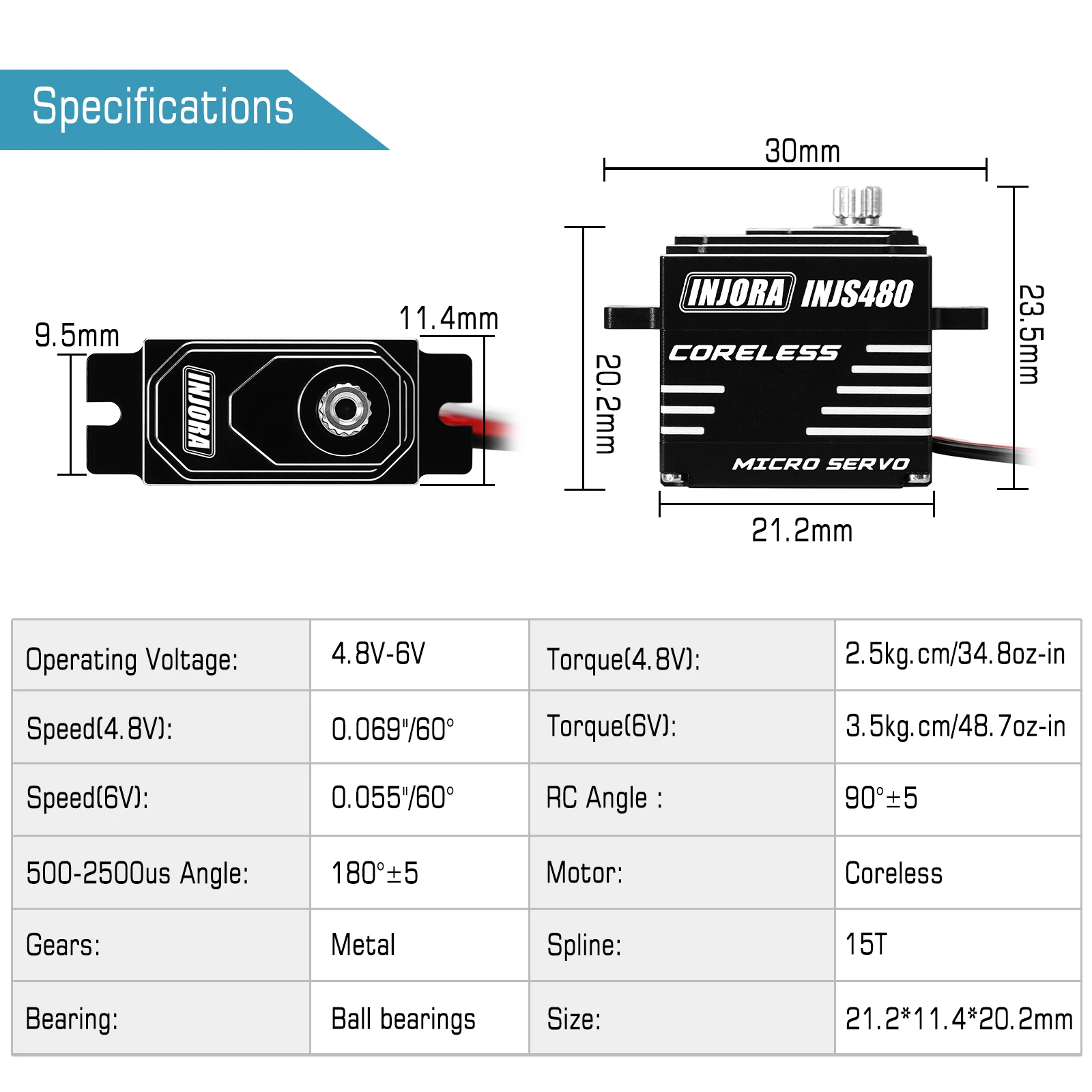

Specifications:

Part Number: INJS480

Operating Voltage: 4.8V-6V

Torque(4.8V): 2.5kg.cm

Speed(4.8V): 0.069″/60°

Torque(6V): 3.5kg.cm

Speed(6V): 0.055″/60°

RC Angle: 90°±5

500-2500μs Angle: 180°± 5

Motor: Coreless

Gears: Metal

Spline: Φ3.9 15T

Bearing: Ball bearings

Size: 21.2*11.4*20.2mm

Weight: 9.8g

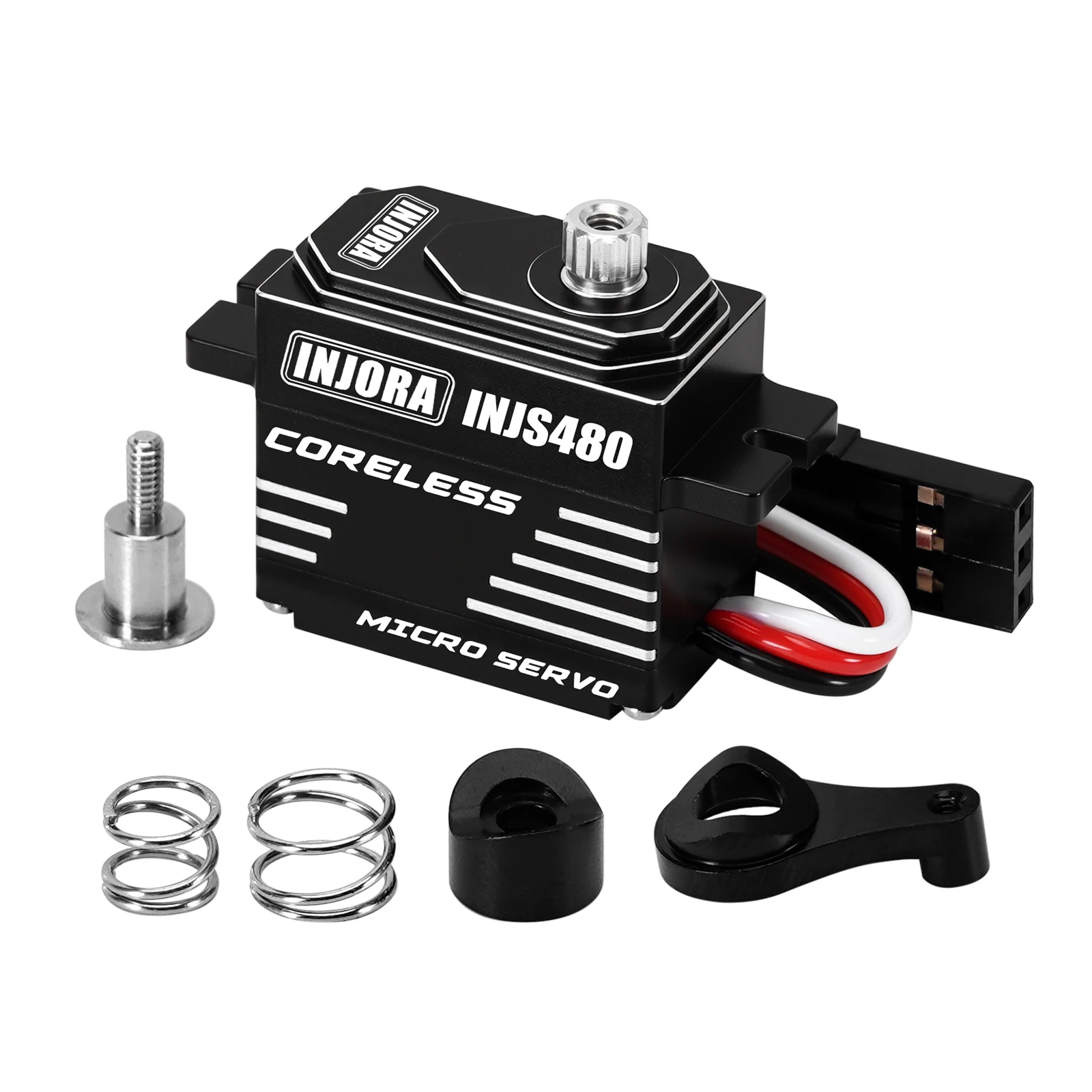

Package List:

1 * Coreless Servo

1 * Servo Saver
