INJORA MBL32 G2 Waterproof Brushless ESC & 1721 Purple Viper Outrunner Motor for 1/24 Axial SCX24

Features:

The INJORA MBL32 G2 based on the AM32 firmware is meticulously tailored for Micro crawlers and is programmable

Smooth and linear at low speeds powerful and aggressive at high speeds. Runs more quietly than brushed systems producing virtually no noise

MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V

Waterproof Design for all-weather performance

Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.

Multiple Protections: Low-voltage fail-safe and rotor lock protection

1721 Purple Viper outrunner motor equipped with a mounting plate to install on SCX24



ESC Specifications

Part Number: MBL32 G2

LiPo Cells: 2-3S

Continuous Current: 25A

Peak Current: 60A

BEC Output: 6.0V/7.4V adjustable

BEC Current: 3A

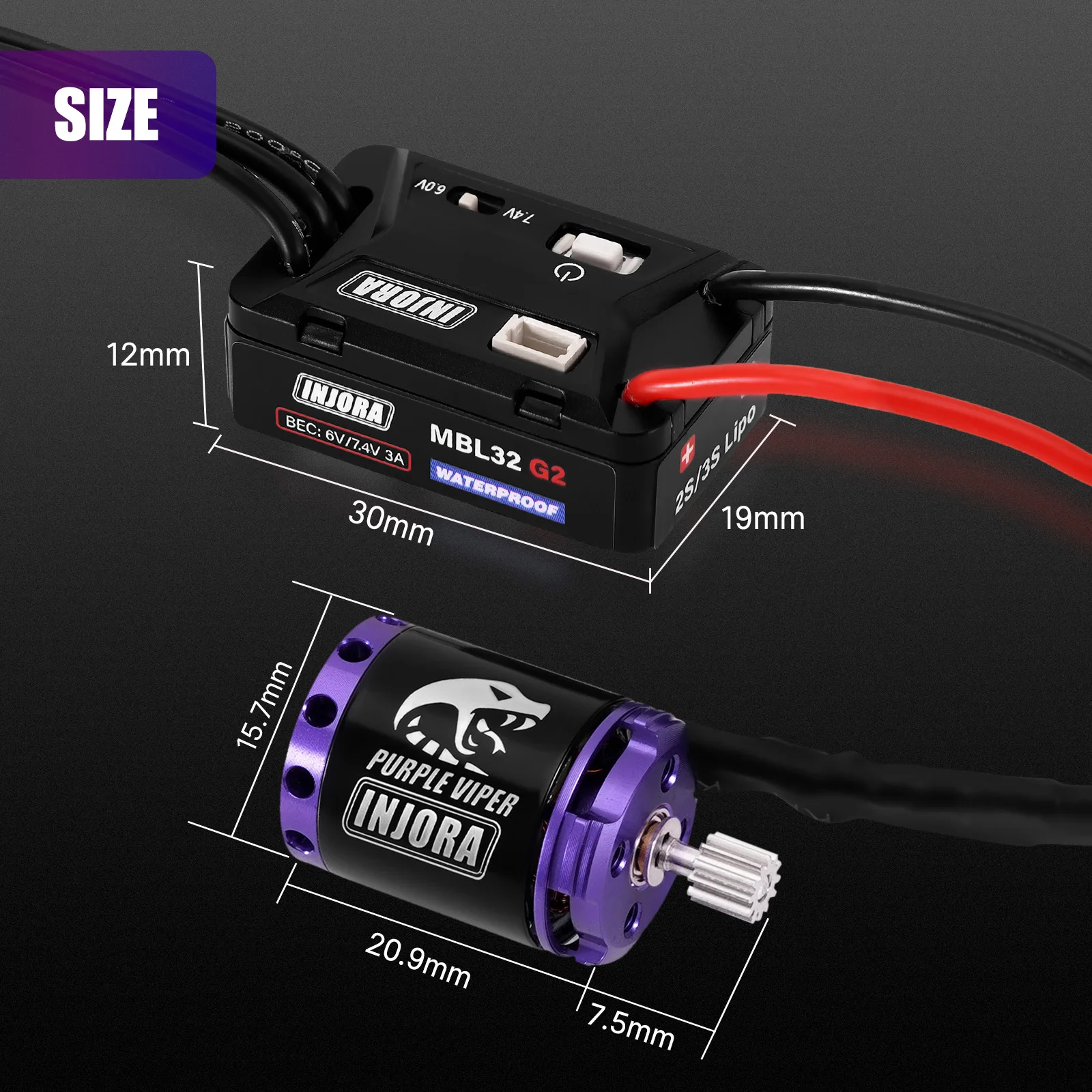

Dimensions (L*W*H): 30*19*12mm

Waterproof: Yes

App Tuning: Not Supported

Weight: 0.45oz (13g)

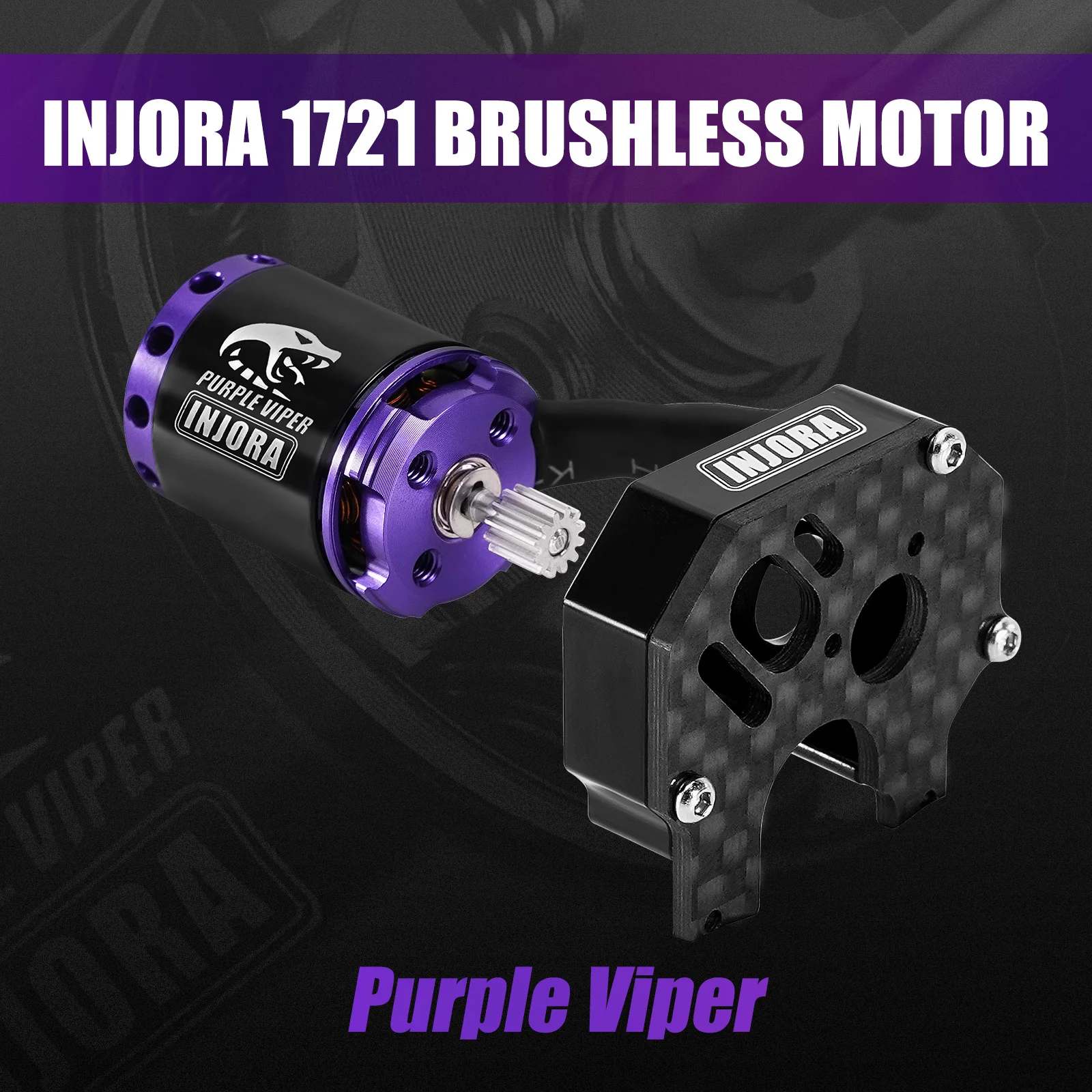

Motor Specifications:

Model Number: 1721

Motor Type: Sensorless Brushless Outrunner

RPM/Volt: 2800KV

Motor Poles: 14

Sine Mode Power: 7

No-Load Current (11.1V): 0.7A

Max Peak Current: 30A

Motor Connectors: PH2.0 3Pin

Dimensions: Φ16.7*20.9mm

Motor Qutput Shaft: Φ1.7mm

Motor Pinion: 0.3mod 12T

Weight: 19g

Waterproof: Yes

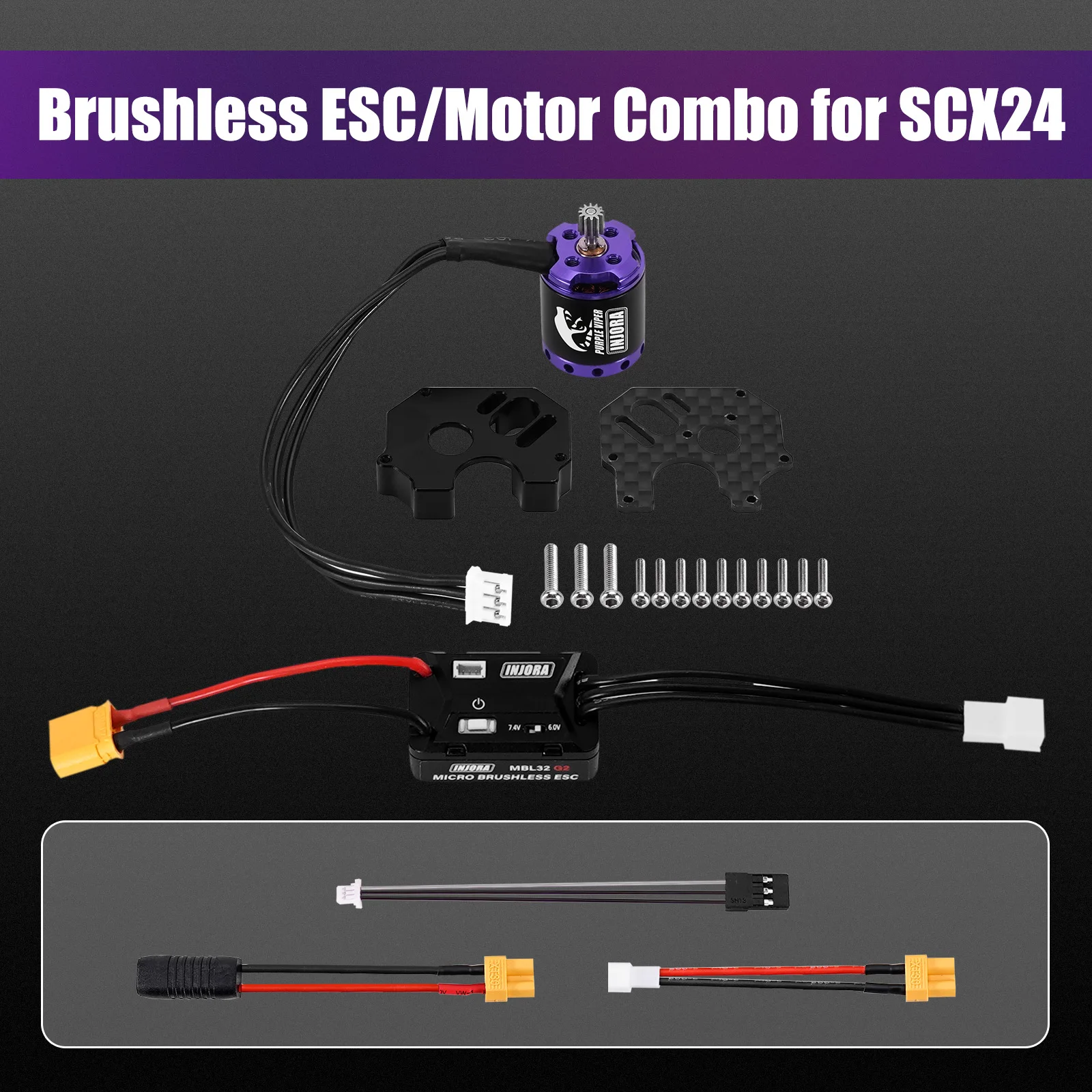

Package List:

1 * Micro Brushless ESC

1 * USB programmer Card

1 * 1721 Purple Viper Motor

1 * Receiver Connector Cable

1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)

1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)

1 * Instruction Manual
