NEEBRC 23KG Low Profile Digital Servo High Torque Full Metal Gear for 1/8 1/10 RC Cars Axial Scx10 Crawler Plane Accessories
NEEBRC 23KG Low Profile Digital Servo High Torque Full Metal Gear for 1/8 1/10 RC Cars Axial Scx10 Crawler Plane Accessories
NEEBRC 23KG Metal Gear 15kg Short Body Low Profile RC Servo Motor for 1/8 1/10 RC Cars Axial Scx10 Crawler Plane Accessories
Specifications:
Item name: NEEBRC NB-H015
Quantity: 1pcs
Operating Voltage : 6.0~7.4V DC
Max. Torque : 23.4kgfยทcm
No Load Speed : 6.0Vโค0.18sec/60ยฐ; 7.4Vโค0.15sec/60ยฐ
Stall Current:6.0V โฆ3600mA;7.4Vโฆ4200mA
Consumption Current* (No Load):6.0V โฆ90mA;7.4Vโฆ100mA
Max. Operating Travel Angle:180ยฐ ยฑ10ยฐ (500~2500 us)
Dead Band Width: โค 2us
Mechanical Limit Angle: 360ยฐ
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS

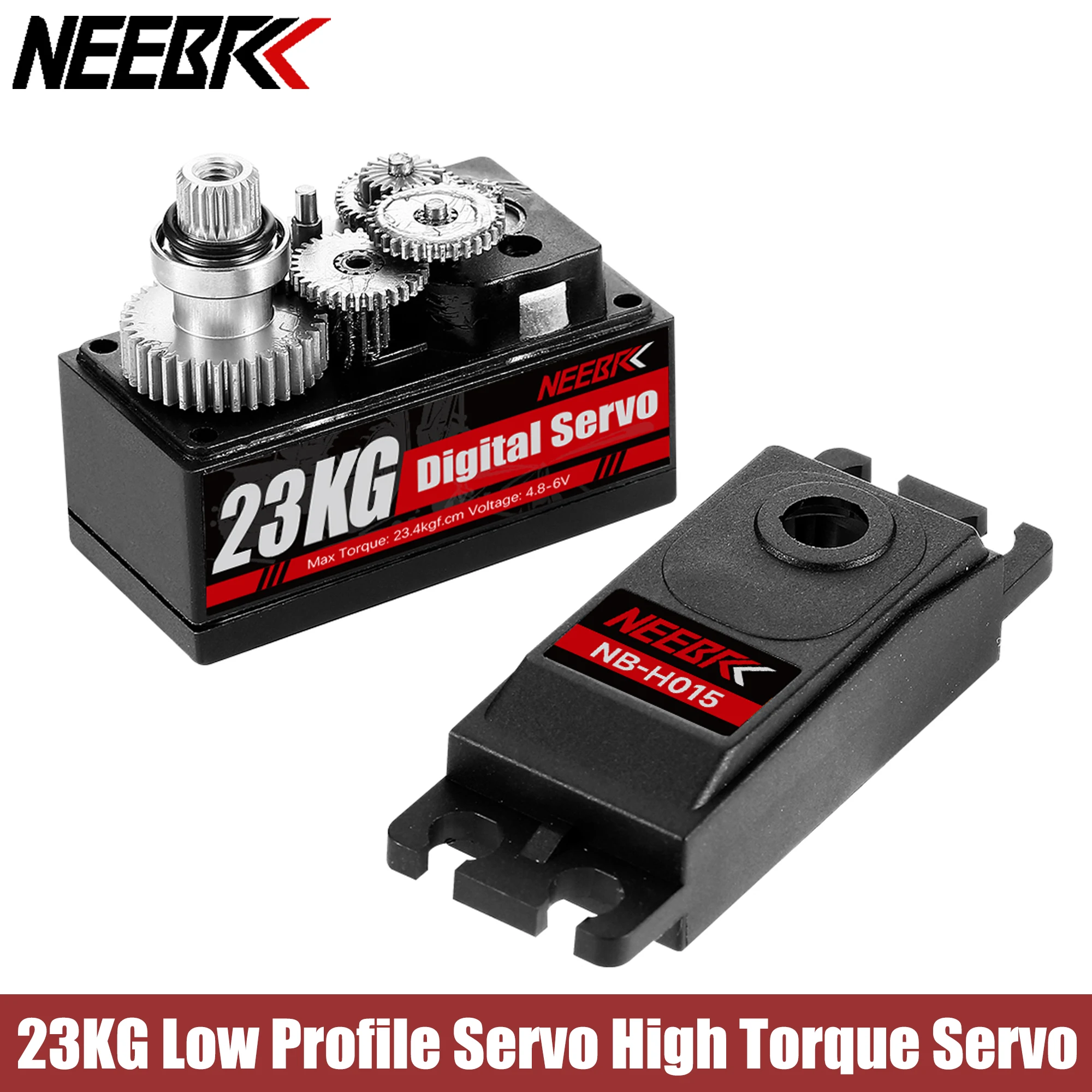

Gear Set Material : Metal gear
Weight: 42.5g

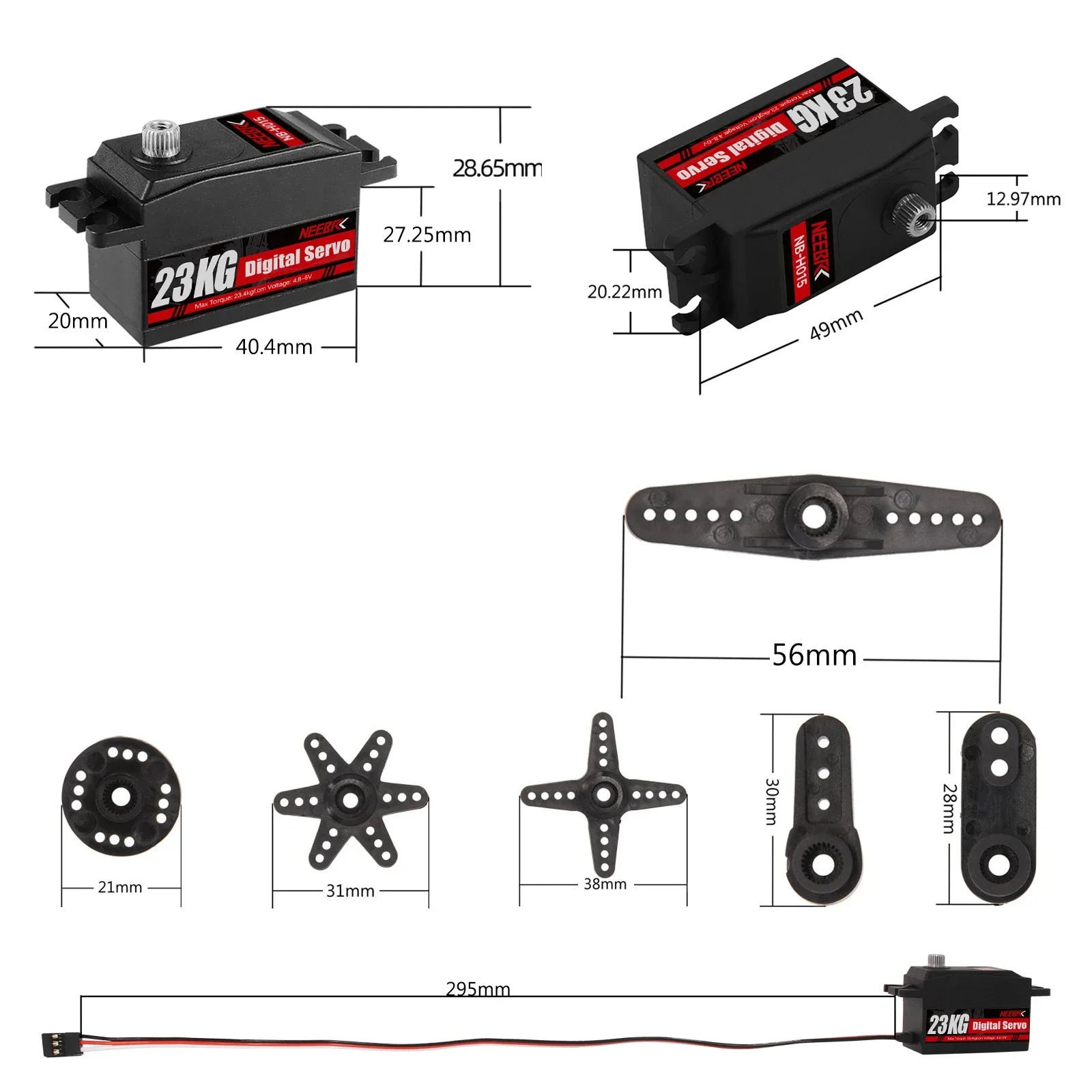

Size: 56 ร 23.22 ร 28.65mm
Length of Connector cable: JR 270MMยฑ5mm (exposed without plug)

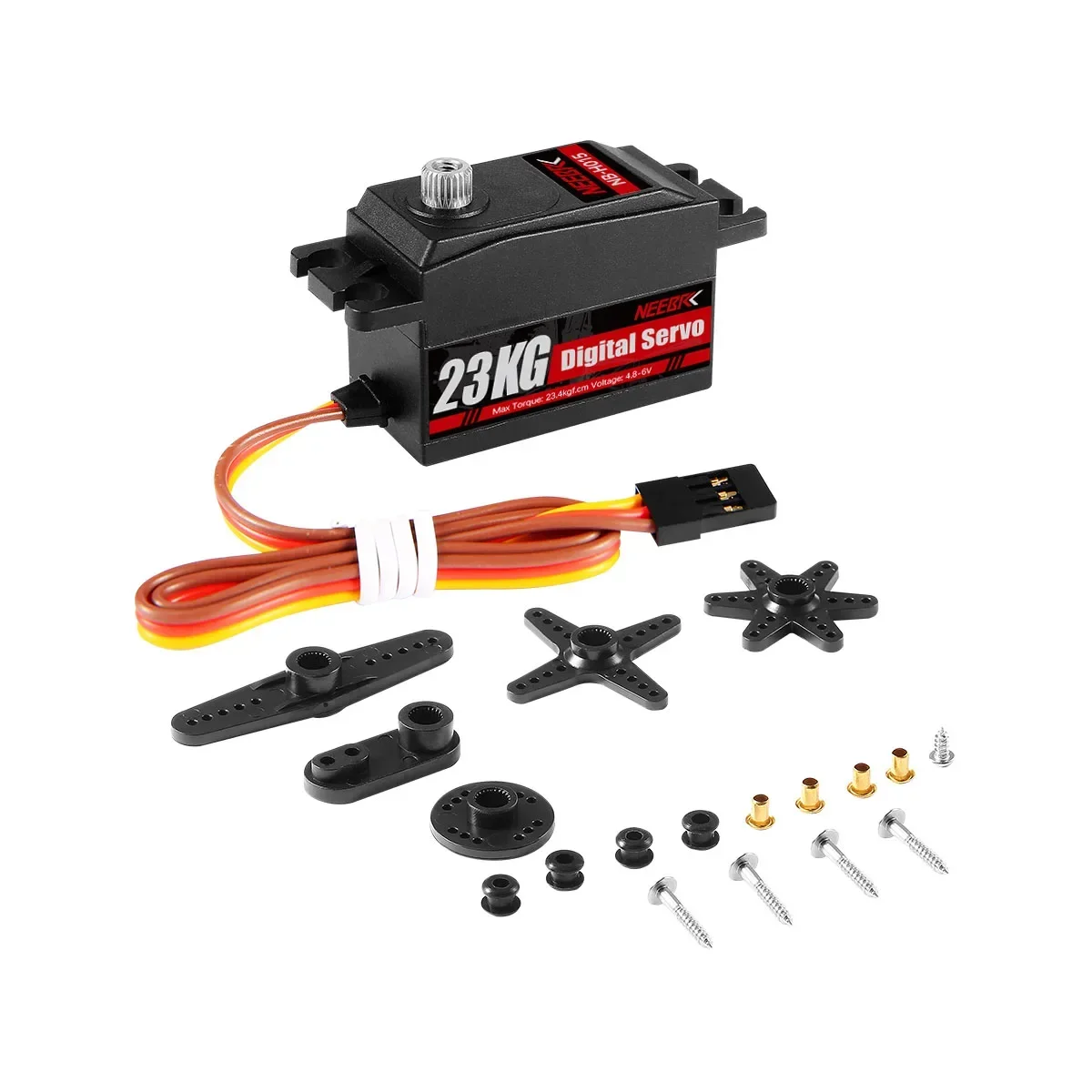

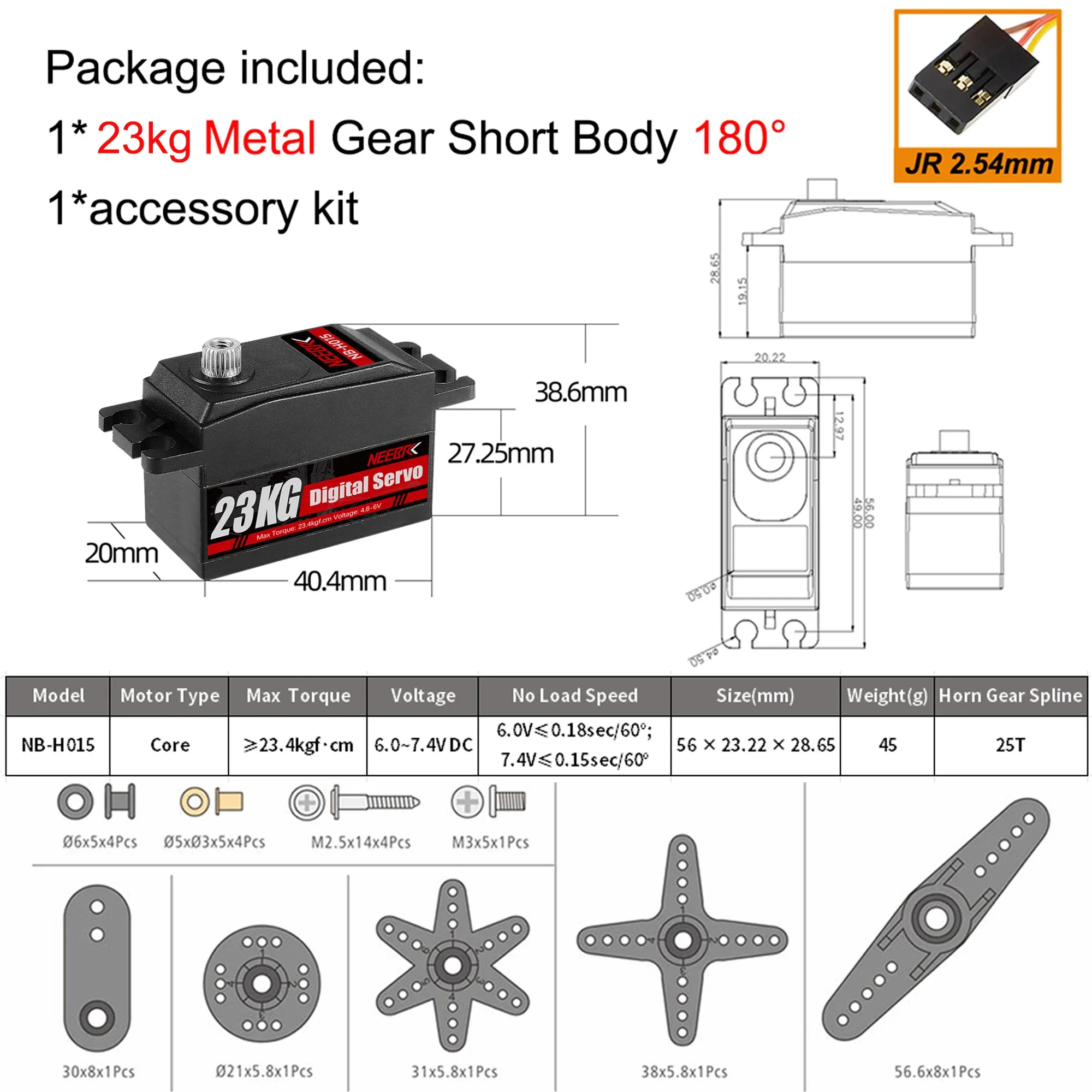

Package included:
1 * 23KG Digital Servo
1 * Servo Arm Accessories
Note:
1.Due to the difference between different monitors the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
