NEW Bass AG Preamp Bass Effect Pedal With DI 4-Band EQ Headphone Out AUX In fast response a wide tone Clone Aguilar AG Preamp

AG Preamp

This AG Made By BJF Design

Clone Aguilar AG Preamp

The AG preamp/direct box is a highly flexible tone shaping tool for both stage and studio. Revered for its tight fast response and wide tonal flexibility.

AG Preamp Pedal

Revered for its tight fast response and wide tonal flexibility the AG preamp takes the beloved AG sound

and places it in a compact pedal. The AG preamp features a 4-band EQ and foot-switchable broadband

“deep” and “bright “controls for added depth and presence. Its 18-volt operation provides plenty of

headroom ensuring your sound stays clean and transparent. It also features a built-in headphone out and

aux in for silent practicing as well as a DI with pre/post and ground lift controls. The AG preamp is a

must-have for any bassist looking for a clean and transparent preamp with all the controls needed for

sculpting their sound.

Features:

• Analog preamp circuit inspired from the AG 700 amplifier

• 4-band EQ with treble bass low midrange and high midrange controls

• Foot-switchable broadband “Bright” and “Deep” EQ controls

• DI out with pre/post and ground lift controls

• 1/8” aux-in and 1/8” headphone out for silent practice

• Three-year limited warranty

Owner’s Manual

Manual Version 1.1

Functions

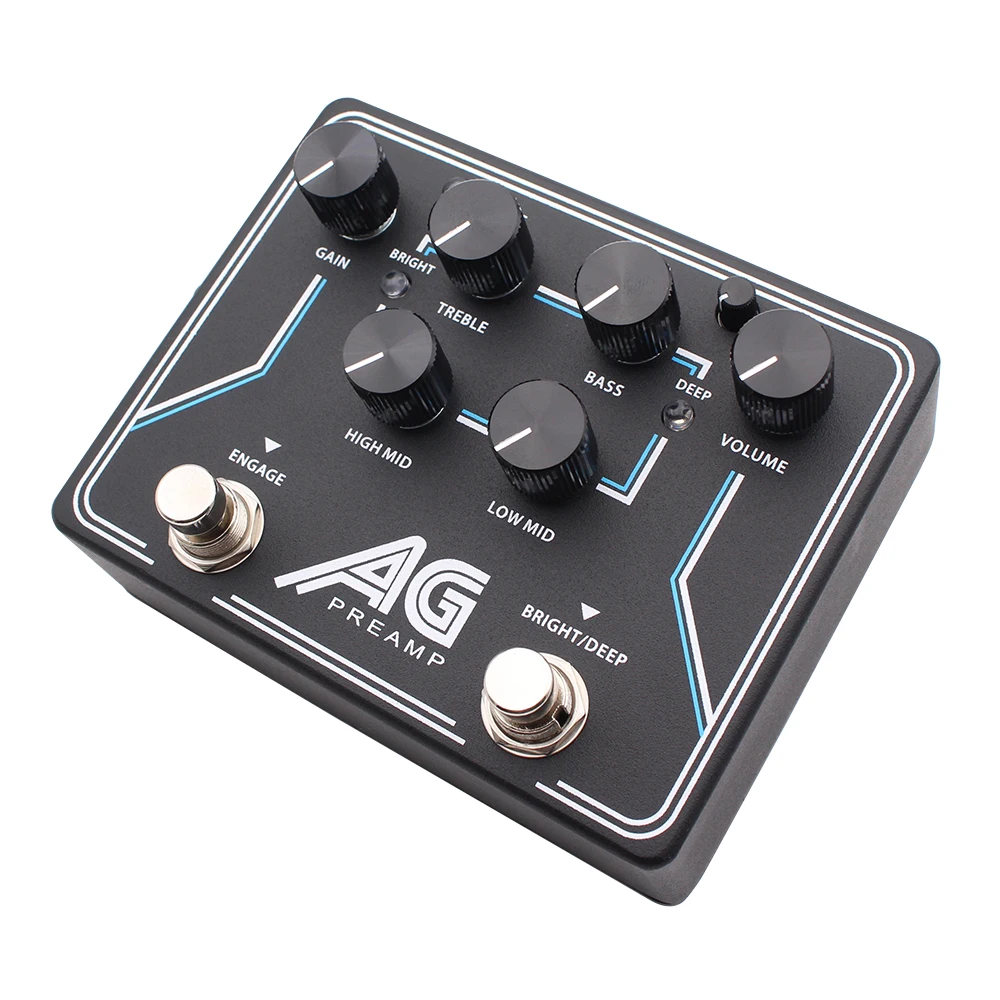

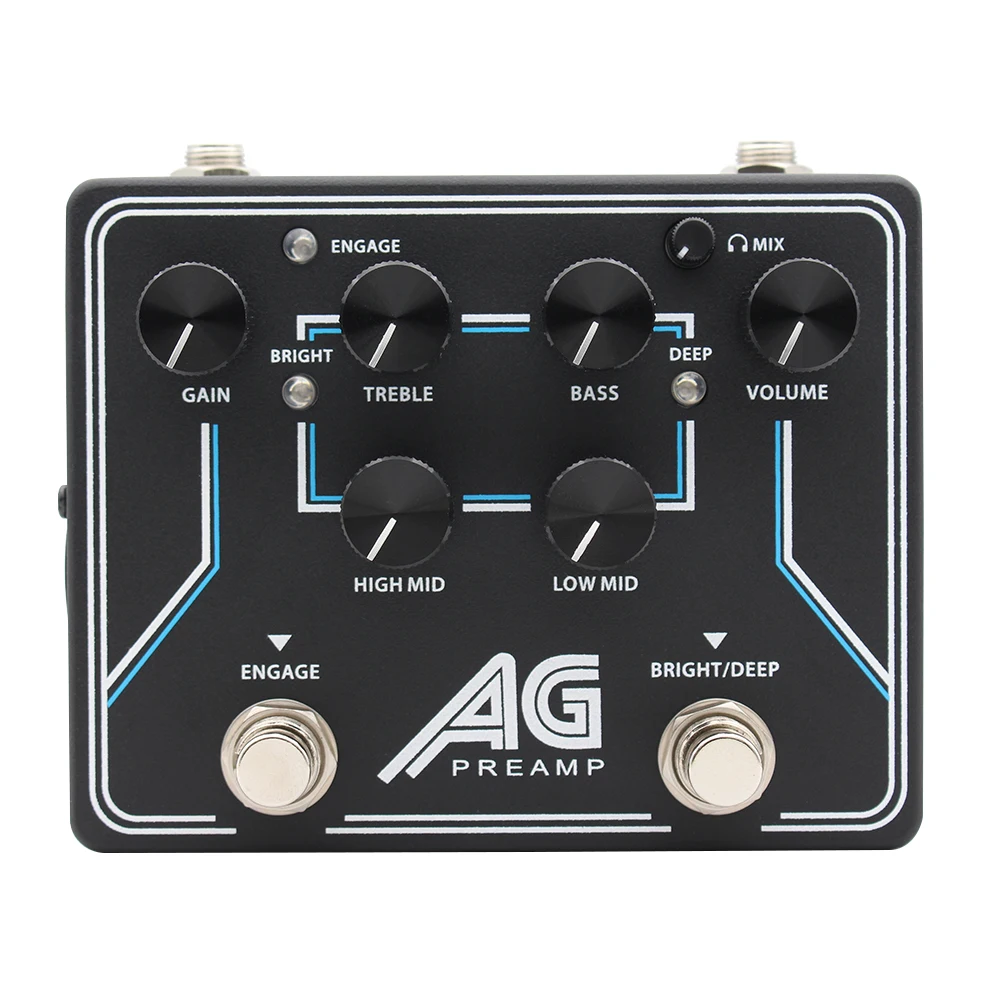

A. Top Panel:

Gain – Controls input sensitivity level

Treble – +/- 14 dB @ 4 kHz

Bass – +/- 17 dB @ 40 Hz

High Mid – +/- 14dB @ 800 Hz

Low Mid – +/- 15 dB @ 300 Hz

Volume – Controls output level

Engage – Toggles between on/bypass (blue LED indicates on)

Bright/Deep – Toggles through broadband “Deep” “Bright” or “Deep + Bright” (blue LED indicates on) The

frequencies for the boosts are:

Deep: +6 dB <250 Hz shelving Bright: +6 dB >3 kHz shelving

Headphone Mix – Controls mix of bass signal and aux-in in headphones

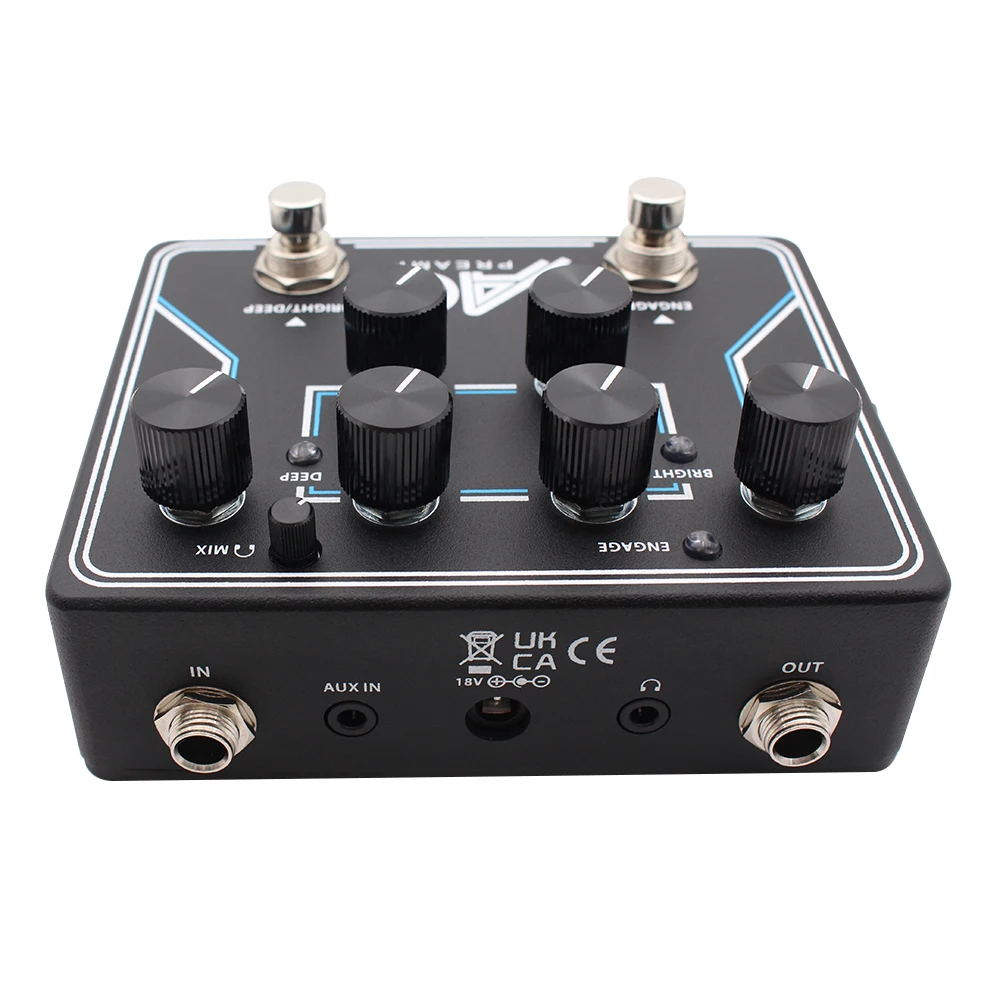

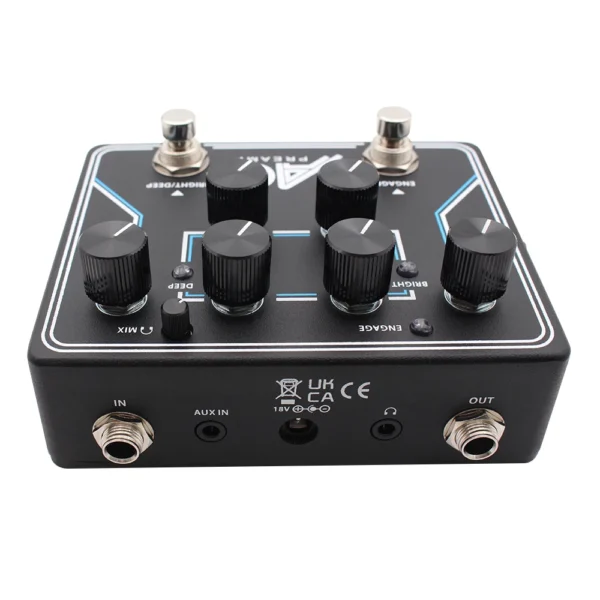

B. Top Side Panel:

In: 1/4” input

Aux In: 1/8” aux input for music device

Out: 1/4” output

Headphones Out: 1/8” headphones output

DC IN: 18v. This is a standard 2.1mm DC jack. The center terminal polarity is negative.

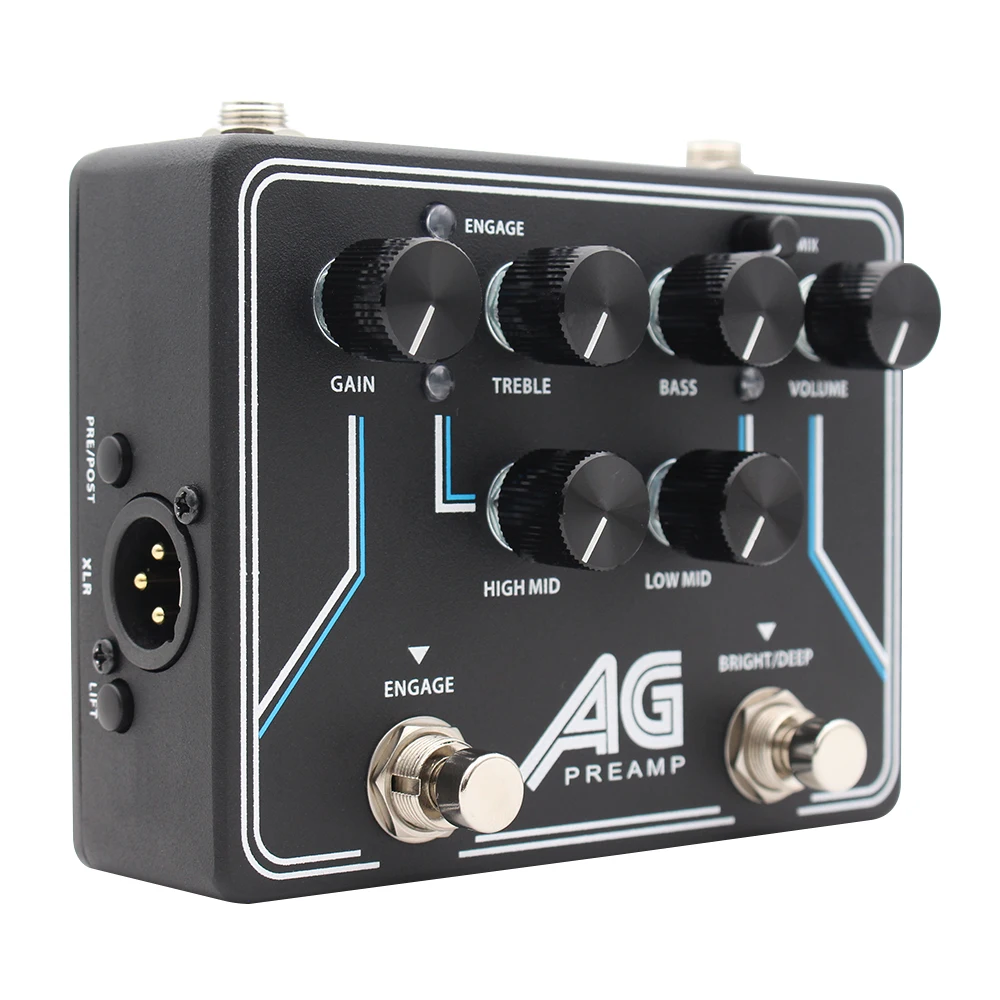

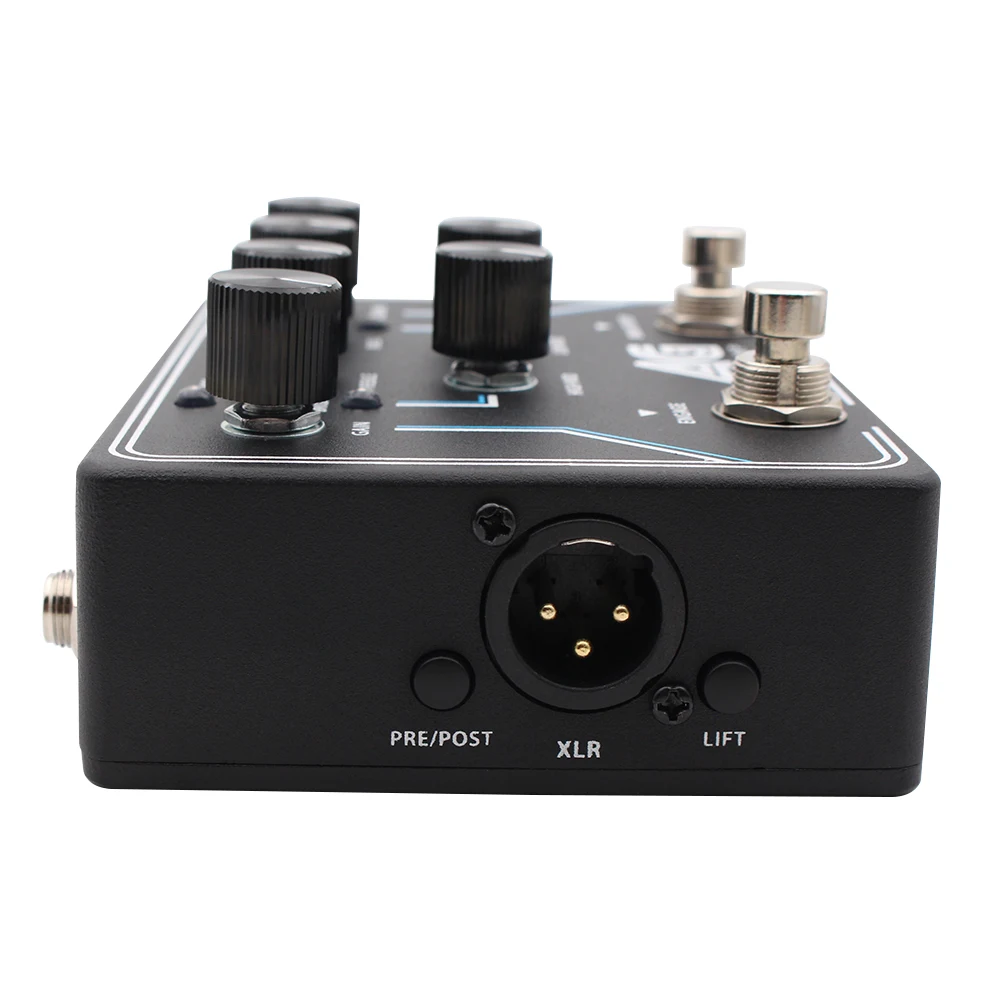

C. Left Side Panel:

DI Out: XLR balanced DI out

Pre/Post Control:

Pre: Your signal goes to the D.I. XLR output before your Gain and EQ settings

Post: Gain EQ and Master settings will be sent to the D.I. XLR output jack.

Ground Lift Control: If there is a hum when using the D.I there may be a ground loop. In many cases

pushing in the Ground/Lift button can fix this problem.

D. Specifications:

Current consumption:……………………….. 36 mA

Input impedance: ……………………………………1mega Ohm

Output impedance: …………………………………..1k

External DC Power: ………………………18v DC

E. Headphone out:

The AG Preamp features a headphone out for silent practice. Use the Aux-In 1/8” for connecting your

laptop phone or audio source and the Headphone Out 1/8” out for your headphones. To adjust the

overall headphone volume use the main Volume control. To adjust the balance of your aux-in to

headphone mix use the Headphone Mix control just above the Volume control.
