New Demonfx Fuzz Works 7 Guitar Bass Effects Pedal Fuzz Based On Fuzz Factory 7

FUZZ WORKS 7

Based on ZVEX EFFECTS Fuzz Factory 7

OVERVIEW:

The Fuzz Works 7 features a 9-position rotary sub switch that opens the pedal

up to an astounding new bottom end as well as thin reedy fuzzes.

The fuzz works equally well with both guitar and bass signals.

There’s also a second stomp switch and an associated tone control.

This passive tone control operates much the way the one on your guitar does

and when the stomp switch is activated it will let you roll off the high

end of the fuzz sound so you can mellow out the tone if you like.

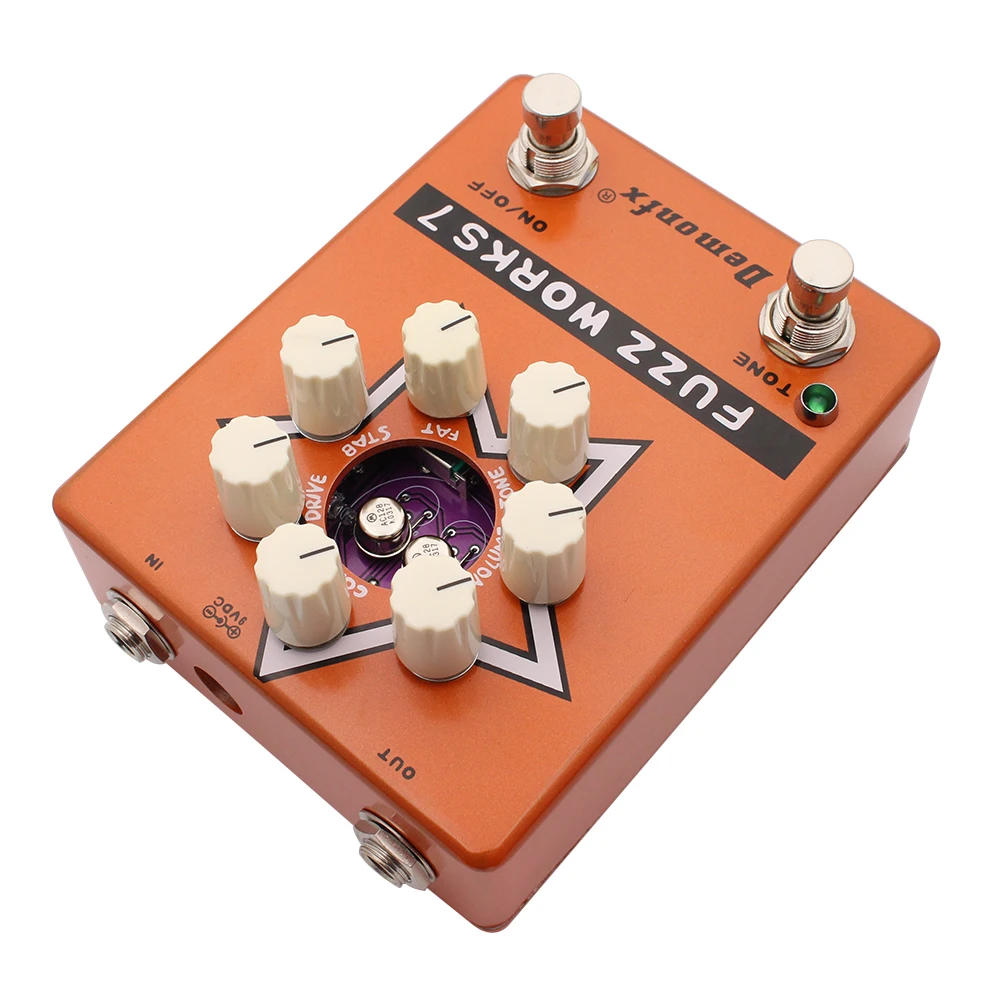

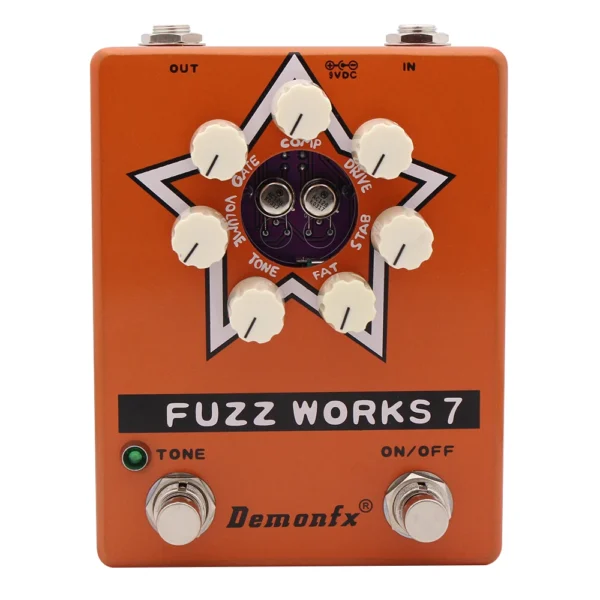

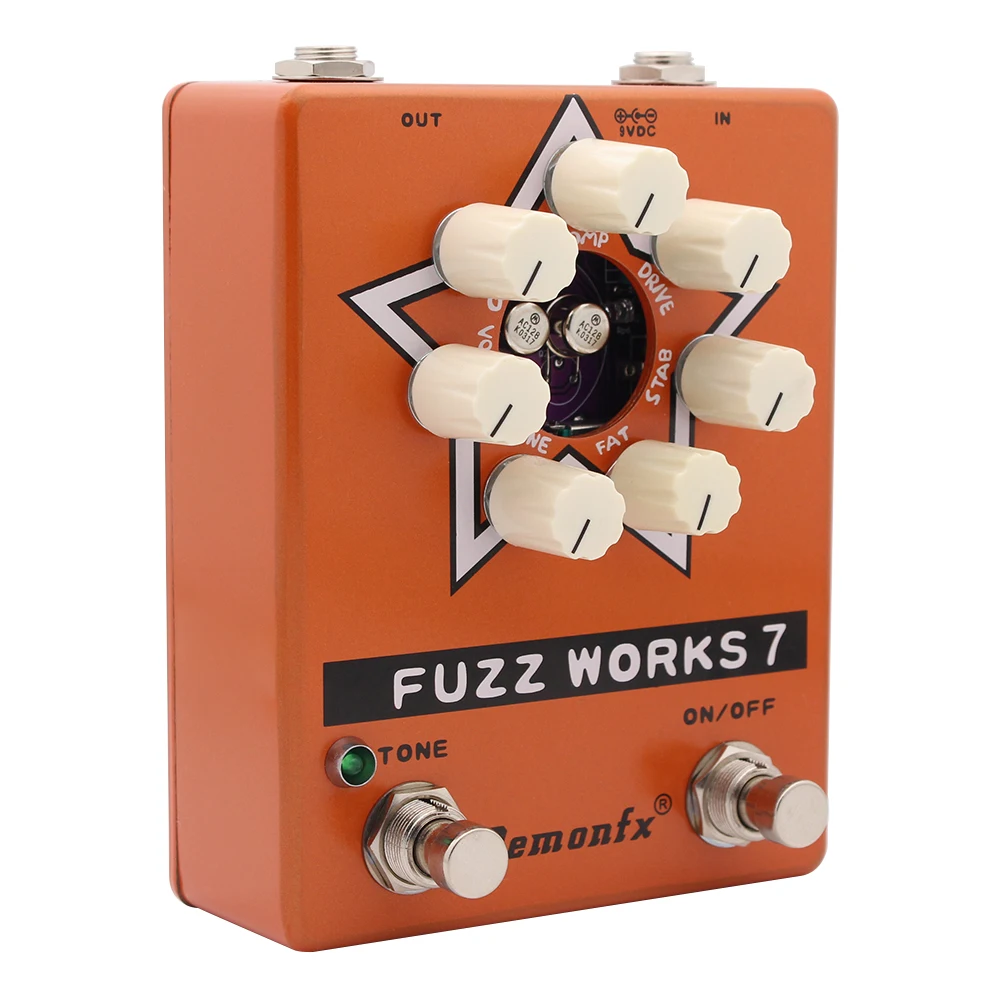

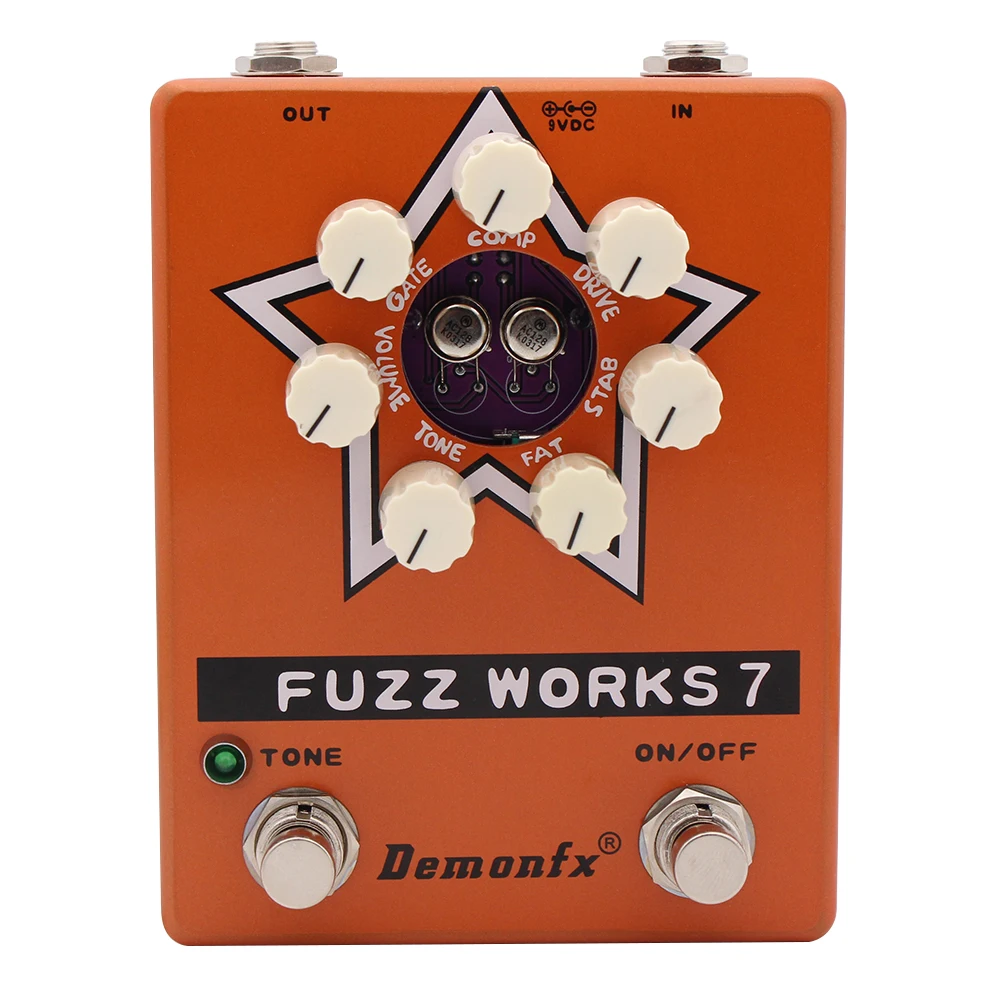

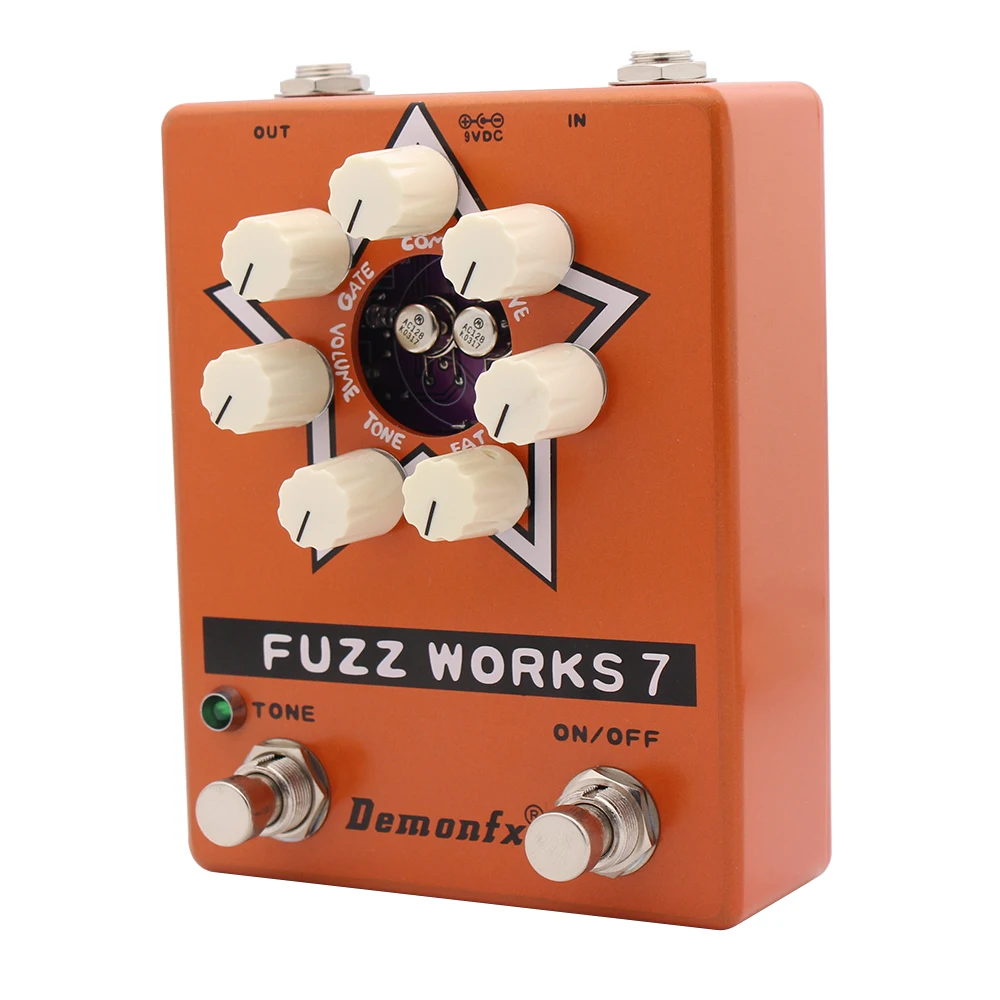

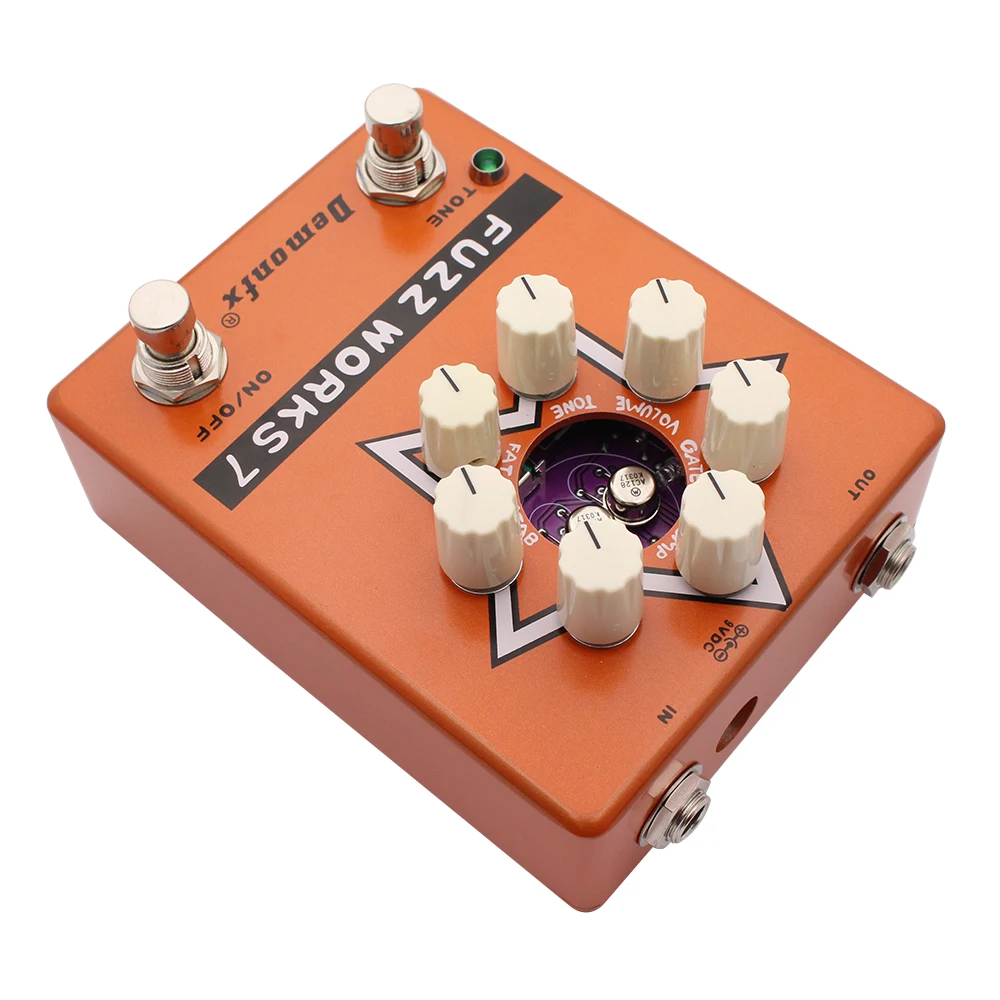

The controls of the Fuzz Works 7 are arranged in a circle

around a Lexan window that reveals two rare germanium

transistors individually hand-tested for the perfect gain

range and low leakage. These rare and magnificent-sounding

transistors are illuminated by LEDs when the pedal is engaged.

CONTROLS:

KNOBS: Although the six main control knobs are named for the

parameters over which they seem to have the most control.

They are controls for various operating levels and

biases and basically shape you a personalized fuzz.

COMP:Adds attack characteristic when turned to left which gets

softer to right and suddenly pinches tone when all the way right.

Also use to tune in fat feedbacky fuzz if you’re that kind. Lower the

Stability and see what happens to this control.

DRIVE:Increases distortion when used as a “normal” fuzz and

adjusts feedback pitch and tonal thickness if you’re that kind. This

control becomes meaningless when Compress is all the way right.

STAB: Use all the way right. Do not attempt to adjust this control

below 2:00 unless you like your fuzz soft and squishy. Use to con-

trol feedback pitch.

FAT： a nine-position

rotary switch that controls the internal tone of the fuzz getting fatter

and subbier to the left and thinner and reedier to the right.

This switch will obviously change the oscillation range of the pedal as well

when the other knobs are set to an oscillating or squealing tone.

TONE: This knob is activated by the left stomp switch. It’s a pas-

sive tone control that mellows out the high end of the Fuzz Factory

7 like a simple lo-pass filter.

VOLUME : Controls output volume.

GATE :Squelches noise after end of sustain. Turn to right to elimi-

nate squeals hiss and buzz stopping just as they disappear or use

to tune in exact feedback pitch if you’re that kind. Turning to left

opens gate.

WARNING: Many “incorrect” settings on this pedal squeal. This

may annoy the faint- hearted. If you use the example settings you

won’t get hurt. We don’t want to see anyone hurt. Don’t forget to

memorize or write down your favorite settings.

EXAMPLE SETTINGS

(These use ” o’clock” notation-not spinal tap 1 to 11)

Comprssion fuzz:

Vol 10:00 | Gate 3:00 | Comp 9:00 | Drive 5:00 | Stab 5:00

Velcro fuzz:

Vol 10:00 | Gate 7:00 | Comp 5:00 | Drive 5:00 | Stab 2:00

Cleanish hi octave intermodulation:

Vol 10:00 | Gate 2-3:00 | Comp 7:00 | Drive 7:00 | Stab 5:00

Smooth fuzz:

Vol 10:00 | Gate 7:00 | Comp 3:00 | Drive 5:00 | Stab 5:00

(lower Stab is more mellow)

Radio fuzz:

Vol 10:00 | Gate 7:00 | Comp 10:00 | Drive 12:00 | Stab 5:00

Lower from fully clockwise while playing open ‘A’ with left hand.

Stop at most interesting tone.

POWER SUPPLY:

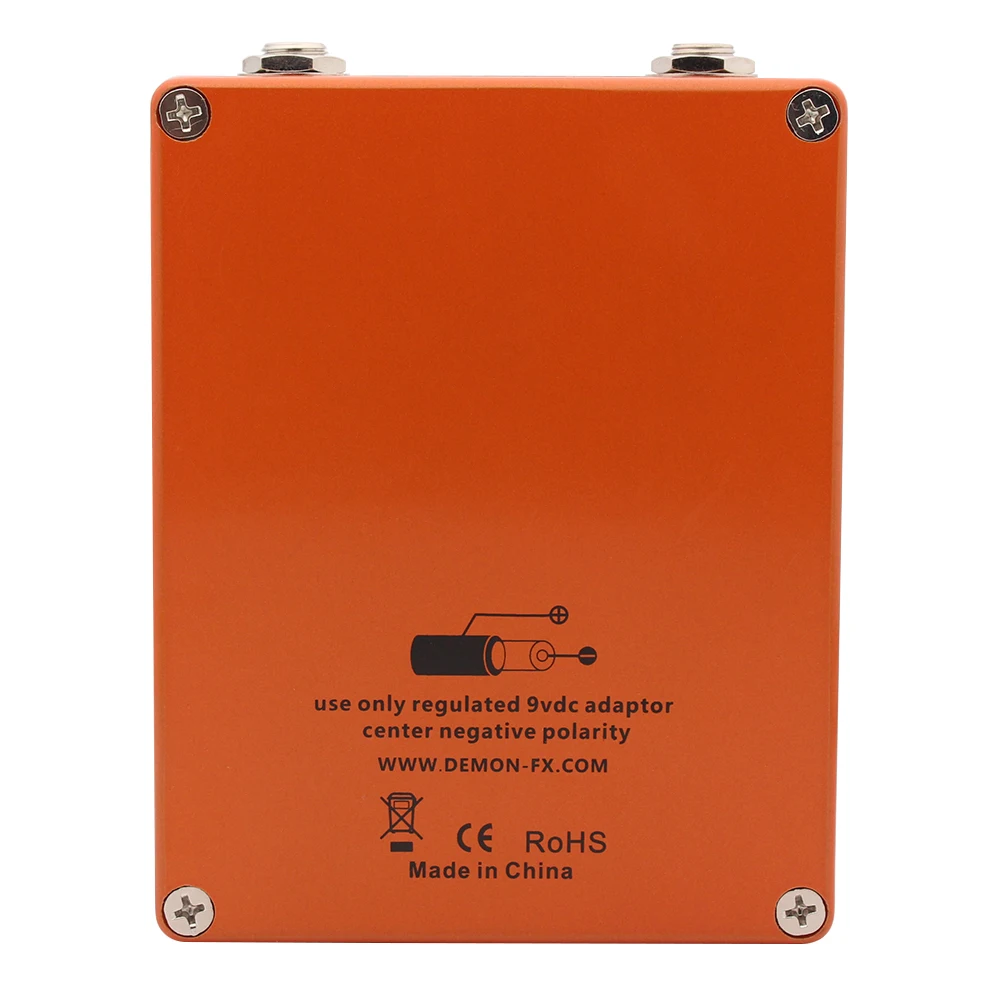

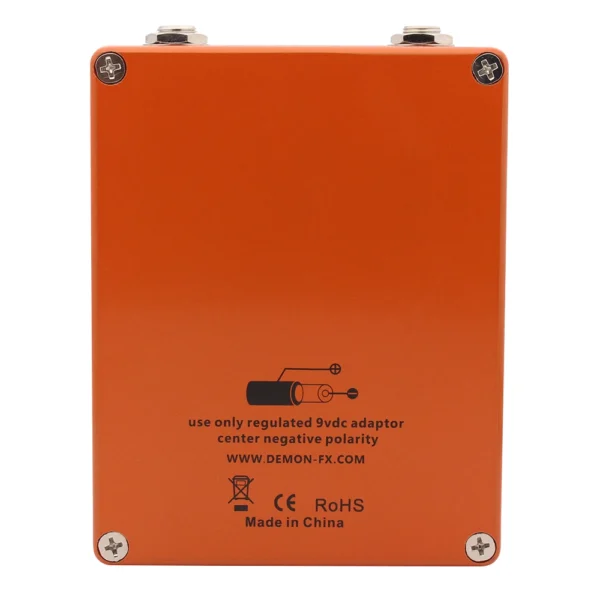

Please use a 9V DC power supply with (–) polarity on

the middle pin (typical Boss™ power supply). Using the incor-

rect supply may damage your pedal.
