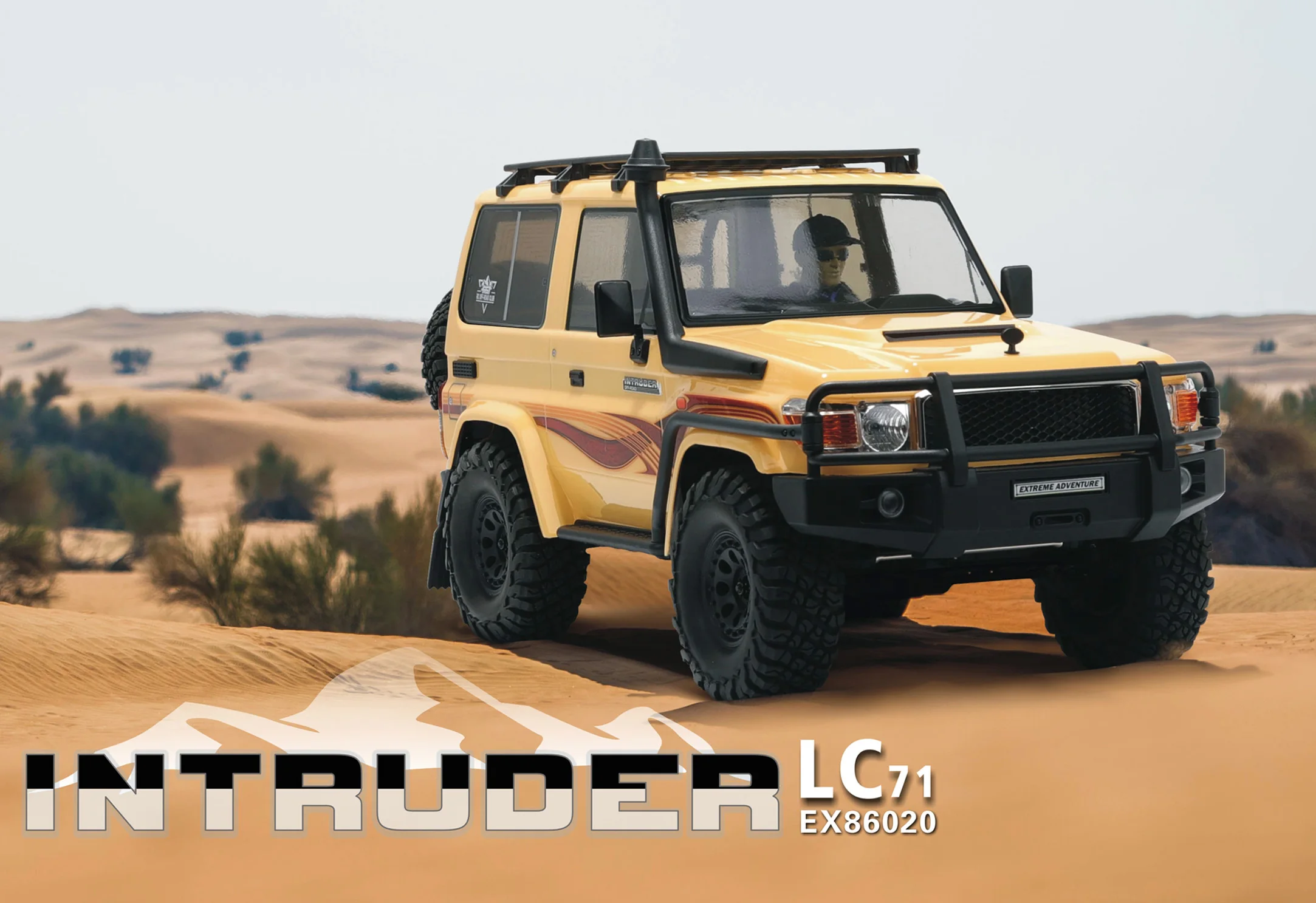

RGT EX86020 1/10 Scale RTR Crawler Intruder Realistic 2 Door Climbing Off-road RC Car LC71 4WD Model

RGT EX86020 1/10 Scale RTR Crawler Intruder Realistic 2 Door Climbing Off-road Vehicle RC Car LC71 4WD Children’s Model Toy Gift

Note: Due to the different lighting and shooting Angle there is a certain color difference between the picture and the real thing

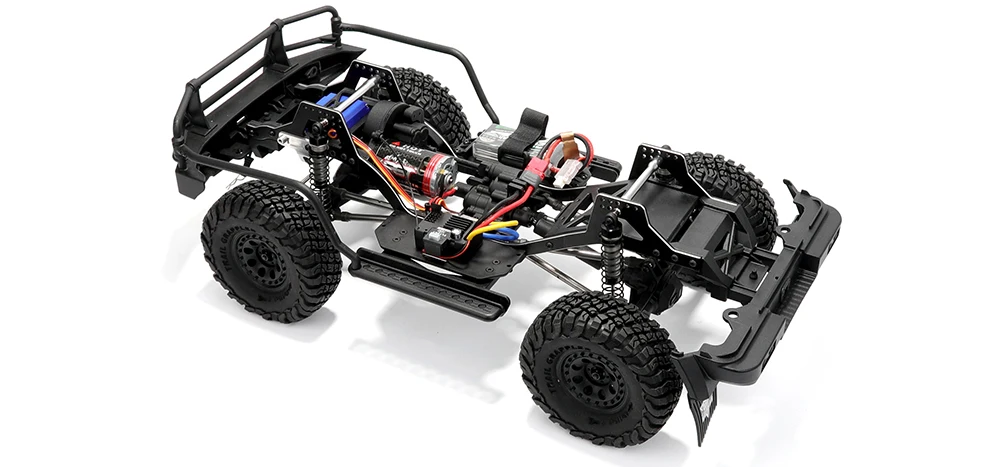

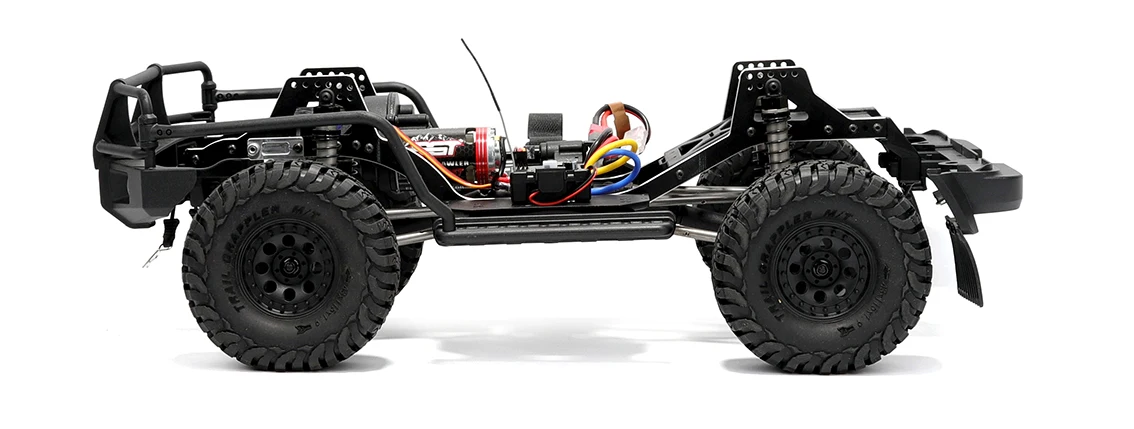

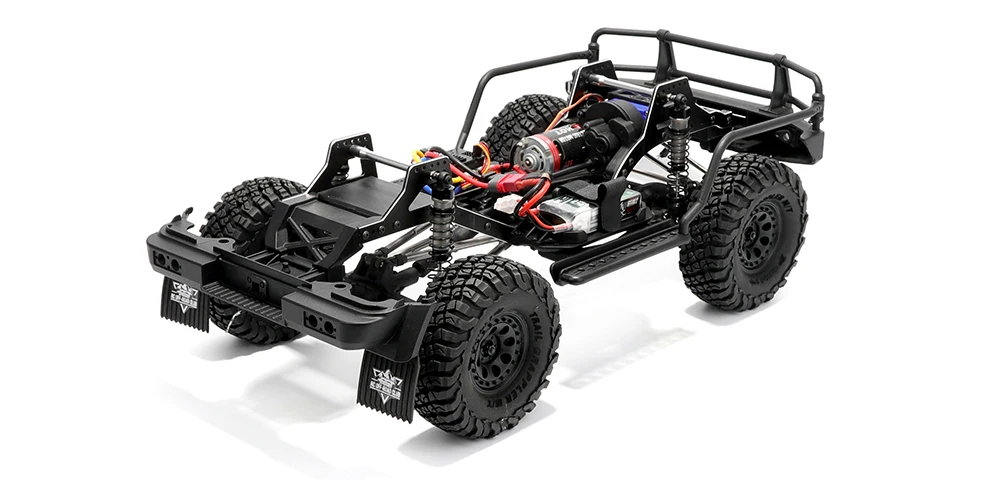

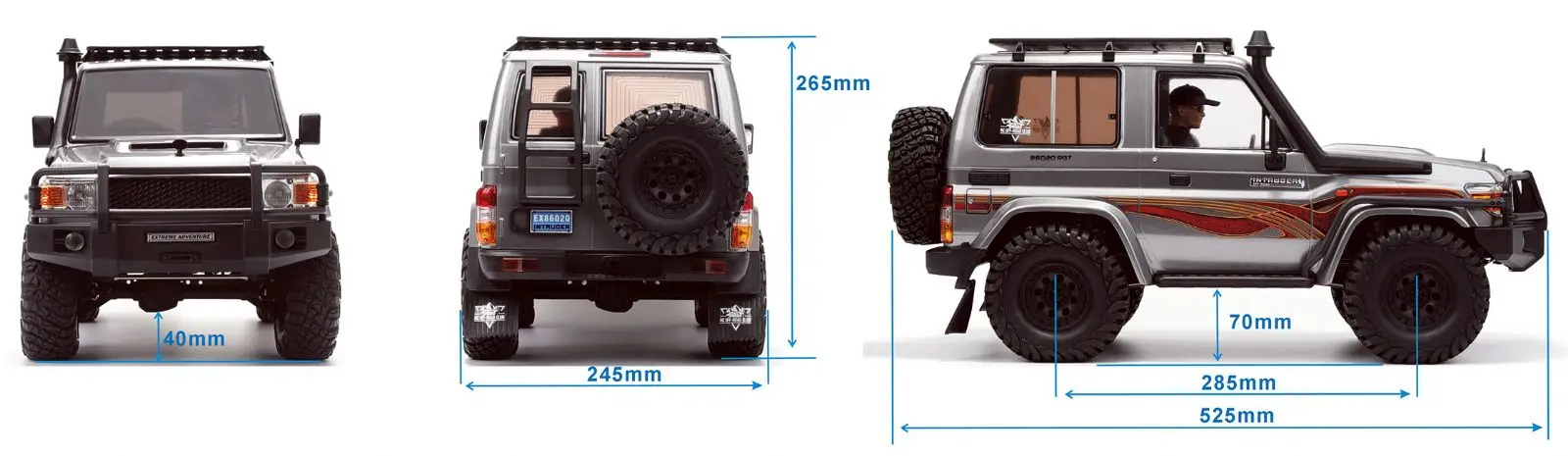

Chassis Structure：In 2024 RGT will lauch a total new 1/10 scale RTR crawler – Intruder item number: EX86020. Basing on 285 wheelbase platform Invader is a realistic two-door climbing off-road vehicle and its solid body structure and classic appearance reflected the design positioning. The chassis uses split transmission structure four-wheel drive system motor-mounted-in-front and lower center of gravity. The steering servo-mounted-on-axle shaft matched with Panhard bar positive Ackerman steering angle 3MM CNC aluminum alloy chassis rail steel solid link bar all-vehicle bearing and CNC steel spiral big gear. Invader has pure climbing performance and great modification space. “Invader” refers to the appearance design of Toyota LC71 added with interior decoration factory standard spare tire multi-mode linkage LED light control “Flysky” 6-channel cralwer special 2.4G remote controller and 60A ESC.

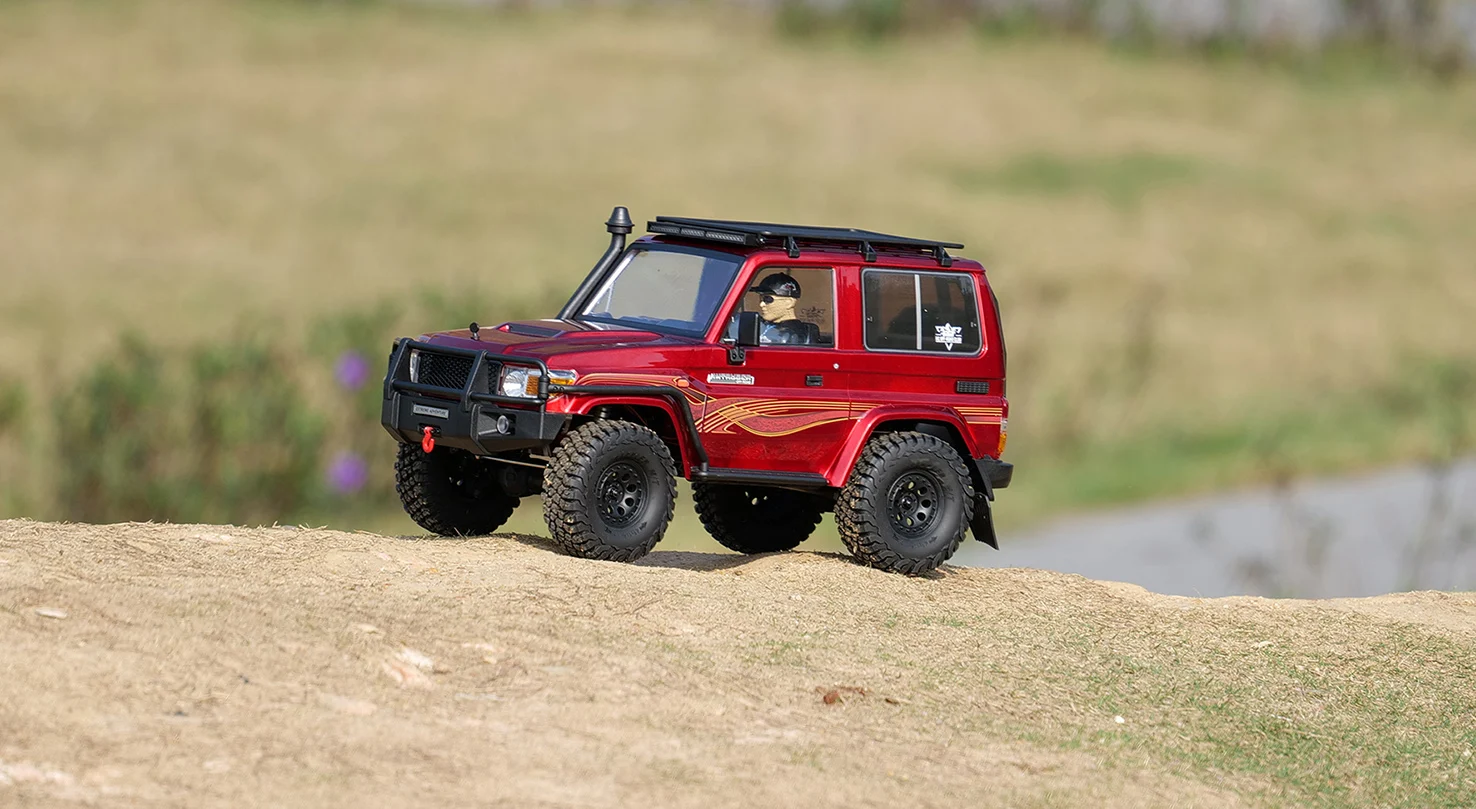

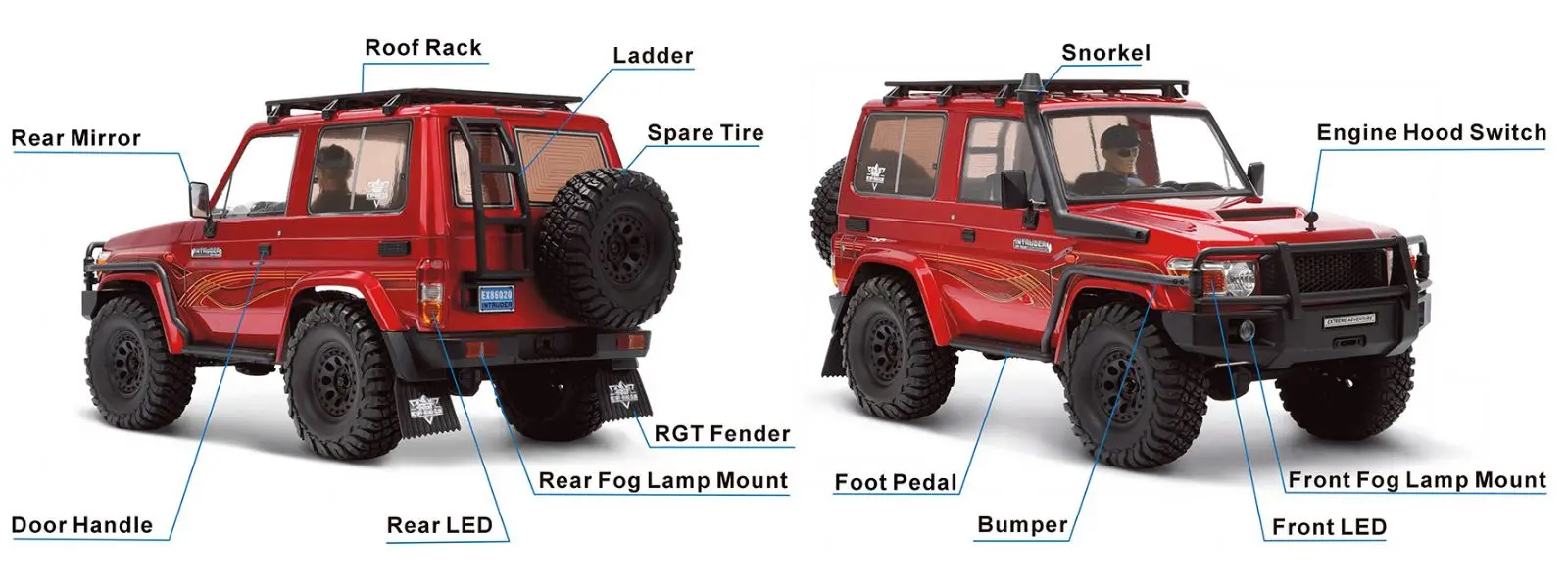

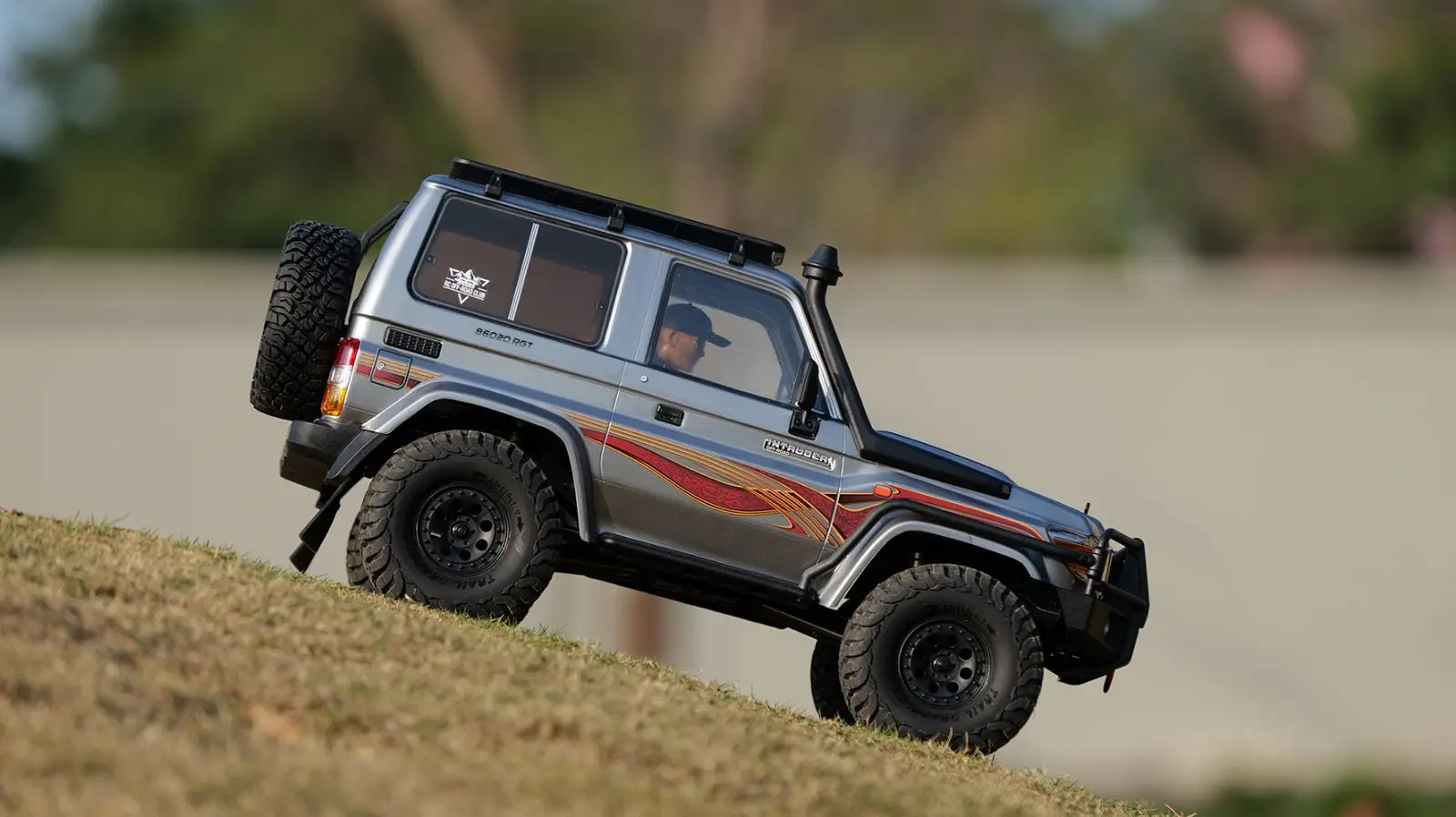

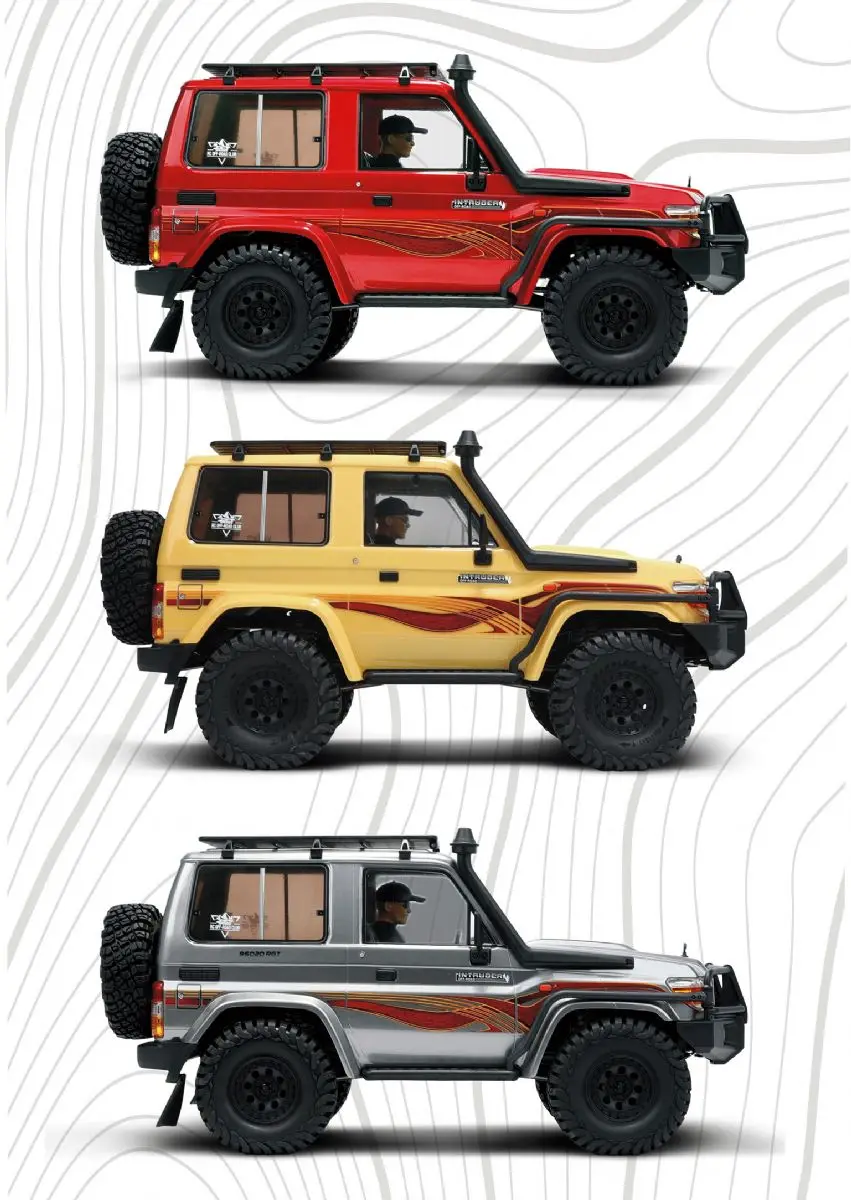

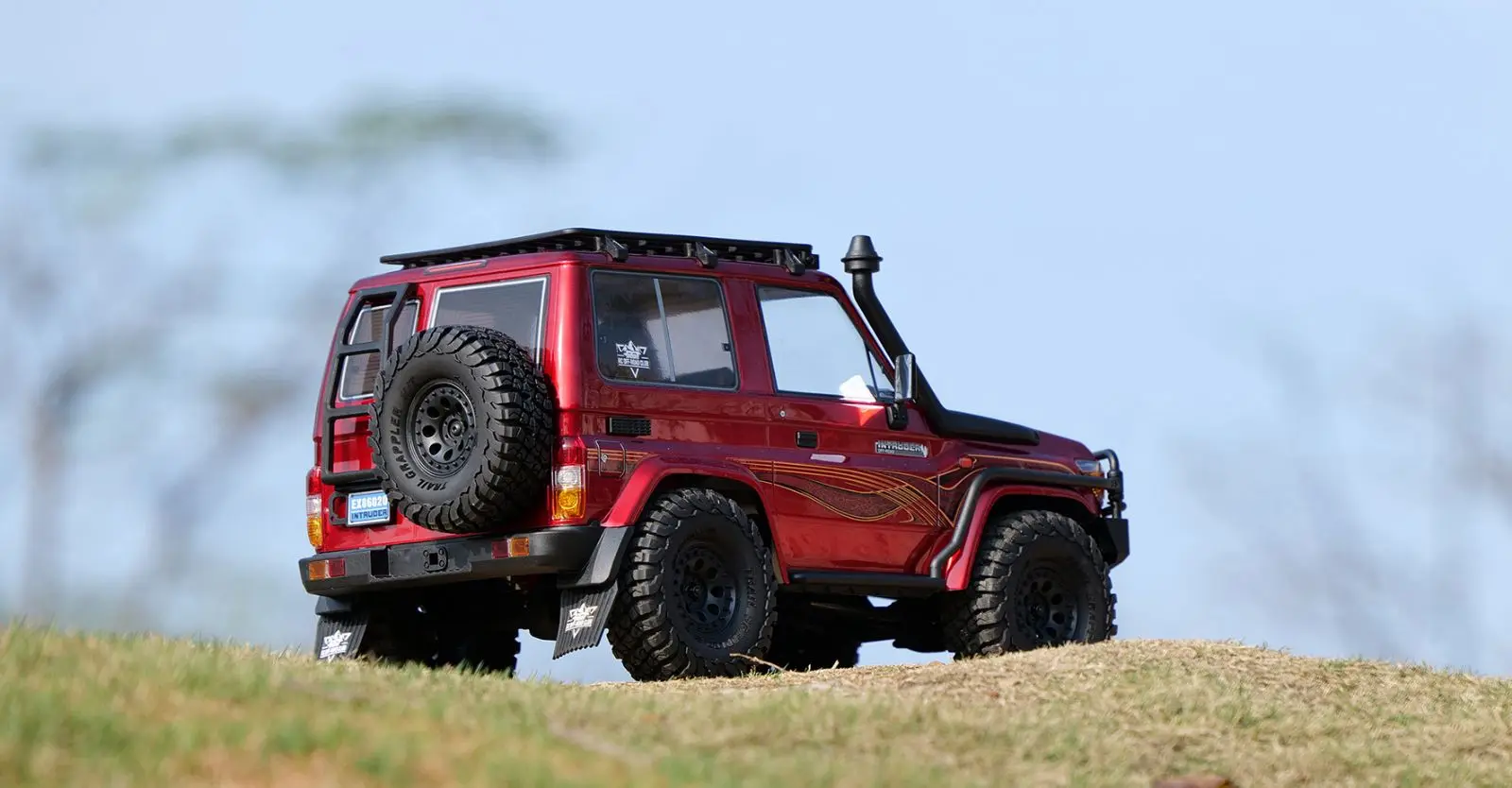

Intruder uses PC soft bodyshell material (LC71 appreance) realstic interior decoration environmental protection spray paint with transparent windows hidden body post and plastic decorative accessories such as realistic lights rear view mirrors and door handles. Three colors for option: metallic red silver gray and desert yellow.

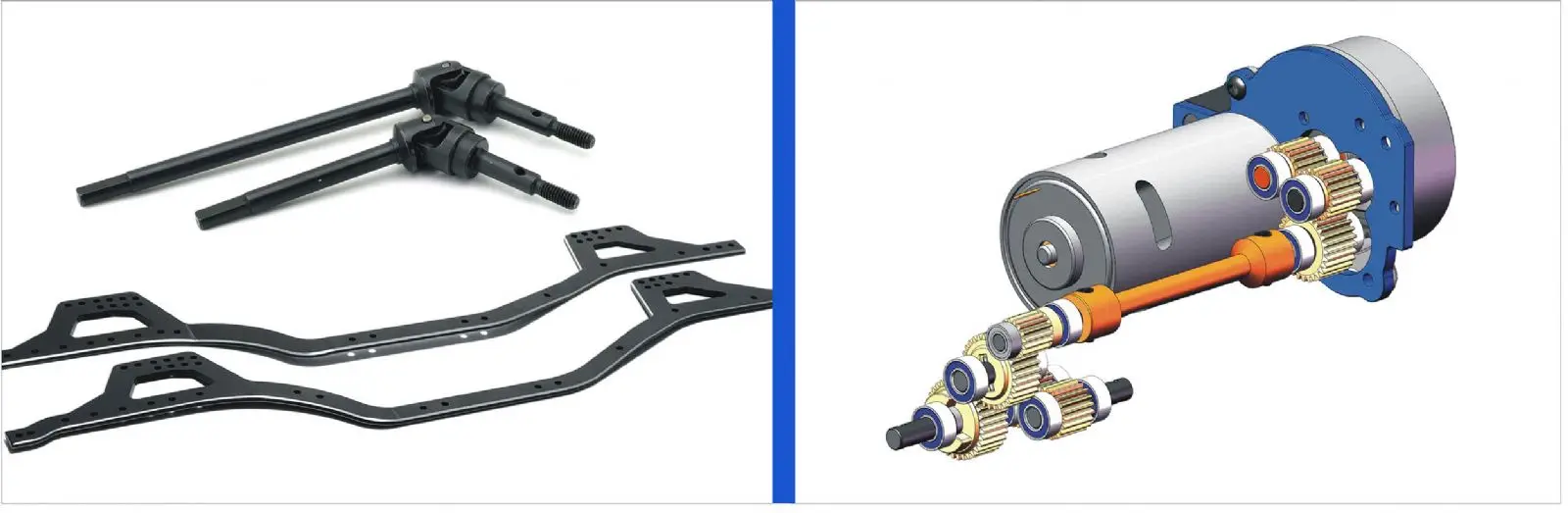

1. 3MM CNC aluminum alloy chassis rail；

2.  integral straight axle in front and rear   front axle comes with caster angle ;

3. Front-drive steering driveshaft  use steel #1144 CVA;

4. 46-degree steering angle and positive Ackerman angle;

5.servo mounted on axel 25T metal servo arm;

6.Low center of gravity with slip reducer all metal gears with #45 steel reduction shaft;

1. The front and rear axles use CNC steel spiral gear for greater durability which can raise up the front and rear driveshaft and make the chassis of the car have better pass ability.

2. Reverse transmission equipped with high-quality bearing with sealed cover   effectively reduce shaft effects.

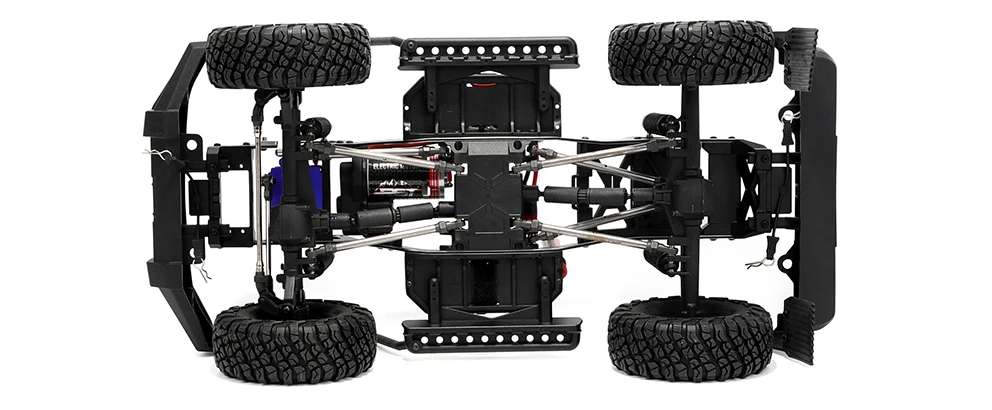

3. 6mm diameter solid metal 8 connecting rod structure.

4. The ball joint of the linkage rod uses reinforced nylon material made of a new formula which has more resistant to friction and deformation.

1. The suspension system adopts CNC aluminum alloy twisted hydraulic shock absorber which brings more convenient damping adjustment.

2. The wheels are made of butyl rubber installed with 115mm diameter MT tires coming with 1.9-inch wheel hub for better climbing grip and more realistic.

3. Equipped with winch servo installation position;

4. Equipped with two battery tray installation position suitable for different battery sizes;

5.  Hidden bodyshell latch design add bodyshell latch fixed buckle to preventing fall and loss.

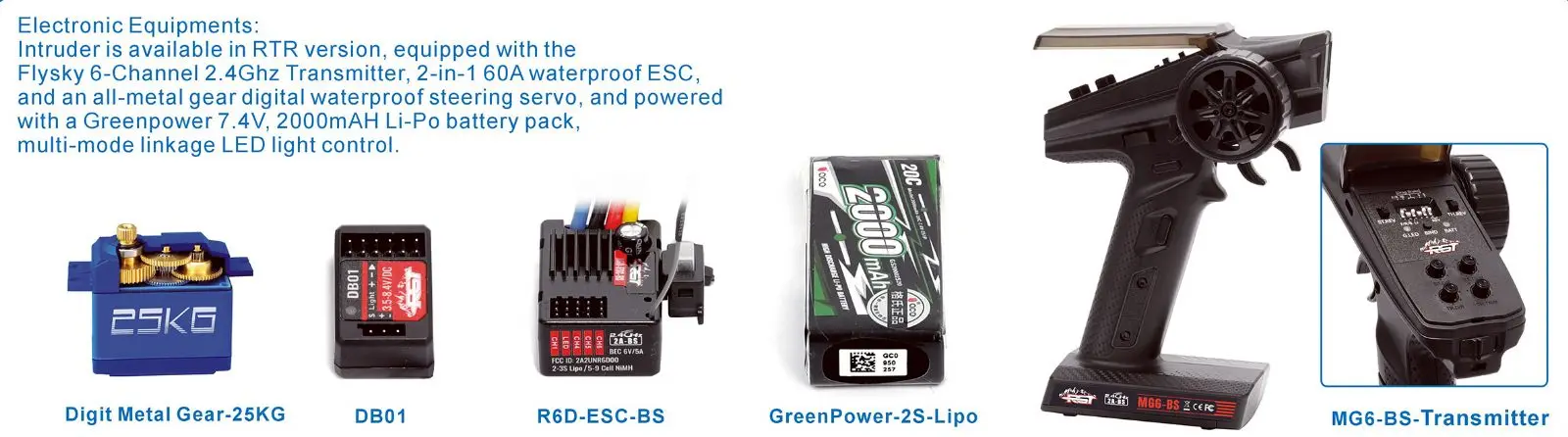

Intruder will be available to consumers in RTR version equipped with 35T RC550 super torque motor 2-in-1 60A waterproof ESC 6-channel 2.4G remote controller.
