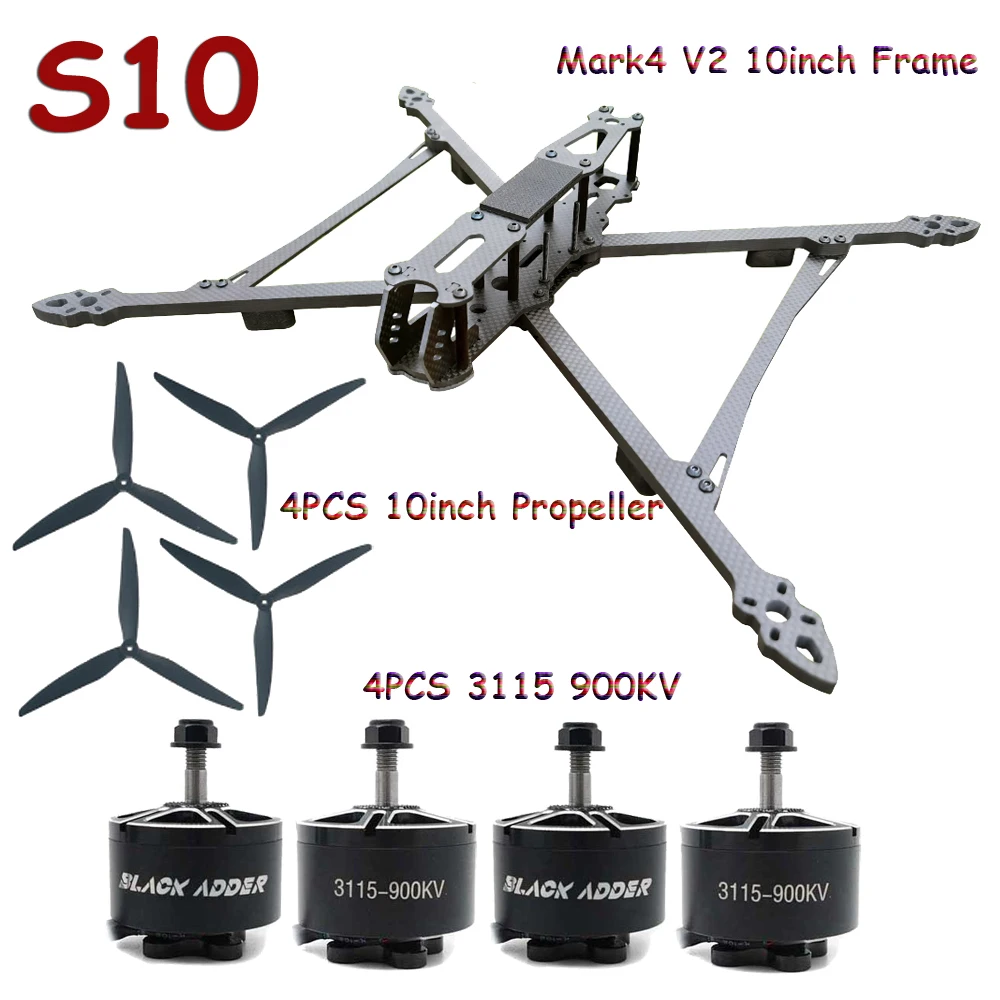

[S10] Mark4 V2 10inch FPV Frame Combo Set F405 V3S FC 60A 4 in 1 ESC 3115 900KV Motor Propeller ELRS for RC FPV Freestyle Racing Drone

Mark4 V2 10inch FPV Frame Combo Set F4 V3S FC 60A 4-in-1 ESC 3115 900KV Motor Propeller ELRS for RC FPV Freestyle Racing Drone

3115 Features:
1. Powerful Performance:The 3115 900KV motor delivers high burst of power for incredible performance.
2. High Speed:Designed for speed this motor ensures fast and smooth flight experience.
3. Durabl Build:With a sturdy construction this motor is built to withstand tough conditions and last long.
4. Easy to Install:This motor is easy to install and compatible with various quadcopters.
5. Reliable Performance:Enjoy reliable performance with this high-quality motor.

Model:3115
KV: 900KV

Stator Diameter：31

Stator Thickness：15

No. of Stator Arms：12

No. of Stator Poles：14

No-Load Current(25.2V)：2.5A Max

Motor Resistance：60m2 (Ref)

Weight：112g+/-2g

Outside Diameter：37.5+/-0.2 mm

Body Length：33.6+/-0.5 mm

F405 V3S Plus Flight controller:

Item name: F405 V3 PLUS Flight Controller

Firmware: OMNIBUSF4SD

Size: 36x36mm

Mounting holes: 30.5×30.5mm

STM32 F405 MCU

Dshot support

Drag and Drop OSD configured via Betaflight

MPU: MPU6500 / MPU6000 (Send at random)

SBUS / PPM AND Spketrum DSMX ports

MicroSD card blackbox

Baro (BMP280)

5v3a 9V3A BEC

On-board video filters (only 5V to VTX and camera)

Boasting a F4 processor on-board Betaflight OSD MicroSD Black Box 5v3a sbec video filter you’ll be tuning pids with your transmitter and
Tear it to the track in no time!

60A 4-in-1 ESC:

The installation size is 30.5mm×30.5mm the mounting hole is M4 and it supports shock-absorbing column installation

ESC onboard current sensor.

Continuous current: 60A

Instantaneous current [5 seconds]: 70A

Firmware: BLS J_H_30_REV16_7

The ESC has on-board filter capacitors to suppress the back electromotive force stabilize

the battery voltage and protect the precision components of the flight control ESC

Mark4 V2 10Inch 427mm Carbon Fiber Frame Parameters:

Frame structure: X-Type

Wheelbase: 427mm

Size: 268.18mm*332.07mm

Bottom plate thickness: 3.0mm

Medium plate thickness: 3.0mm

Upper plate thickness: 2.0mm

Arm thickness: 7.5mm

Connecting plate: 2.0mm

Camera side plate thickness: 2.5mm

Camera installation hole spacing: 19mm

Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm

Flight control installation hole spacing: 20*20mm & 30.5*30.5mm

Inner space height: 35mm

Motor installation hole position: 16*16mm & 19*19mm

Propeller:

Propeller Diameter: 10 inch

Pitch: 5

Blades : 3

Material: Black-Fiberglass Reinforced Nylon

Weight: 26g

Hub Diameter: 222mm

Shaft: 5mm

Adaptor Rings: yes
