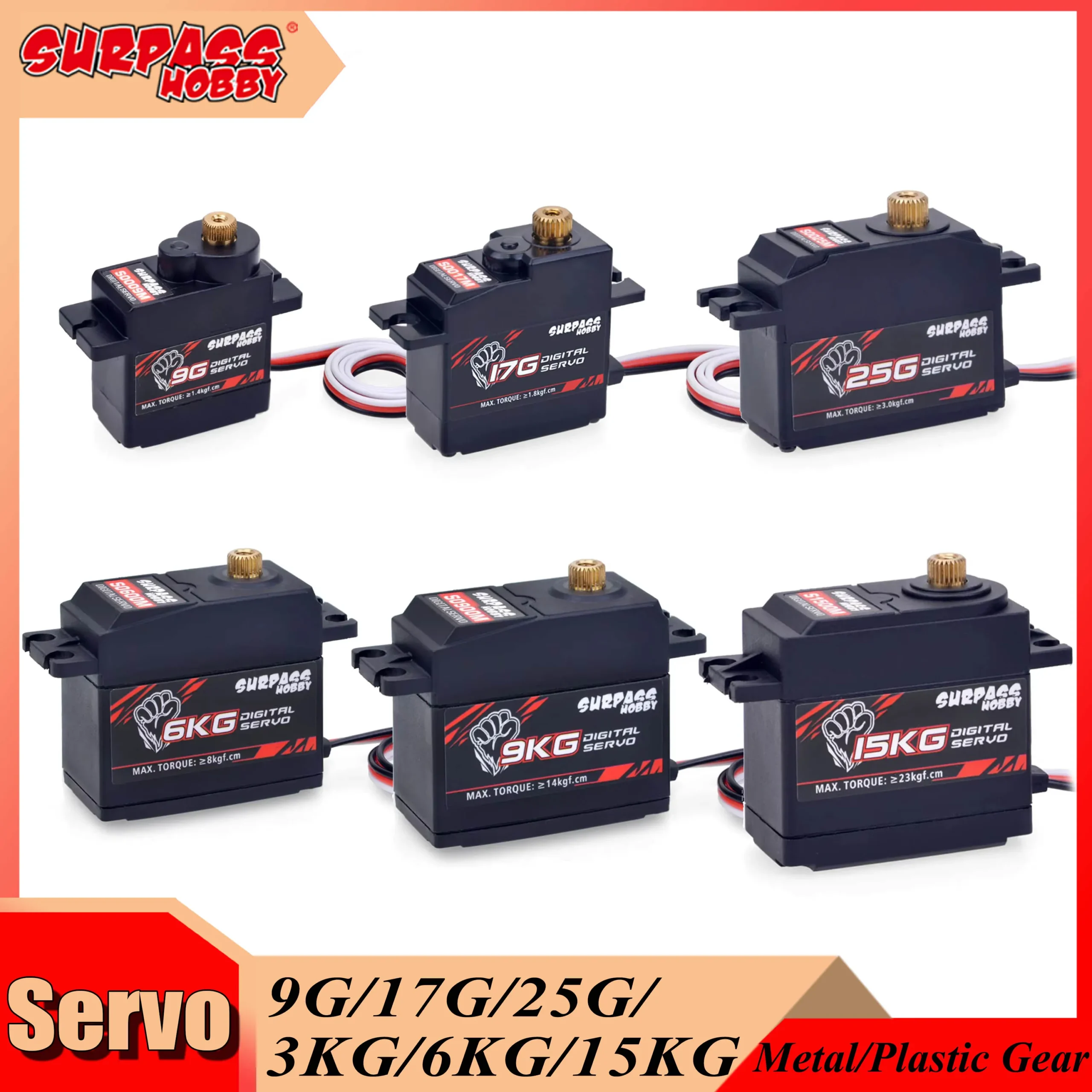

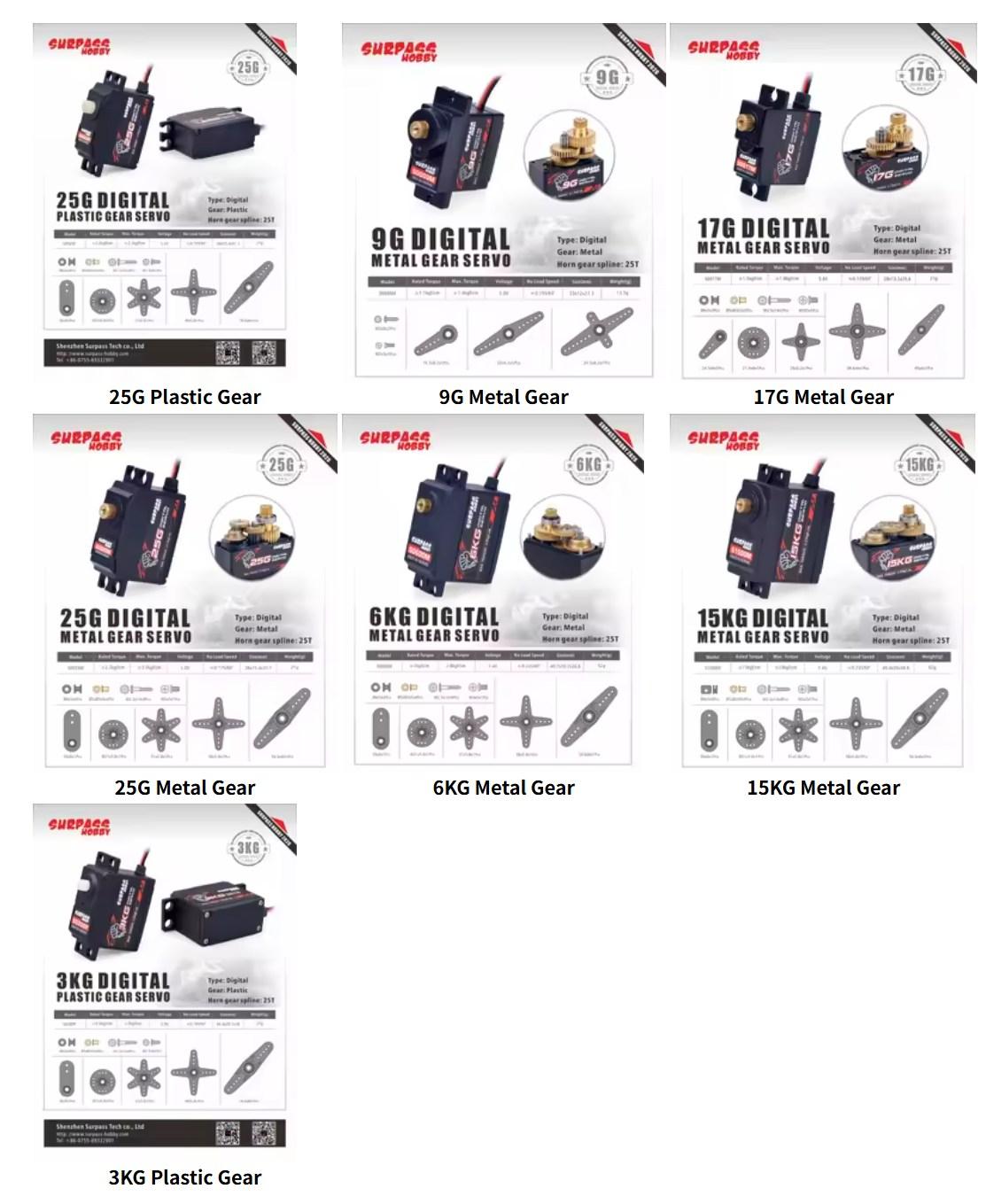

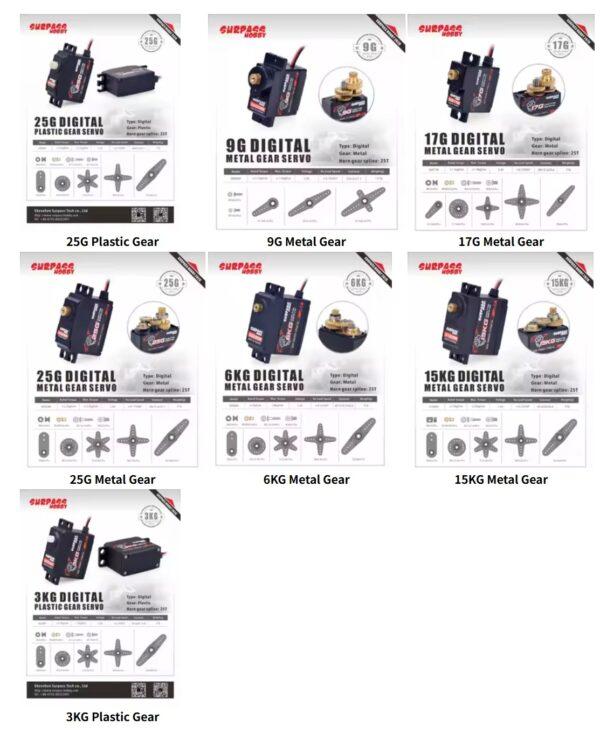

Surpass Hobby 9G 17G 25G 3KG 6KG 15KG Metal/Plastic Gear Digital Servo for RC Car Plane Robot Boat Wltoys Axial SCX24 Model Toy

Specifications:

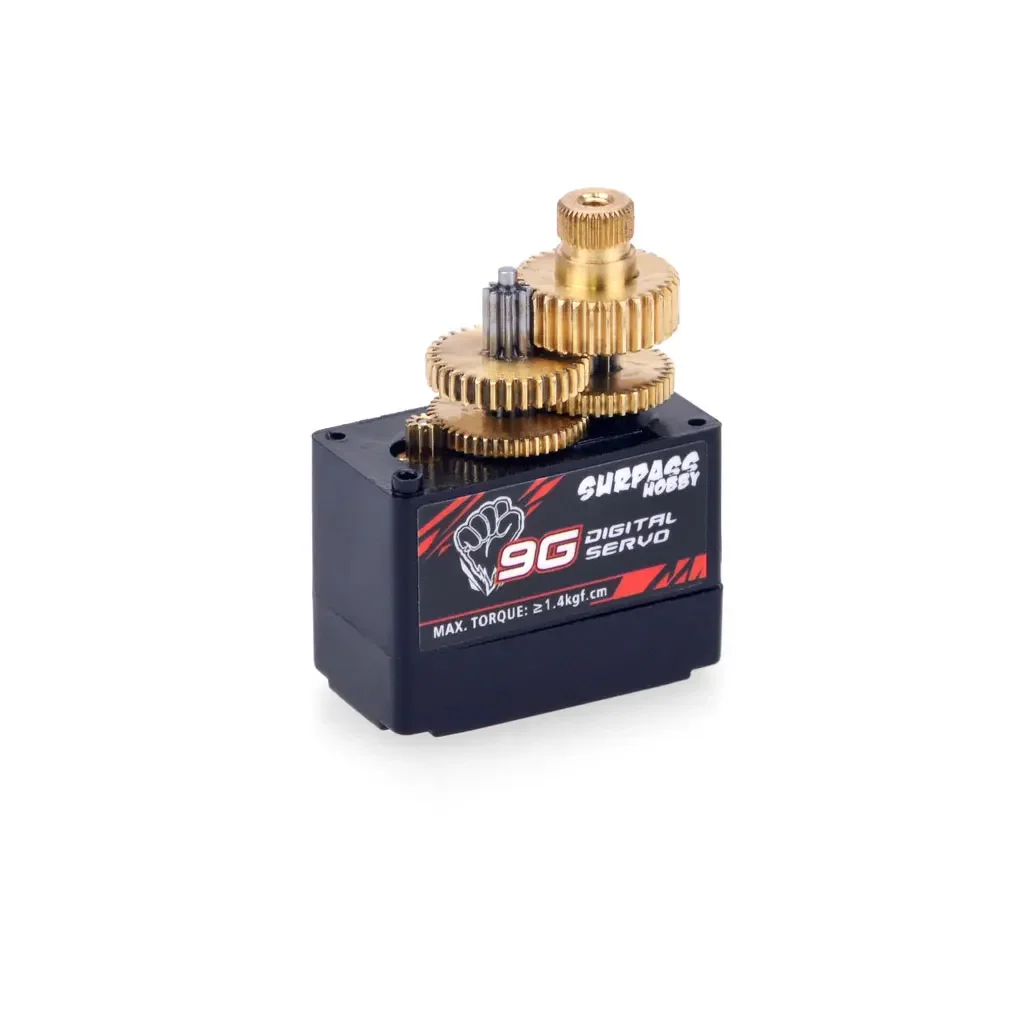

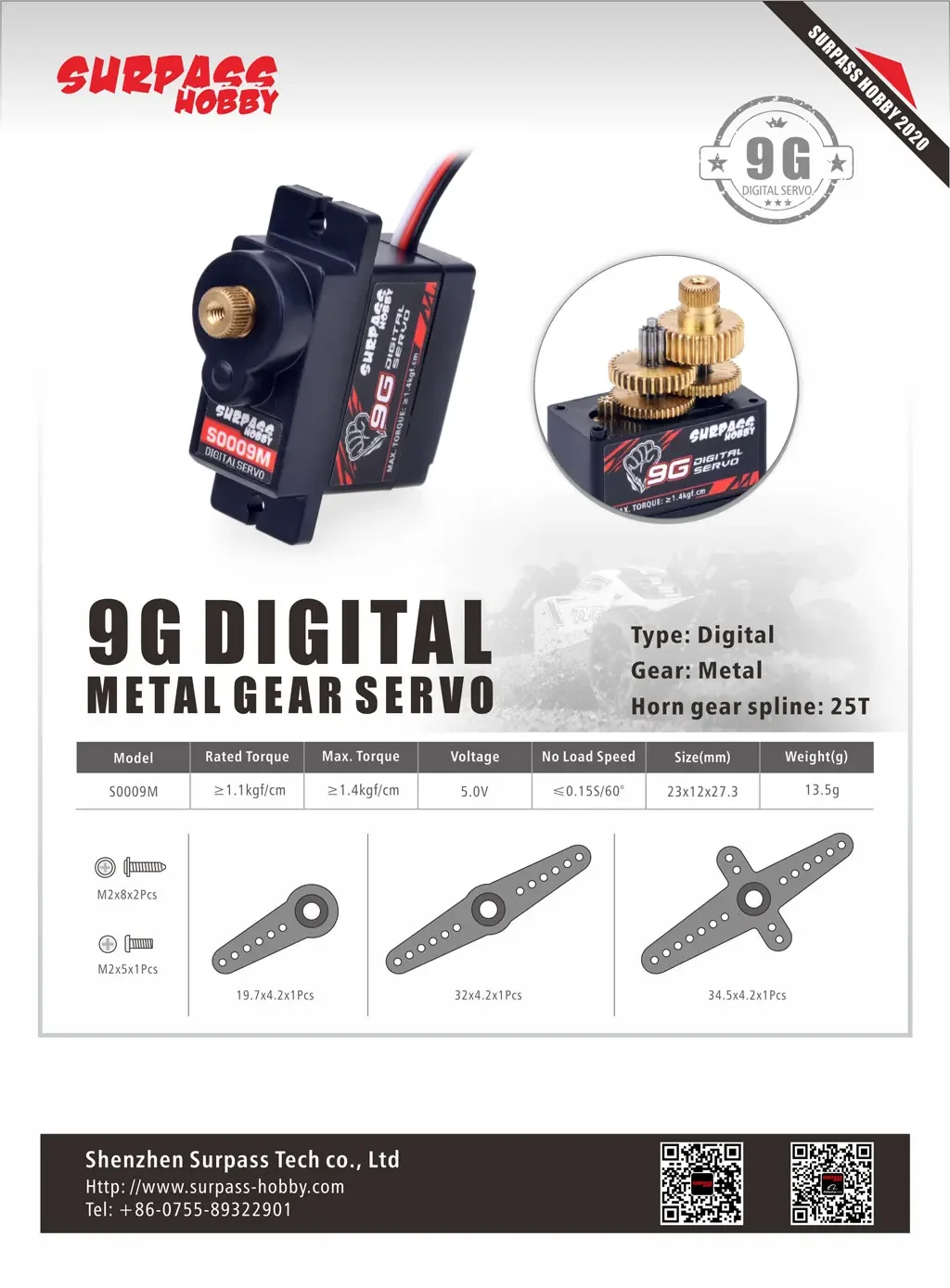

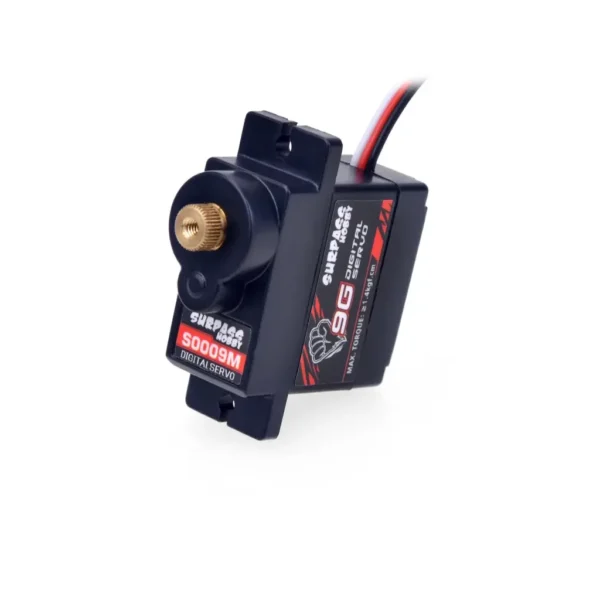

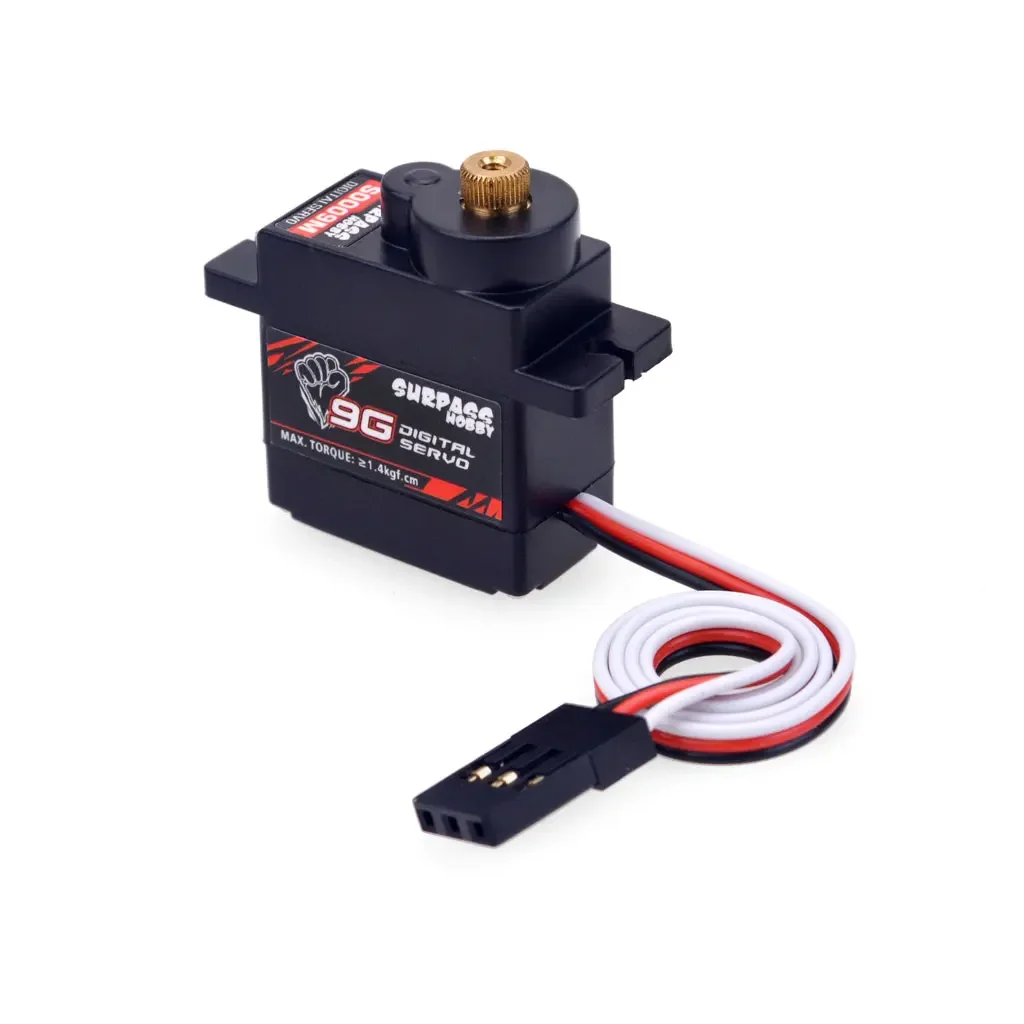

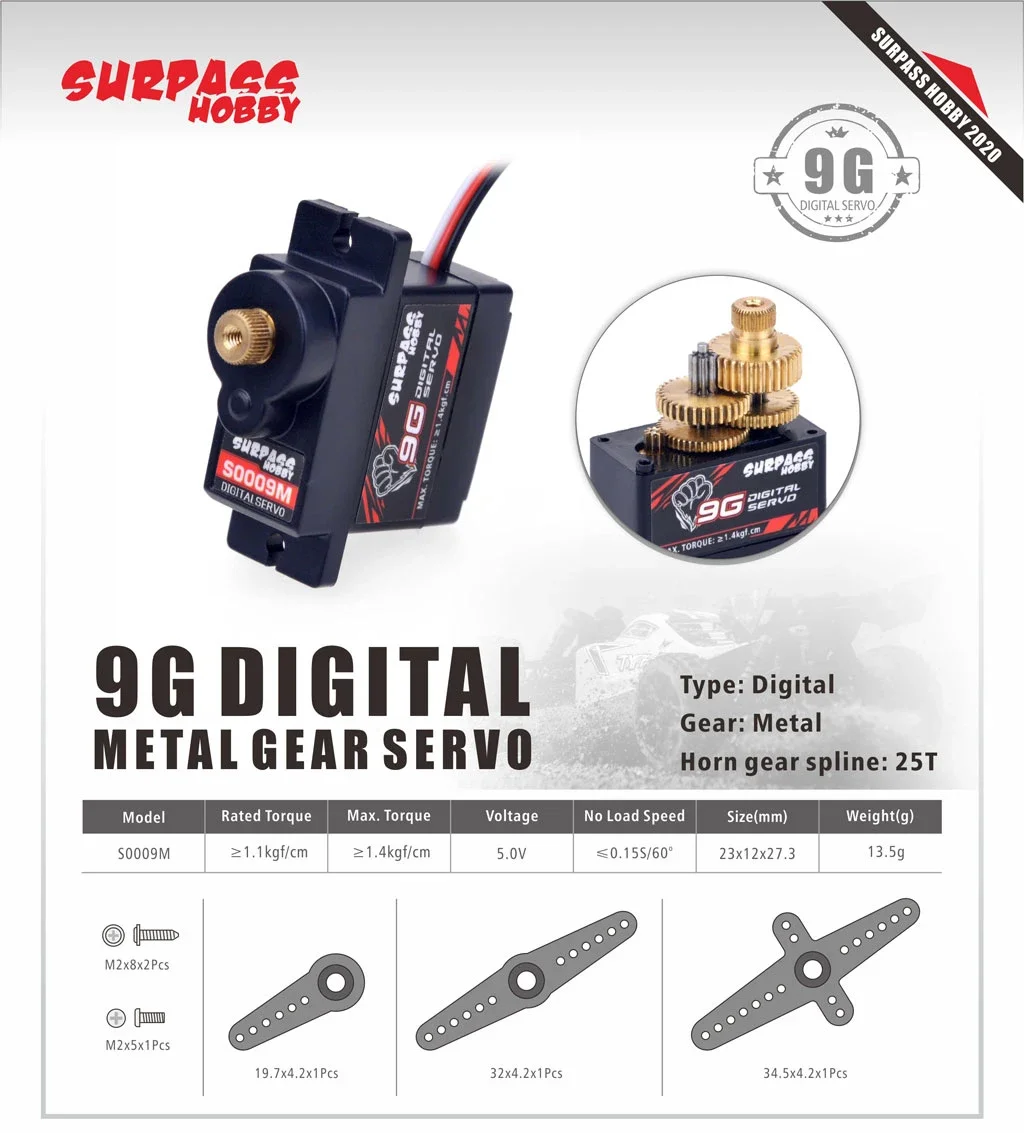

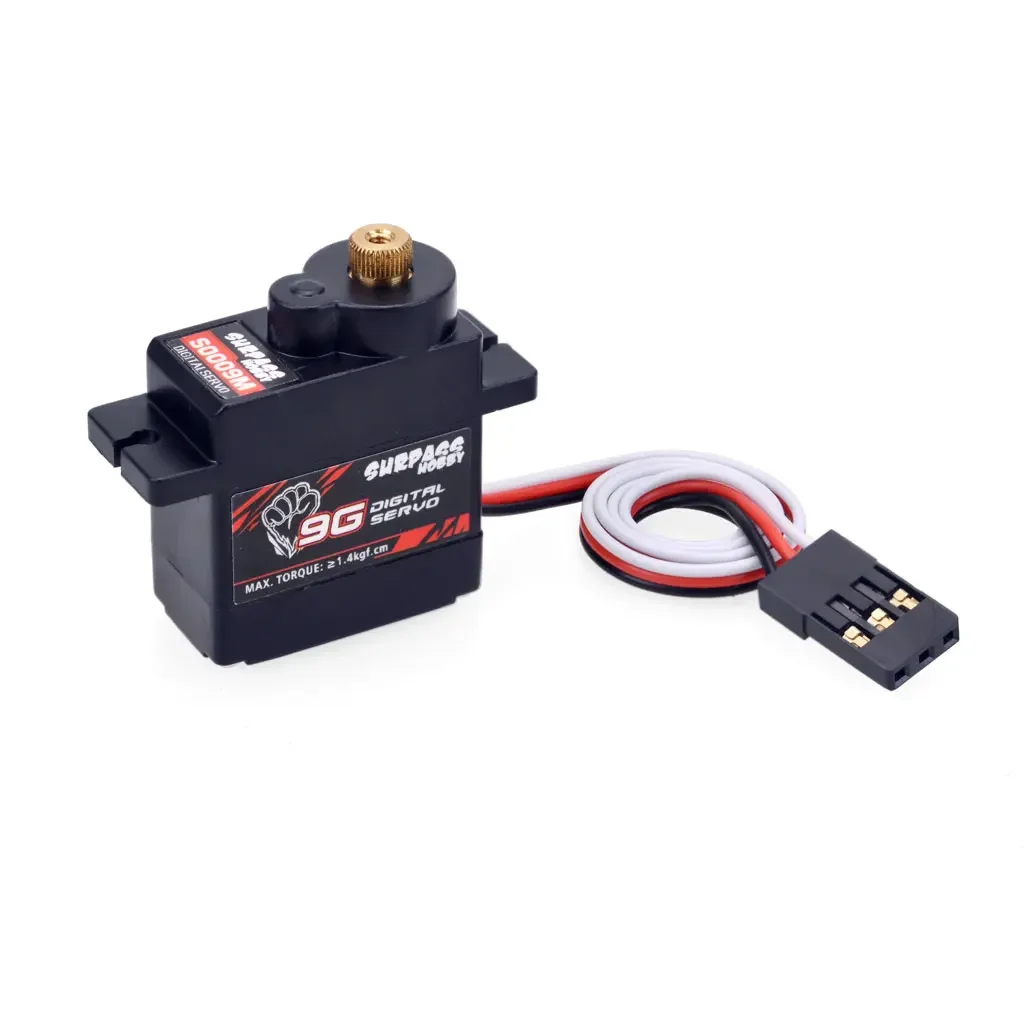

9g

Brand: SURPASS Hobby

Model: S0009M

Torque: 1.7 kgf.cm at 4.8V; 1.9 kgf.cm at 6V;

No load speed: 0.11s/60 ﾂｰ at 4.8V; 0.09s/60 ﾂｰ at 6V;

Product weight: 13.5g (0.47oz);

Boundary dimension: 23 * 12 * 27.3mm (0.92 * 0.48 * 1.07inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 ﾎｼ s / 333hz;

Motor type: core motor;

Gear type: metal gear;

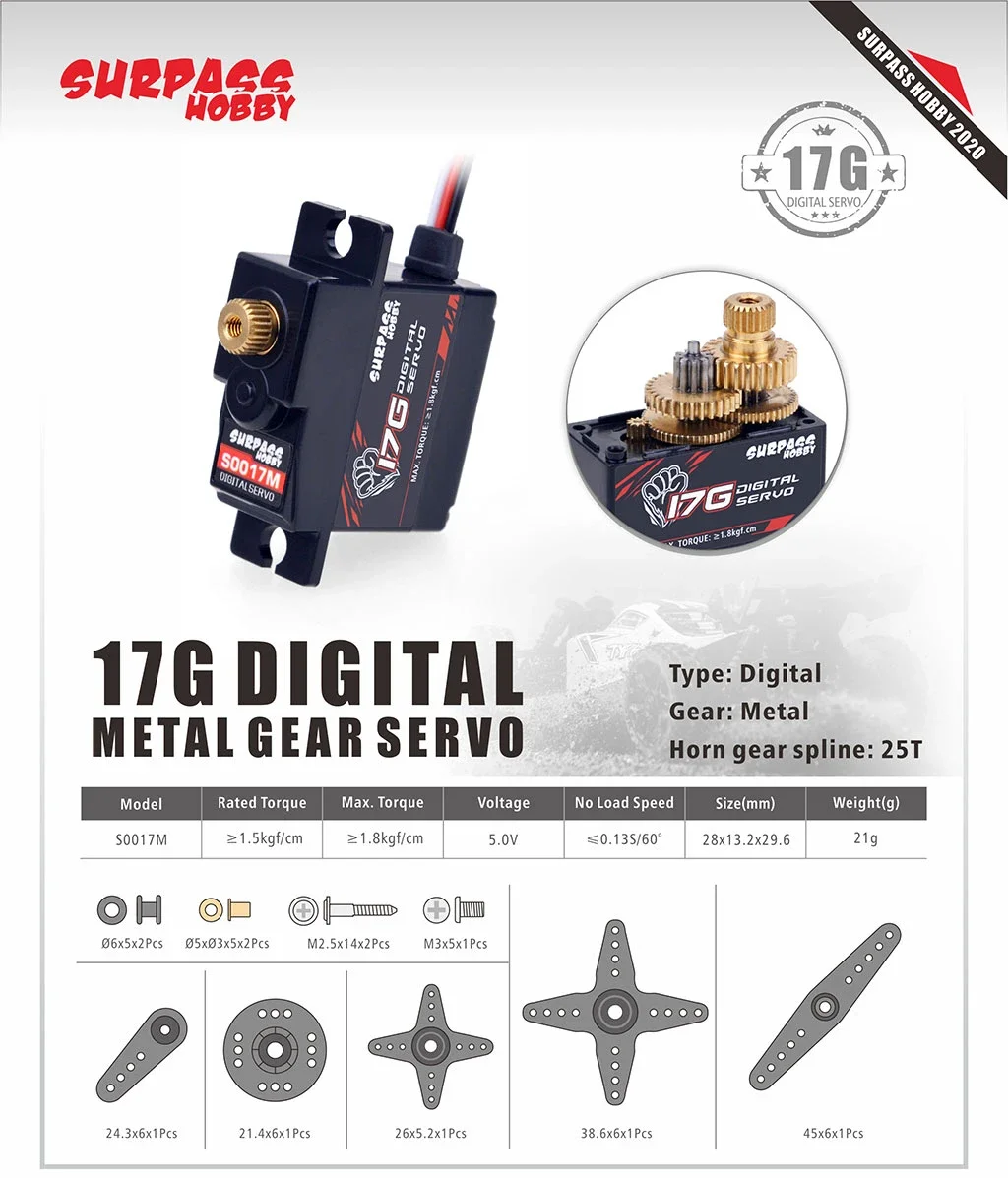

17g

Brand: SURPASS Hobby

Model: S0017M

Torque: 1.5kgf.cm at 4.8V; 1.8kgf.cm at 6V;

No load speed: 0.23s/60ﾂｰ at 4.8V; 0.20s/60ﾂｰ at 6V;

Product weight: 21g (0.74oz);

Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 ﾎｼ s / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

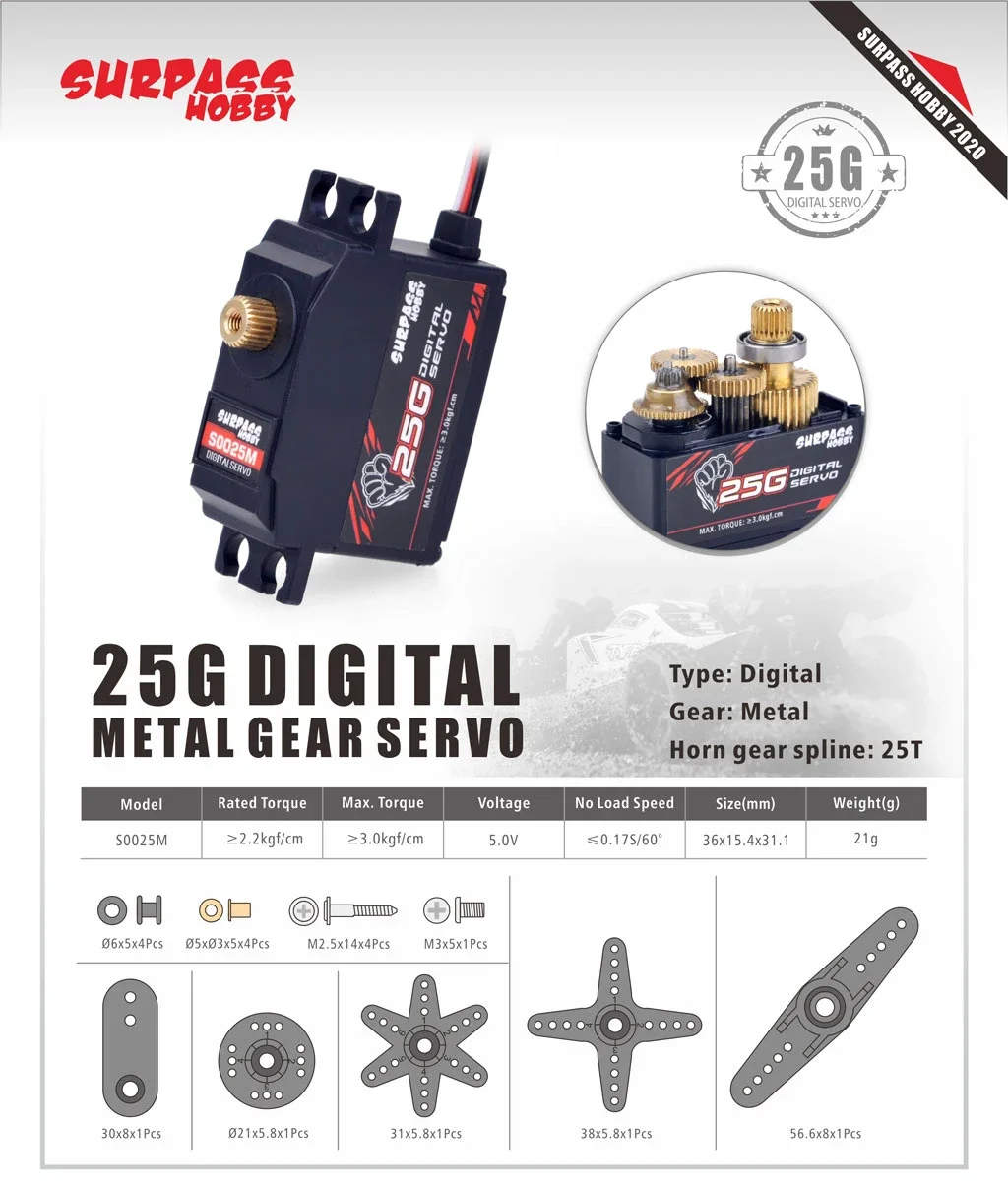

25g

Brand: SURPASS Hobby

Model: S0025M

Torque: 2.2kgf.cm at 4.8V; 3.0kgf.cm at 6V;

No load speed: 0.08s/60ﾂｰ at 4.8V; 0.06s/60ﾂｰ at 6V;

Product weight: 30g(1.05oz);

Boundary dimension: 36*15.4*31.1mm (1.41*0.60*1.22 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 ﾎｼ s / 333hz;

Motor type: core motor;

Gear type: Metal gear;

6kg

Brand: SURPASS Hobby

Model: S0600M

Torque: 7kgf.cm at 4.8V; 8kgf.cm at 7.4V;

No load speed: 0.20s/60ﾂｰ at 4.8V; 0.18s/60ﾂｰ at 6V;

Product weight: 37g (1.3oz);

Boundary dimension: 40.6*20.2*36.0mm (1.60*0.78*1.42 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 ﾎｼ s / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

15kg

Brand: SURPASS Hobby

Model: S1500M

Torque:15Kgf.cm at 6.0V; 23Kgf.cm at 7.4V;

No Load Speed:0.20s/60ﾂｰ at 6.0V; 0.18s/60ﾂｰ at 7.4V;

Weight:58g (2.11oz);

Outside Dimension:40.4*20.0*38.6mm (1.59*0.79*1.51 inch);

Working Voltage:6.0~7.4VDC;

Working Frequency:1520ﾎｼs/333Hz;

Motor Type:DC Motor DC motor;

Gears Type:Metal Gear;

Bearing Type:2BB

Package listing:

1PCS x Metal/Plastic gear servo

1PCS x Servo Arm Accessories
