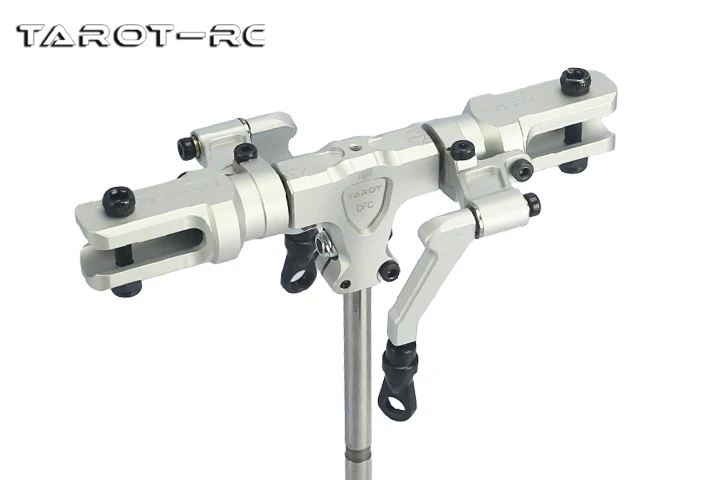

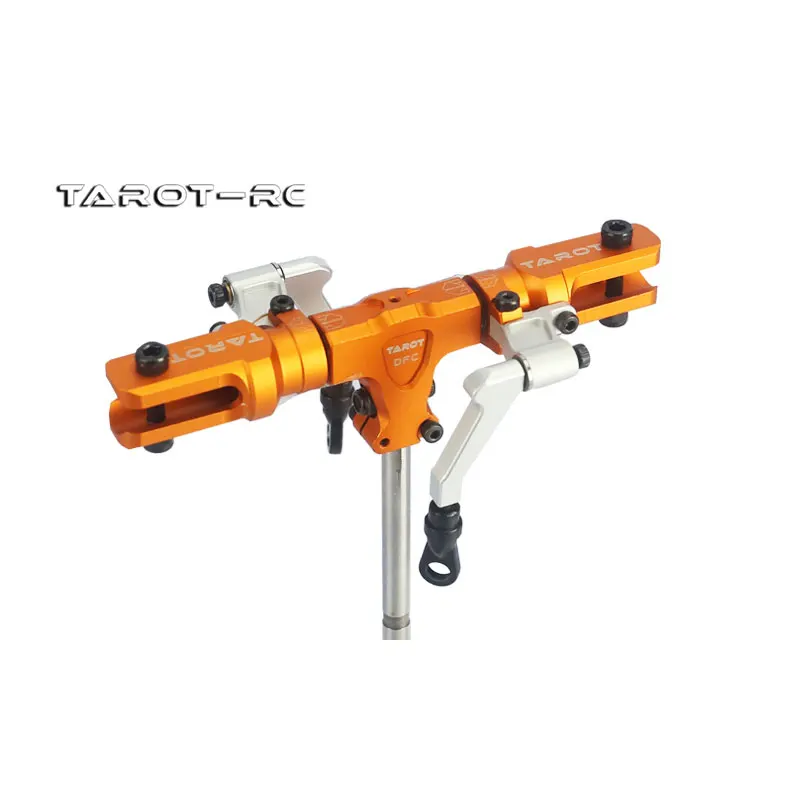

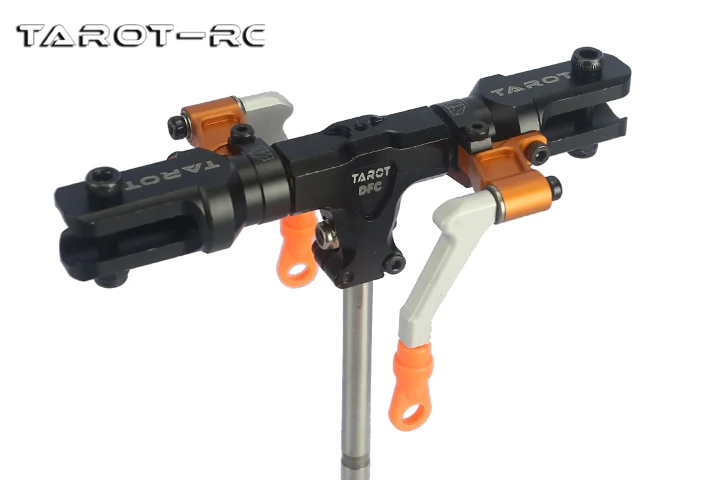

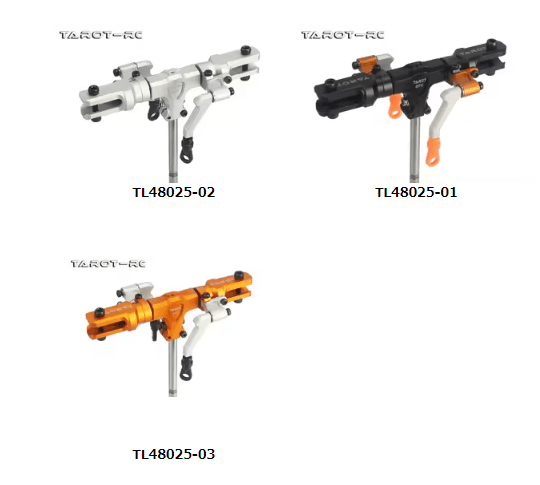

Tarot Helicopter Parts 450 Dfc Split Locking Main Rotor Head Assembly Set Tl48025-01 Black Tl48025-02 Silver Tl48025-03 Orange

Description

Product Descriptions:

· Applicable to TAROT450DFC (TL45162/TL48015) modified DFC rotor head

· Tilt rod structure design  the unique hinge design can partially balance rolling moment

· 6061-T6 aluminum alloy with CNC processed

· New design trapezoidal damper rubber applied

· Ultra-low C.G. and short main shaft design  the rotor level closed to the C.G. of whole vehicle

· New DFC main rotor housing applies 3 “V” type main shaft tightening design

· There are laser scale line on New DFC main rotor housing and on the top of main grip

· 85 degree hard rubber applied for DFC damper  metal Main Rotor Holder with larger size bearing moves trust bearing inside

· New looseness-proof feathering shaft with tensile-resistance design applies 480 size

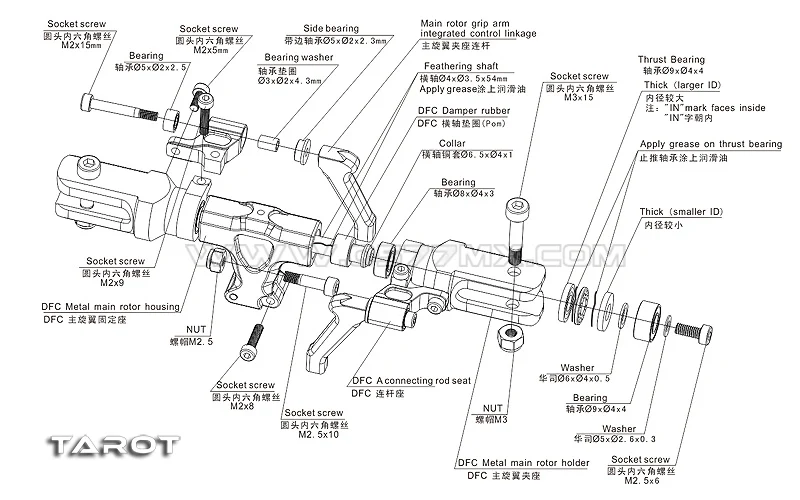

· Please note when you install thrust bearing  the large diameter one shall be installed closed to the hub (“IN” mark faces inside) to transmit the pulling force smoothly. And the one with ball bearing faces  inside to avoid lubricants spilled out.

·Package without swashplate

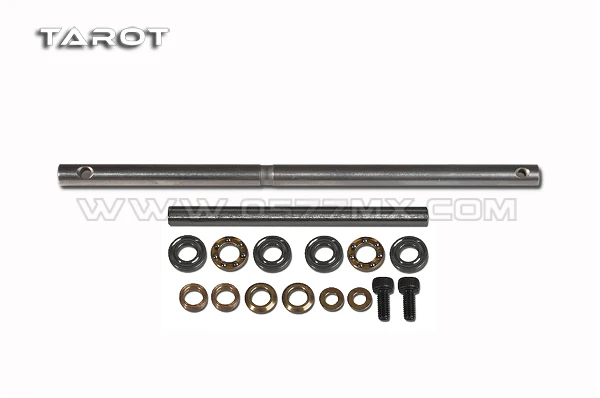

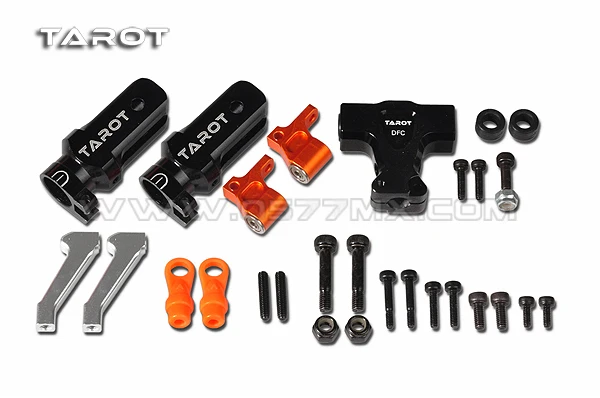

Specifications:

· 450DFC Main Rotor Housing Set/ Sliver x 1

· 450DFC Main Shaft x 1 (108MM)

· 450 DFC Head Damper x 2(Φ4xΦ7.0×4.0mm)

· 450 DFC Main Shaft Screw x 1(M2.5 x10.5mm)

· M2.5 Nylon Lock Nut x 1

· Metal Main Rotor Holder with big-size bearing × 2

· Bearing × 2(Φ4.0xΦ8×3.0mm)

· Thrust Bearing × 2(Φ4.0xΦ9×4.0mm)

· Washer × 2(Φ4xΦ5.9×0.5mm)

· Bearing × 2(Φ4.0xΦ9×4.0mm)

· Washer × 2(Φ2.5xΦ4.5×0.3mm)

· 12.9 Degree M2.5*15MM Cup Head Hexagon Collar Screw× 2

· Cup Head Hexagon Collar Screw ×2(M3×15MM)

· M3 Nylon Lock Nut ×2

· 450 DFC New Feather Shaft TL48009 (Φ4.0×54.0mm) × 1

· 450DFC Main Rotor Holder Extension Arm× 2

· Flange Bearing x 2(Φ2xΦ5×2.5mm)

· Plain Bearing x 2(Φ2xΦ5×2.5mm)

· M2.0 Cup Head Hexagon Screw x 2(M2.0x9mm)

· M2.0 Cup Head Hexagon Screw x2 (M2.0x5mm)

· 450 Metal DFC Tilt Rod x 2

· M2.5 Set Screw x 2 (M2.5x10mm)

· 500 DFC Main Rotor Ball Link TL50186 x 2

· M2.0 Cup Head Hexagon Collar Screw x 2 (M2.0x15mm)

Related Acc :

· TL48009/TL48013/TL48018/TL48026/TL48027/TL45000/TL45167

You may also like:

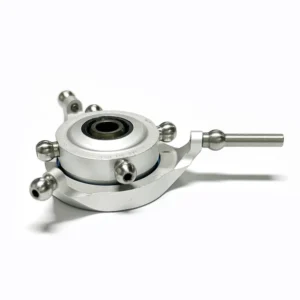

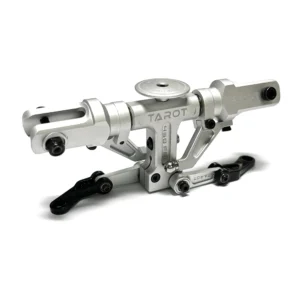

[silver swashplate] Tarot 450 Flybarless Helicopter Main Rotor Head Black For Align Trex 450 Helicopter TL45110-07 [main shaft] Tarot 450 Flybarless Helicopter Main Rotor Head Black For Align Trex 450 Helicopter TL45110-07 [black swashplate] Tarot 450 Flybarless Helicopter Main Rotor Head Black For Align Trex 450 Helicopter TL45110-07 [D] Tarot 450 Flybarless Helicopter Main Rotor Head Black For Align Trex 450 Helicopter TL45110-07 [C] Tarot 450 Flybarless Helicopter Main Rotor Head Black For Align Trex 450 Helicopter TL45110-07 [B] Tarot 450 Flybarless Helicopter Main Rotor Head Black For Align Trex 450 Helicopter TL45110-07 [A] Tarot 450 Flybarless Helicopter Main Rotor Head Black For Align Trex 450 Helicopter TL45110-07 WHITE: STEAM 550DFC 600DFC Main Rotor Head Assembly MK55009 MK60009 Spare Parts Suit For Gartt ALIGN 550 DFC 600 DFC Helicopter ALIGN 450 Helicopter Carbon Fiber Main Blade 325mm Trex 450 ALZRC TAROT RC Helicopter parts Flywing FW450L V3 Rotor Head Quick Release Main Blade Holder Set FW450L V3 RC Helicopter Rotor Head Set FW450L metal Rotor head ALZRC 500 DFC Flybarless Helicopter Main Rotor Head Trex 500 DFC Helicopter [Metal rotor head] C189 MD500 RC Helicopter Spare Parts propeller motor rotor head main shaft swashplate servo receiver shell Landing gear remote
