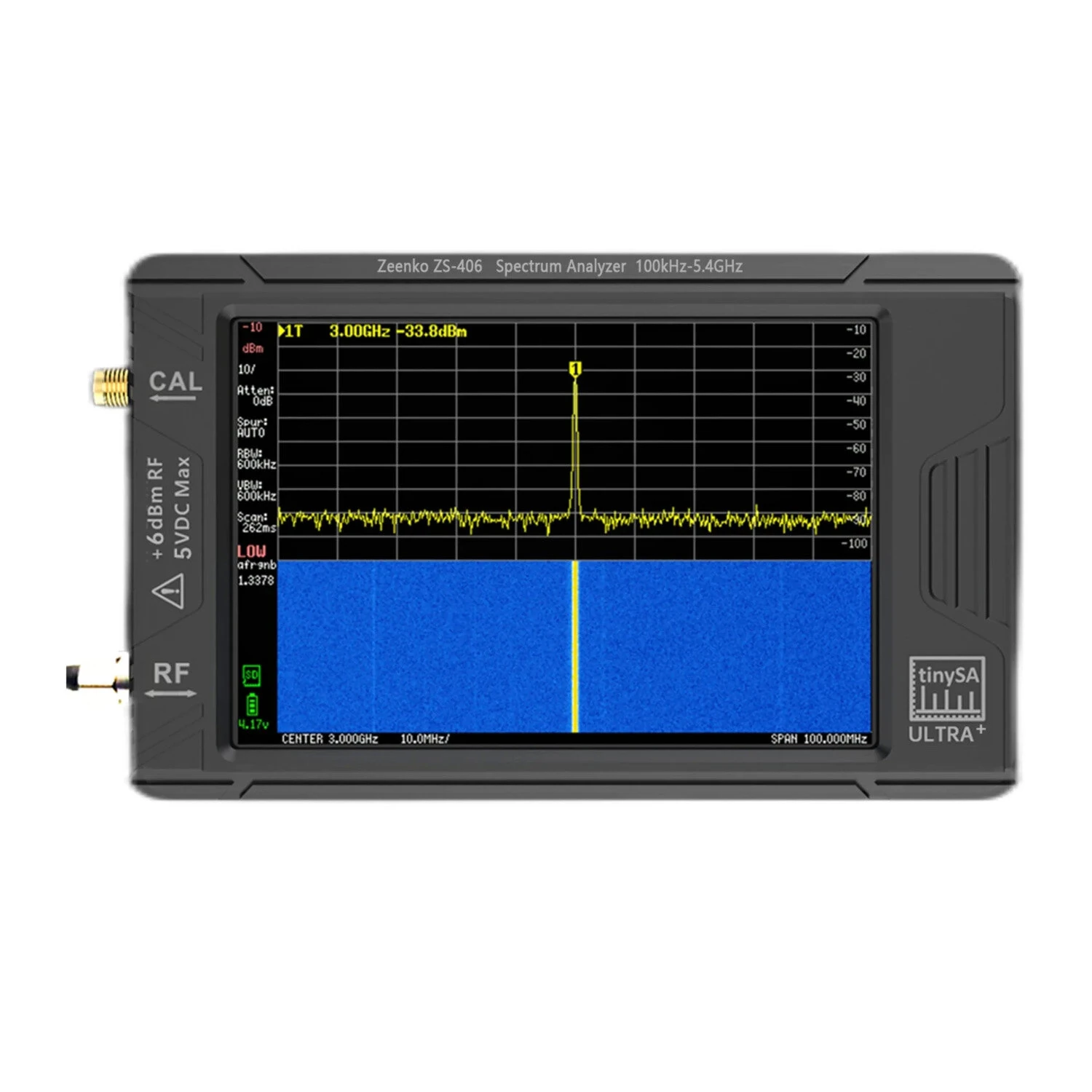

Tinysa ultra plus zs406 handheld spectrum analyzer 900mhz-5.4ghz 20db lna module 3.98 inch ips-tft lcd 5000mah battery portable analyzer

Description

Tinysa ultra plus zs406 handheld spectrum analyzer 900mhz-5.4ghz 20db lna module 3.98 inch ips-tft lcd 5000mah battery portable analyzer

Tinysa ultra plus zs406 handheld spectrum analyzer 900mhz-5.4ghz 20db lna module 3.98 inch ips-tft lcd 5000mah battery portable analyzer

Specifications:

– Display Size: 3.98” IPS-TFT LCD (480×320)

– Max Low Input Frequency: 900MHz

– Max High Input Frequency: 5.4GHz in Ultra mode

– Resolution filters in 1 3 10 steps: From 200Hz to 850kHz

– Max Output Frequency: Sinus up to 900MHz Square waves up to 4.4GHz

– Output Level:  -115dBm to -19dBm

– Ultra Mode: Level calibrated up to 6GHz

– Internal LNA Gain: 20dB up to 4GHz

– Displayed Points per Scan: Max 450

– 0-350MHz Scan Time: 165ms

– Shortest Zero Span Time: 14 ms for 450 points

– DANL at 100MHz: -153dBm/Hz (LNA Off) -169dBm/Hz (LNA On)

– DANL Degrading in Ultra Mode: 5dB above 3GHz 20dB above 5.4GHz

– Phase Noise at 10kHz Offsets: -92dBc/Hz

– Phase Noise at 100kHz Offsets: -108dBc/Hz

– Input 1dB Compression Level: +0.5dBm (LNA Off) -26.5dBm (LNA On)

– IIP3 Without LNA: +18dBm (at 2MHz apart) 0dBm (500Hz apart)

– IIP3 With LNA: -8dBm (at 2MHz apart)

– Frequency Stability: <1ppm (-10℃ ~ +55℃) – SD Card Slot: Micro SD card – Audio Out: 3.5mm headphone plug – FW Update Mode Activation: Push jog button before switch on – Maximum Current Consumption: 350mA – Maximum Charging Current: 1300mA – Battery: Li-polymer 3.7V 5000mAh – RF Connectors: SMA Female – Communication Interface: USB-CDC(Type-C) UART-TTL(2.54mm Connector) – Appearance Size: 117x72x23mm (Excluding protruding parts)   Features: 1. Broad Frequency Range: Operates from 900MHz up to 5.4GHz in Ultra mode allowing for extensive testing and analysis capabilities in a compact device.    2. High-Resolution Display: Features a 3.98” IPS-TFT LCD (480×320) screen providing clear and precise vision feedback for better data analysis. 3. Internal LNA Gain: Boosts signal up to 20dB for enhanced signal clarity and performance even in demanding environments. 4. Extended Battery Life: Powered by a robust 3.7V 5000mAh Li-polymer battery ensuring prolonged operational time without frequent recharges. 5. Compact and Portable: With dimensions of 117x72x23mm it is designed for convenience and ease of use making it ideal for professionals on the go.   Package Included: 1 x TinySA ULTRA Plus ZS406 Spectrum Analyzer
