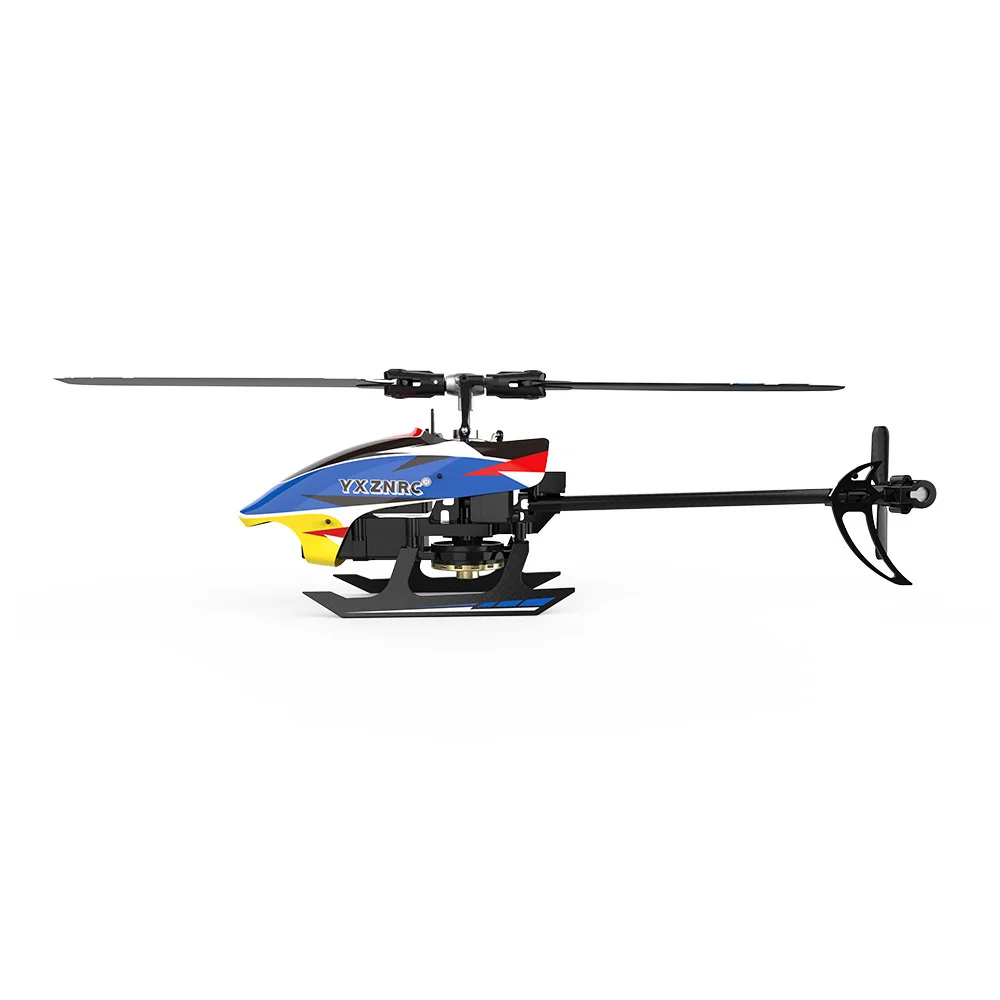

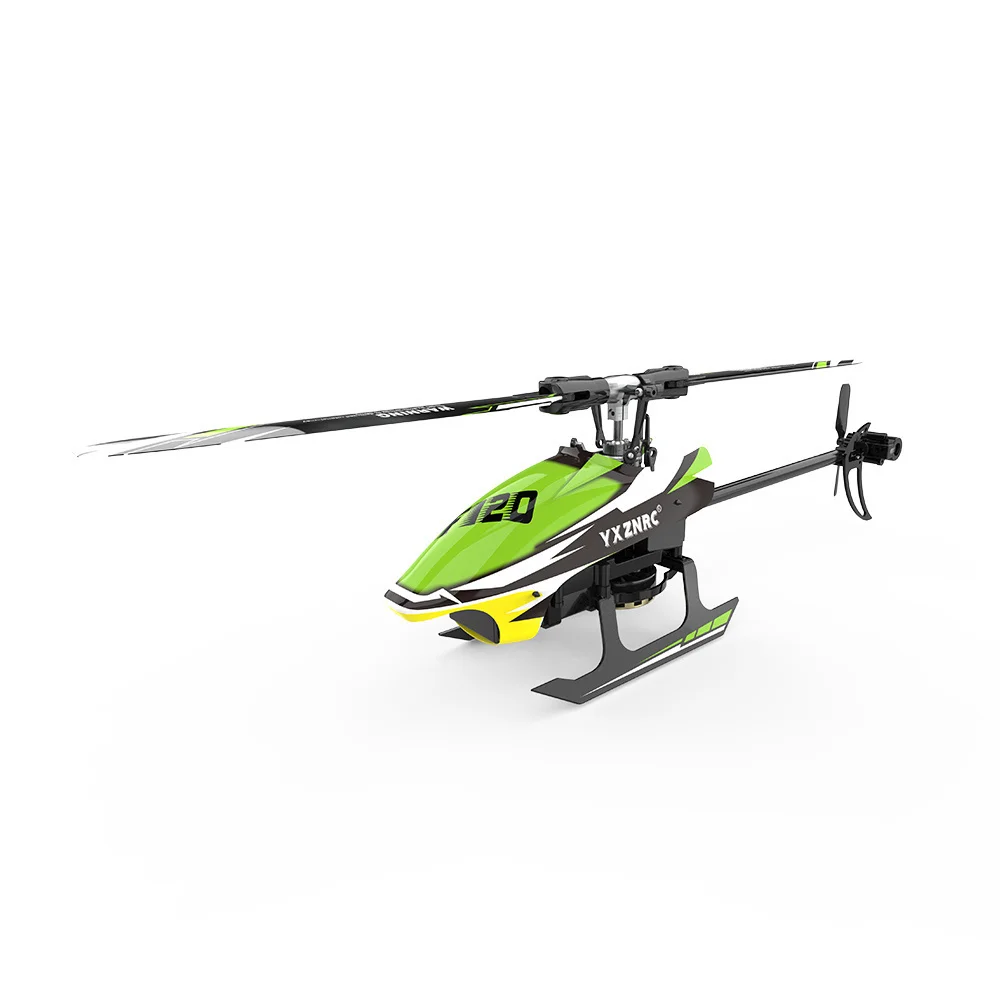

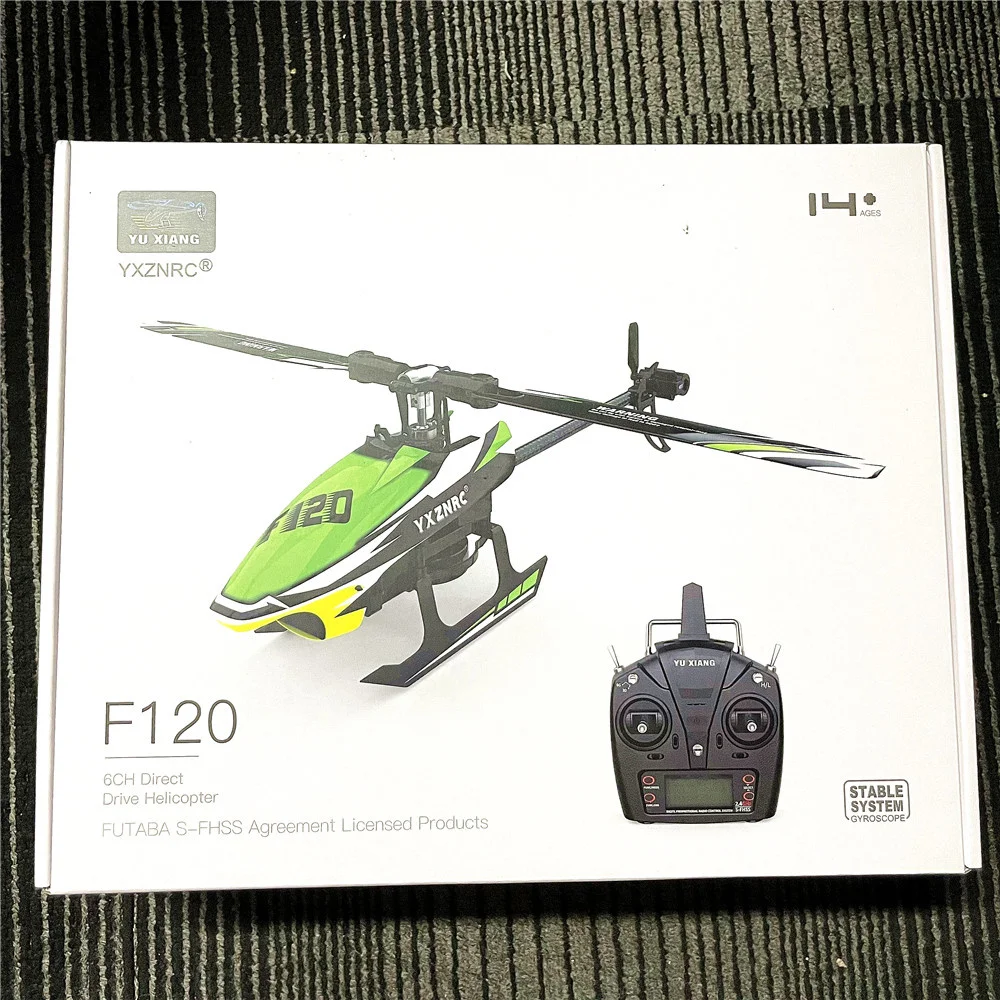

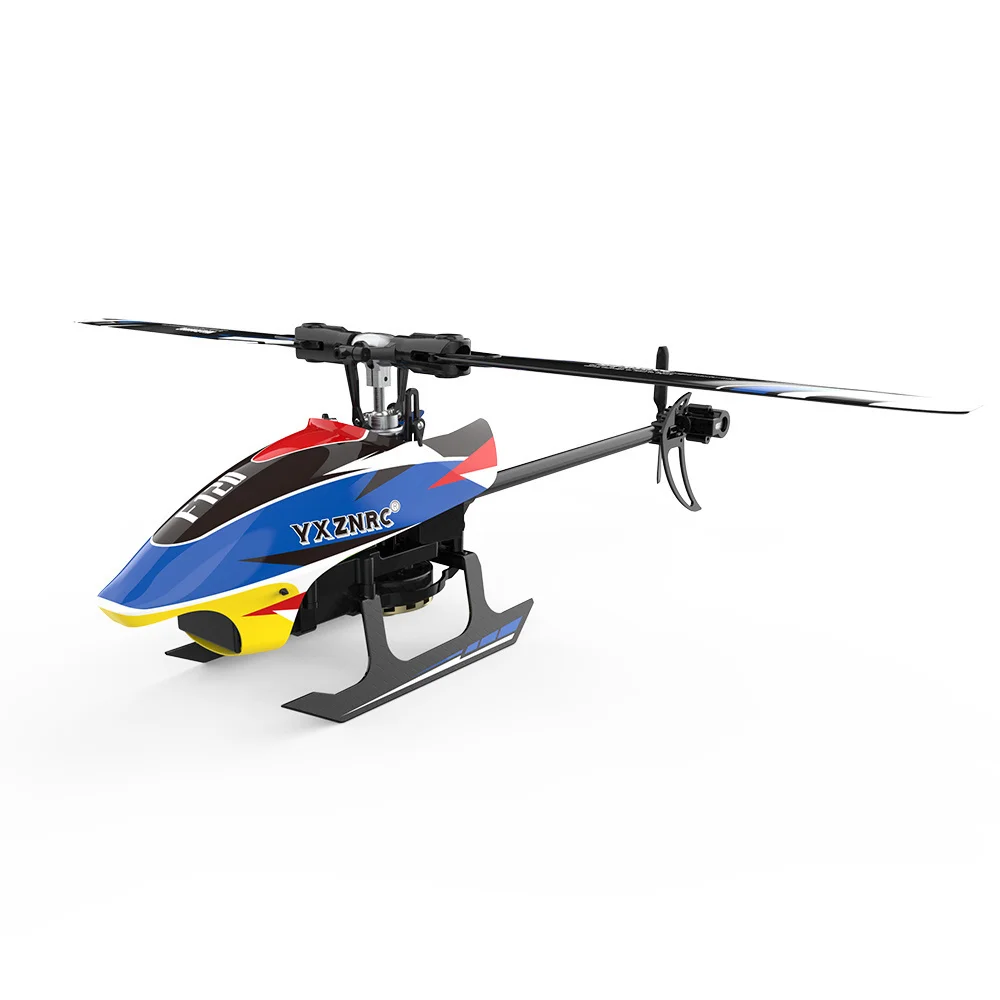

YUXIANG F120 BNF (Without Remote Controller ) 6CH 3D6G Brushless Flybarless RC Helicopter Compatible With FUTABA S-FHSS

YUXIANG F120 6CH 3D6G Brushless Flybarless RC Helicopter  BNF (without Remote Controller ) Compatible With FUTABA S-FHSS

Brand: YUXIANG

Item: F120

Product size (cm):

Rotor diameter:290mm

Body length: 265mm

Height:88mm

Weight:128g

Radio Frequency Band: 2.4GHz

Remote control distance (m): more than 120 meters

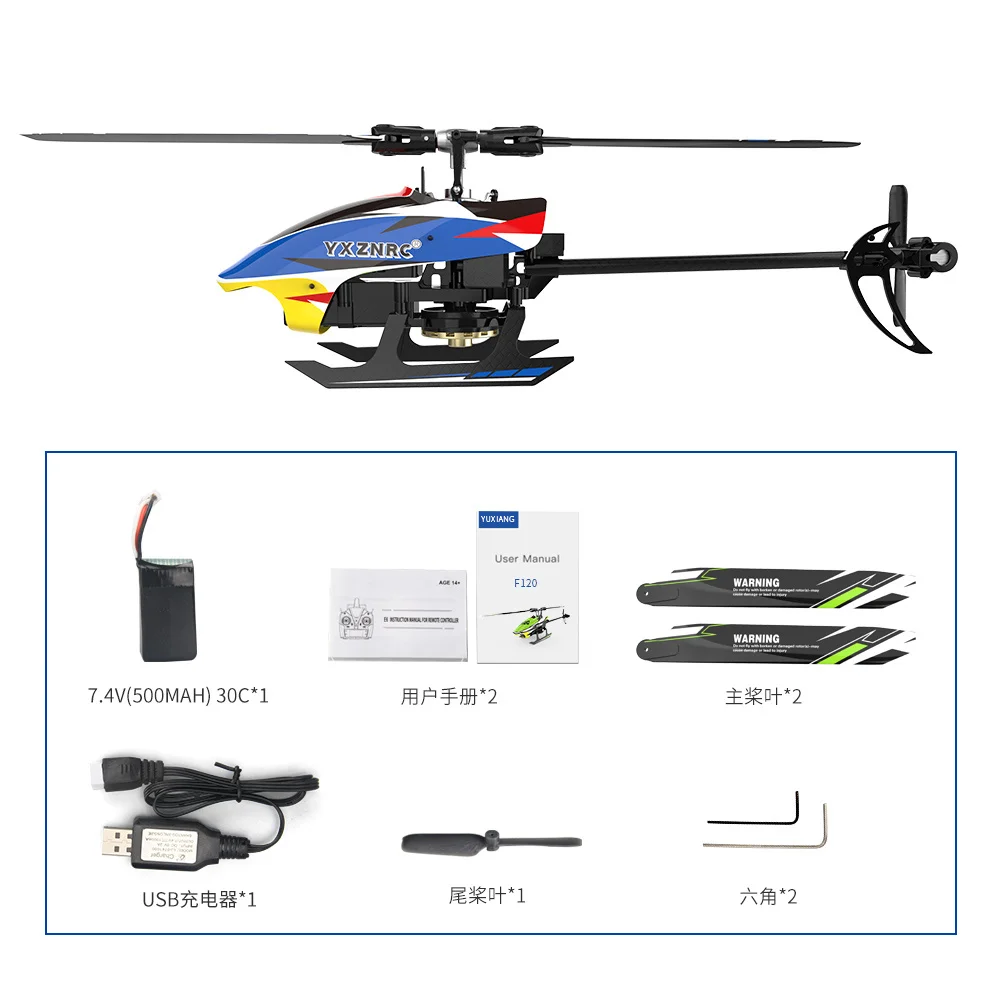

Battery:LI-POLY 7.4V(500MAH) 30C

Charging time: about 90 minutes

Use time: 5-8 minutes

Violent 3D flight: 3-4 minutes

Function Description:

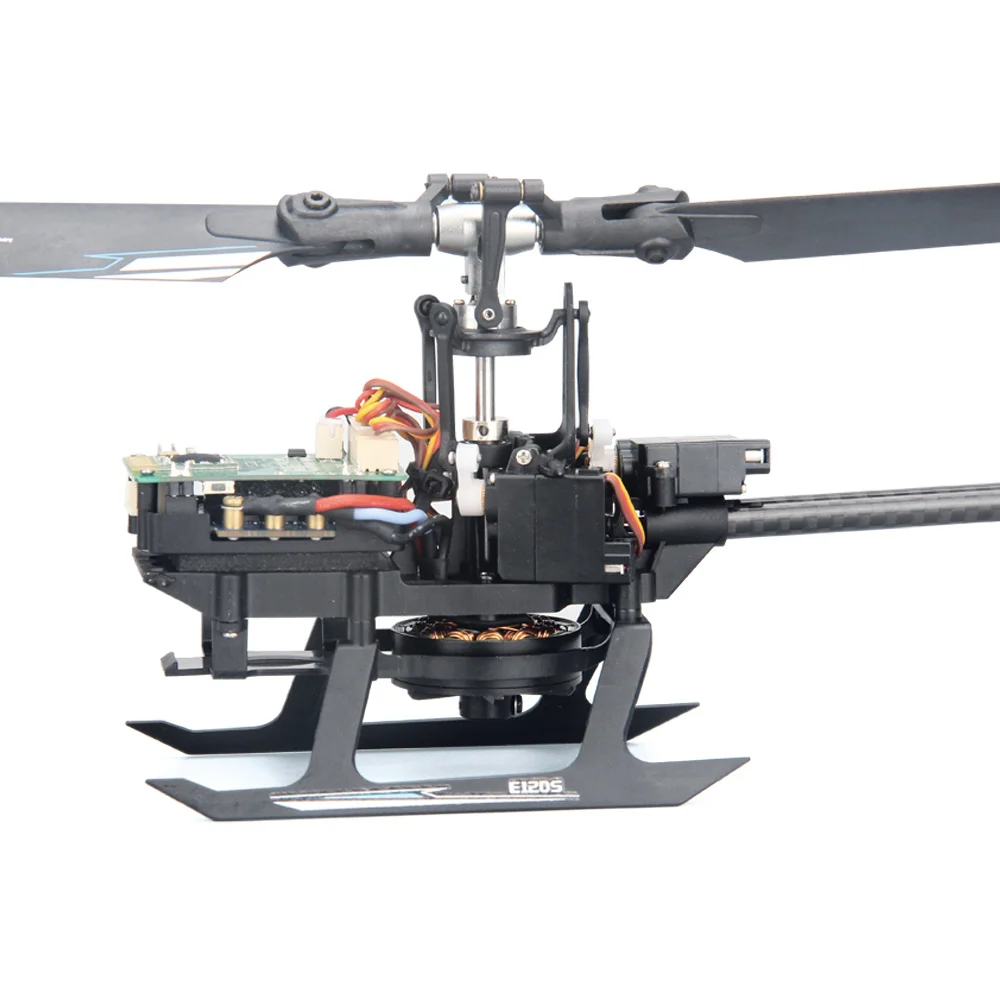

1>The smallest and most compact micro-helicopter currently on the market; it adopts flybarless design direct drive of the main motor electronic stabilization system more accurate feel more stable flight and optimized structure to reduce the probability of damage.

2>The propeller is designed with aerodynamic principles providing strong power and self-stability of the body. It has high efficiency power saving and long flight time. The blade is made of nylon + carbon fiber composite material which has high strength good toughness impact resistance no deformation and durable.

3> Use 2405 brushless motor for direct drive to reduce gear agitation with low noise large torque sufficient power and high efficiency.

4> The lock tail motor uses a special 8520 hollow cup motor which has high temperature resistance.

5> Using 2g metal digital steering gear high torque high precision and accurate return to the center the response speed of 60°/0.05ms makes the aircraft fly accurately with good feel and longer life.

6> Using 6-axis gyroscope. It has a stable fast and precise flight attitude especially suitable for beginners to fly.

7> Adopt 2.4GHZ communication protocol expandable satellites receiver Support DSMX DSM2 PPM S-BUS standard.

8> Rotor head Rotor clip Swashplate Optimize the structure reduce the weight and greatly reduce the probability of aircraft damage.

9> Landing gear The main frame is made of PA12 carbon fiber composite material which has the characteristics of high strength high toughness non-deformation and impact resistance ensuring the flight accuracy and durability of the whole aircraft.

10> The block design reduces the user's cost of use while ensuring the structural strength. It has the characteristics of high strength and easy maintenance.

11> Standard six-channel remote control with LCD screen battery prompt digital parameter adjustment simulator function optimized joystick output more precise operation.

12> Professional customized high rate lithium polymer 7.4V 500mah 30C battery high discharge rate long service life flight time of about 5-8 minutes normal use can reach 500+ cycles.

13> Dedicated USB 7.4V lithium battery charger with charge balance and charge stability function.

14> The horizontal axis is thicker than similar products in the market which increases the crash resistance and prolongs the service life.
